Source photo: www.EIB3D.com

Miniature circuit breaker 1-p B6A DLS 6H B6-1 6 kA

EAN/GTIN: 4014712161726
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: DLS 6H B6-1 6 kA
Manufact.-SKU: 09914019
Customs tariff no.: 85362010
Similar top items: Show now & compare
4,19 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 1-p B6A Release characteristic B, Number of poles (total) 1, Number of protected poles 1, Rated current 6A, Rated voltage 230V, Rated insulation voltage Ui 2V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0kA, Voltage type AC/DC, Frequency 16,67 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 68,7mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 55°C, Connectable conductor cross section multi-wired 1,5 ... 25mm², Connectable conductor cross section solid-core 0,5 ... 25mm²

More product images:

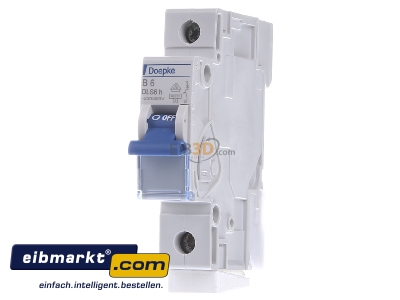

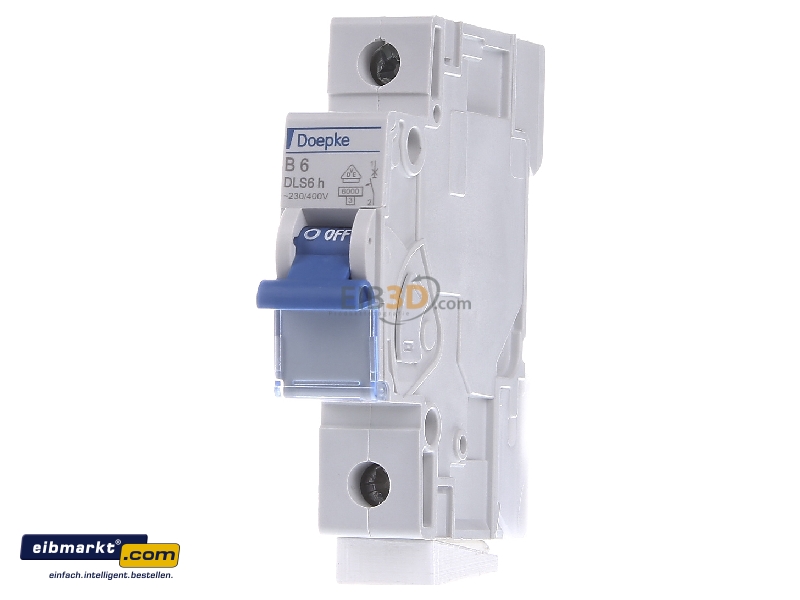

Front view Doepke 09914019 Miniature circuit breaker 1-p B6A
Front view

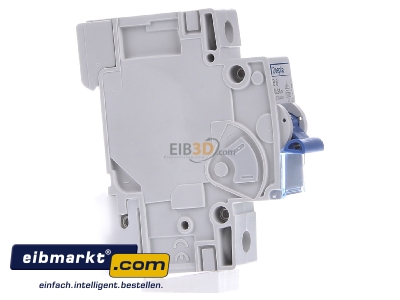

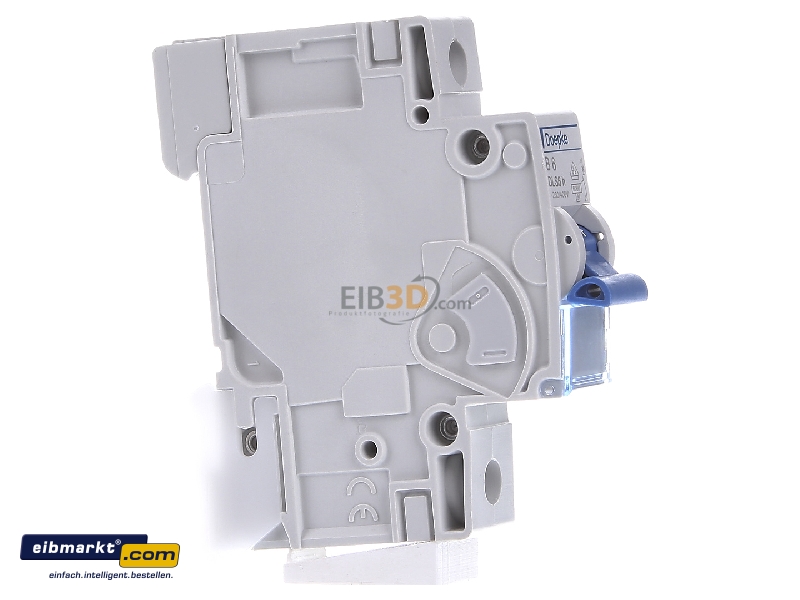

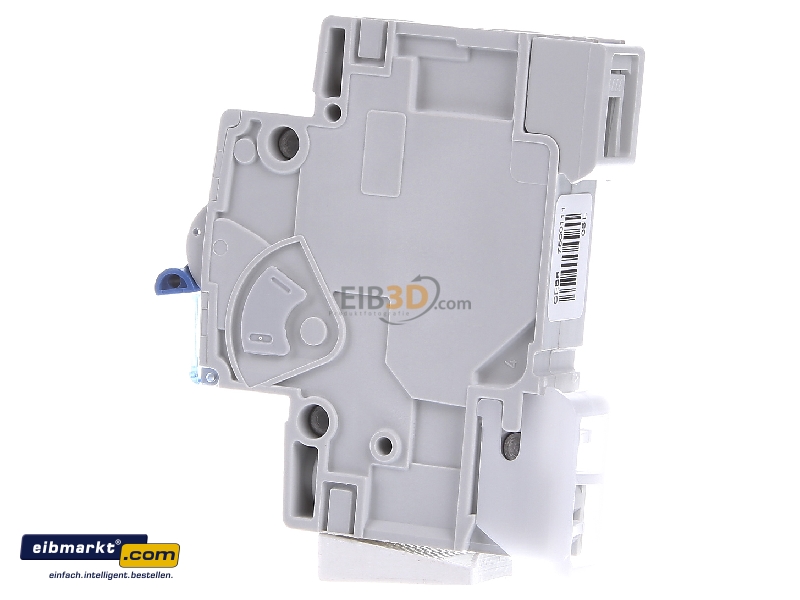

View on the left Doepke 09914019 Miniature circuit breaker 1-p B6A
View on the left

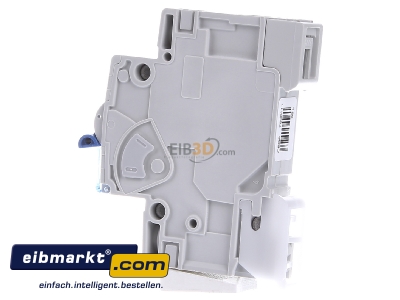

View on the right Doepke 09914019 Miniature circuit breaker 1-p B6A
View on the right

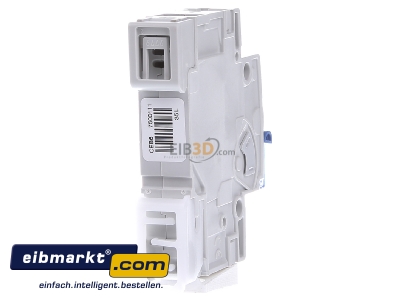

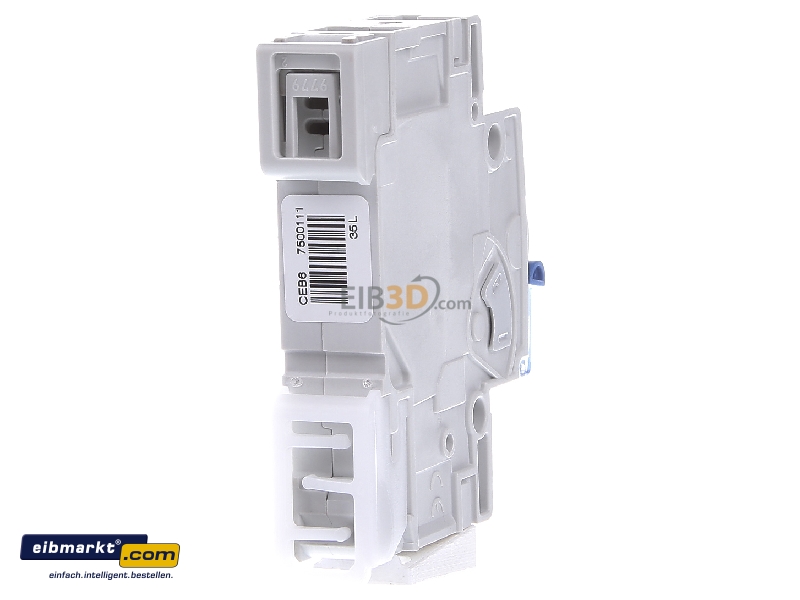

Back view Doepke 09914019 Miniature circuit breaker 1-p B6A
Back view

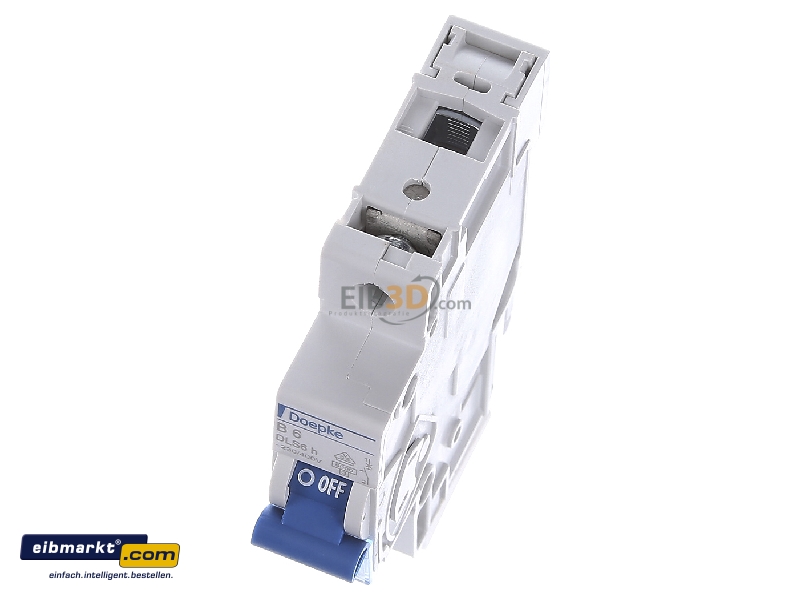

View up front Doepke 09914019 Miniature circuit breaker 1-p B6A
View up front

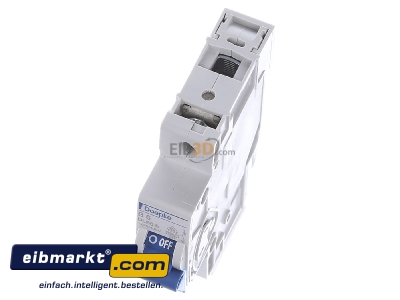

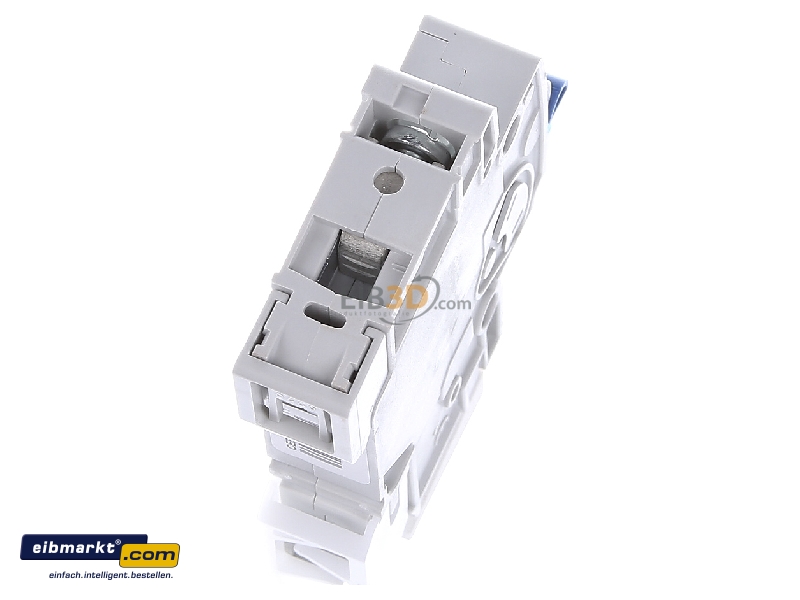

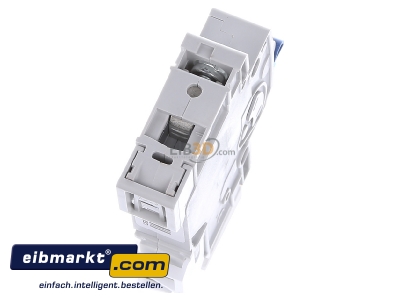

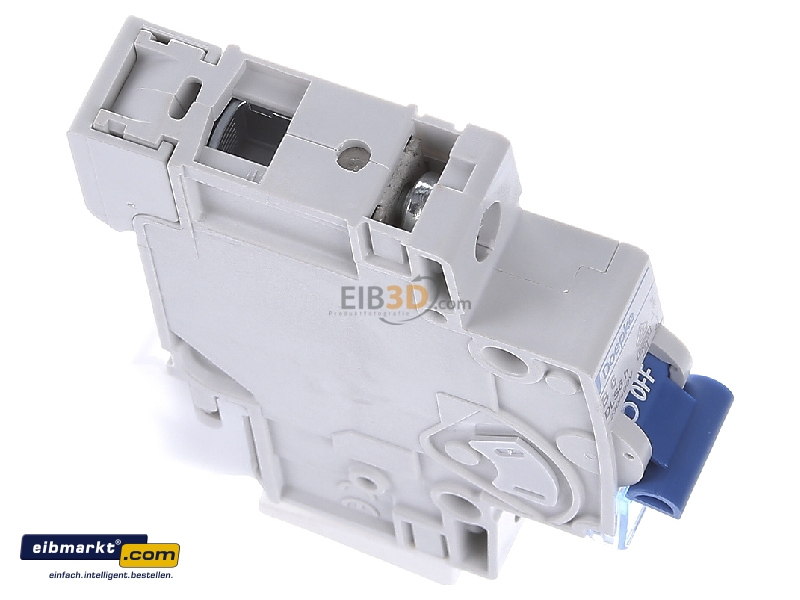

View top left Doepke 09914019 Miniature circuit breaker 1-p B6A
View top left

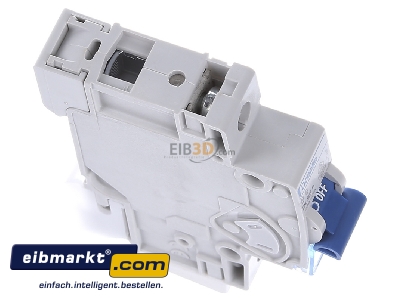

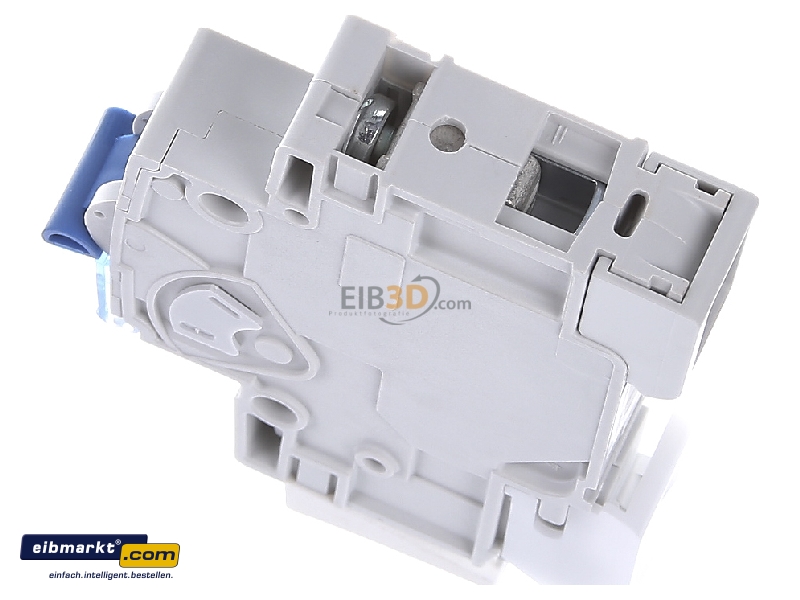

View top right Doepke 09914019 Miniature circuit breaker 1-p B6A
View top right

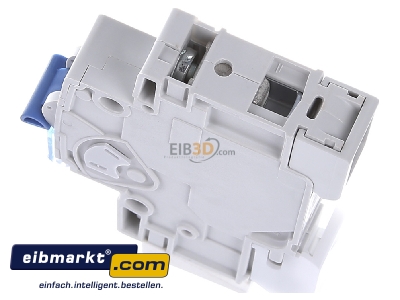

Top rear view Doepke 09914019 Miniature circuit breaker 1-p B6A
Top rear view

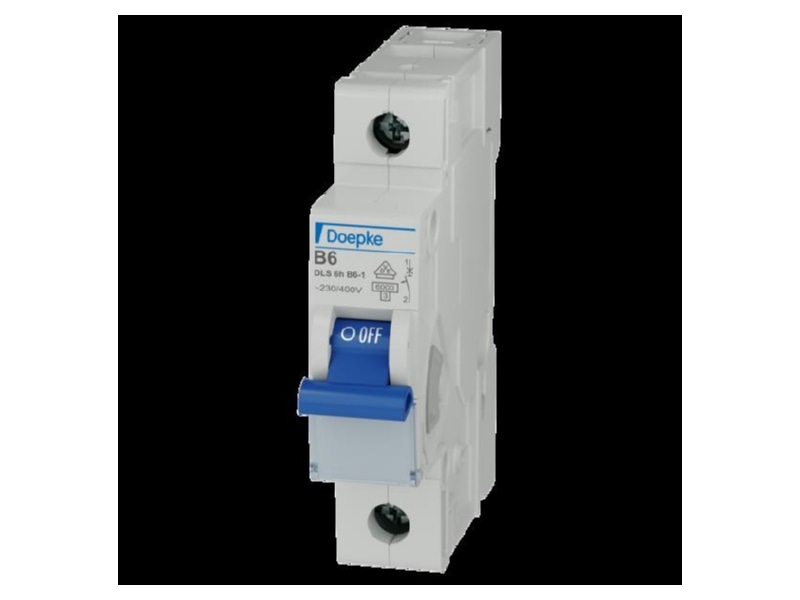

Product image Doepke DLS 6H B6 1 6 kA Miniature circuit breaker 1 p B6A
Product image

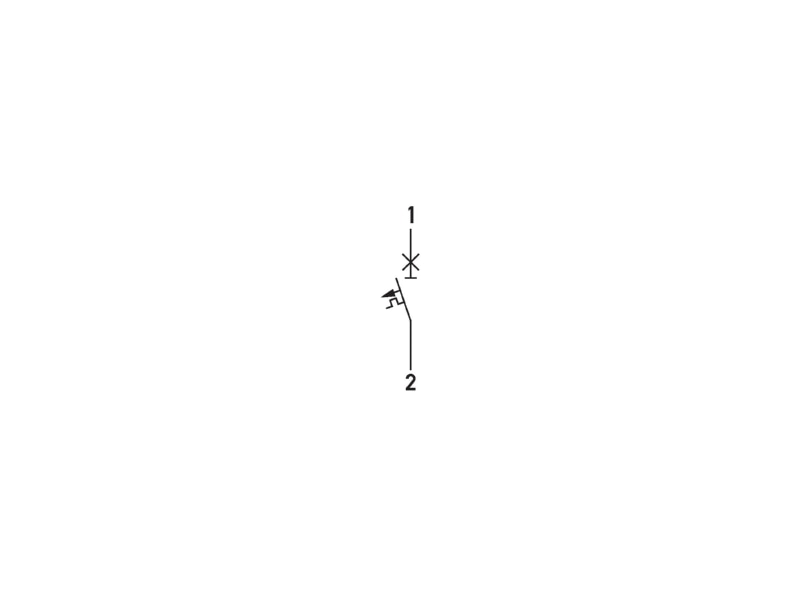

Circuit diagram Doepke DLS 6H B6 1 6 kA Miniature circuit breaker 1 p B6A
Circuit diagram

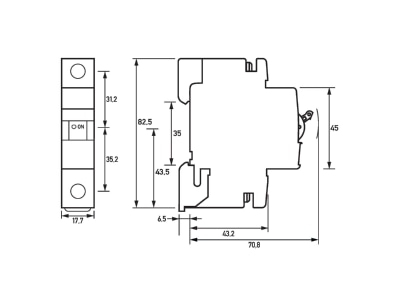

Dimensional drawing Doepke DLS 6H B6 1 6 kA Miniature circuit breaker 1 p B6A
Dimensional drawing
