Load shedding relay 6,7...39A RLR 1

EAN/GTIN: 4014712076686
WEEE: DE 85624250
Manufacturer: Doepke
Manufacturer no.: RLR 1
Manufact.-SKU: 09980283
Customs tariff no.: 85363030
Similar top items: Show now & compare
15,35 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Load shedding relay 6,7...39A Rated voltage 400V, Rated current Iu 6,7 ... 39A, Just-operate current 3,1 ... 5,3A, Max. time-delayed switch-off 20ms, Max. continuous current 43A, Number of contacts as normally open contact 0, Number of contacts as normally closed contact 1, Number of contacts as change-over contact 0, Rated current (control contacts) 1A, Max. switching voltage (control contacts) 400V, Max. switching power (control contacts) 250VA, Electrical lifespan (control contacts) 1000000c (contacts), Mechanical lifetime (control contacts) 100000000c (contacts), Max. electrical switching cycles 1800c/h, Voltage type AC, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 60mm, Degree of protection (IP) IP40

More product images:

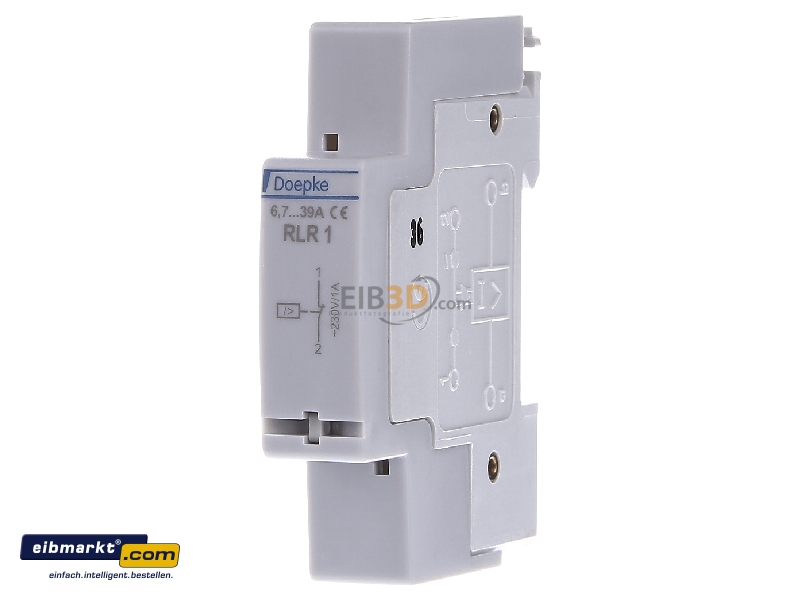

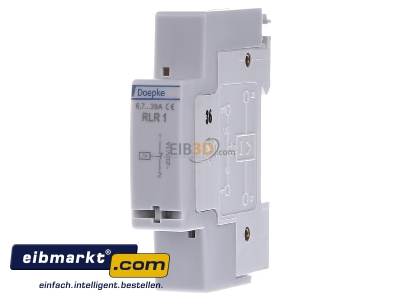

Front view Doepke 09980283 Load shedding relay 6,7...39A
Front view

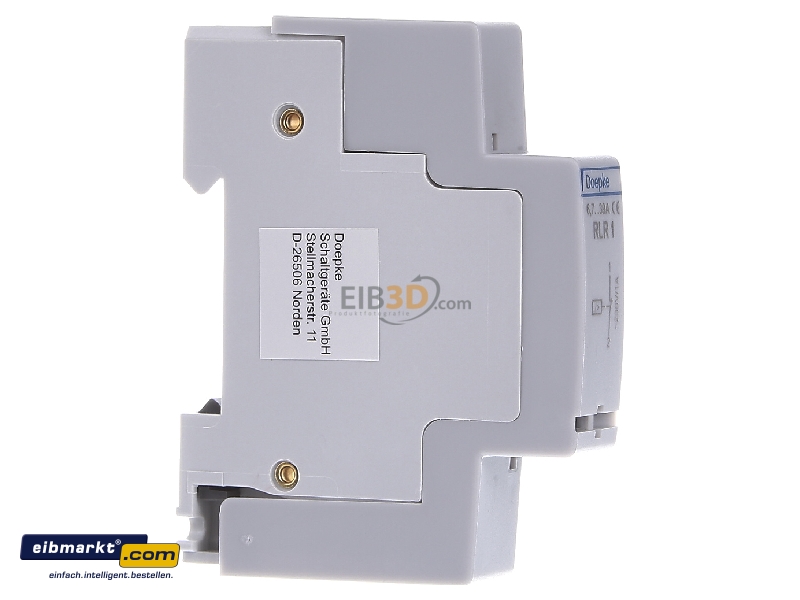

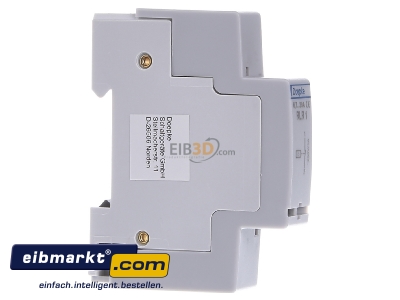

View on the left Doepke 09980283 Load shedding relay 6,7...39A
View on the left

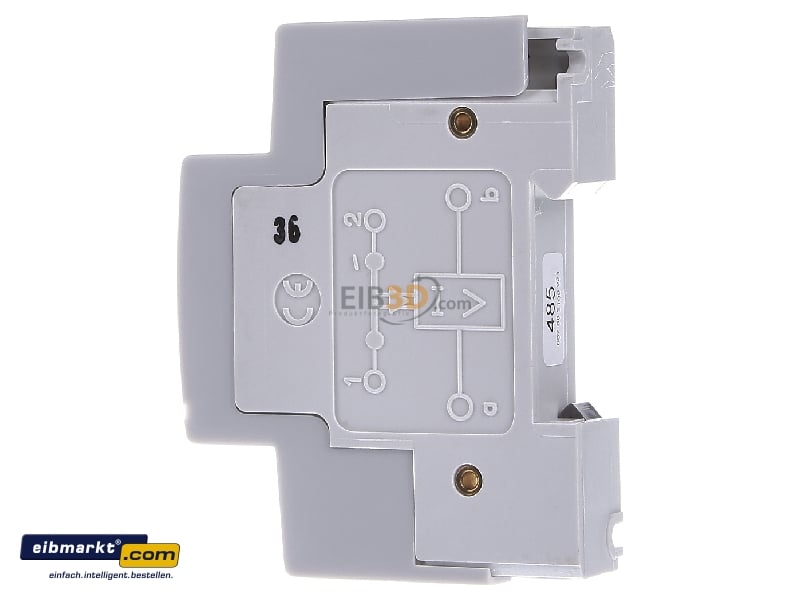

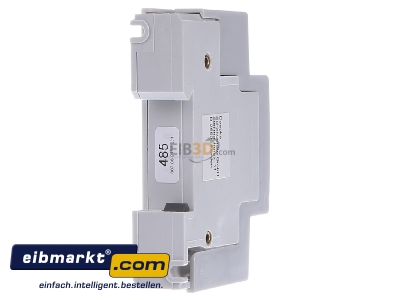

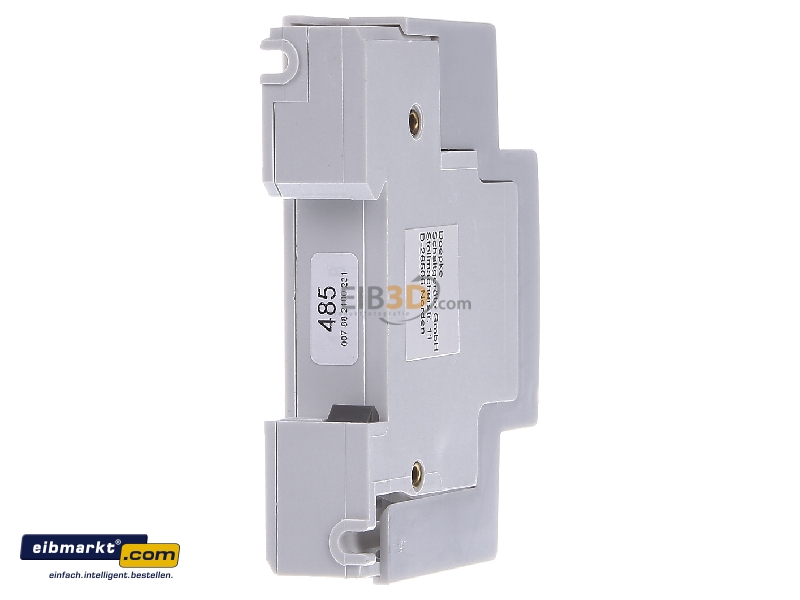

View on the right Doepke 09980283 Load shedding relay 6,7...39A
View on the right
Back view Doepke 09980283 Load shedding relay 6,7...39A
Back view

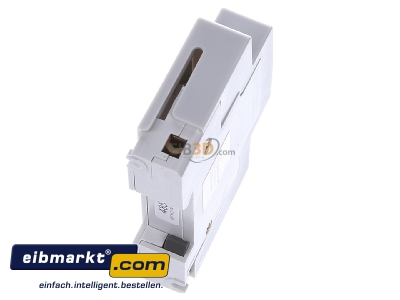

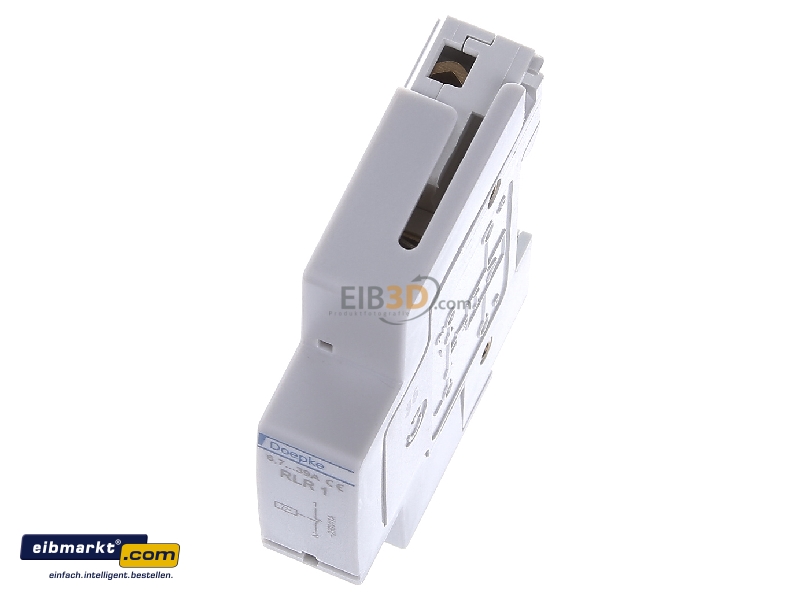

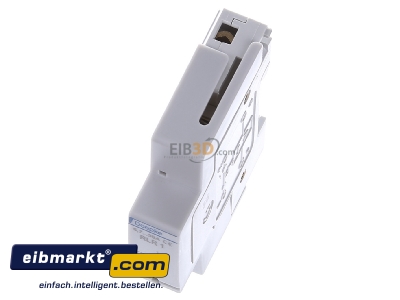

View up front Doepke 09980283 Load shedding relay 6,7...39A
View up front

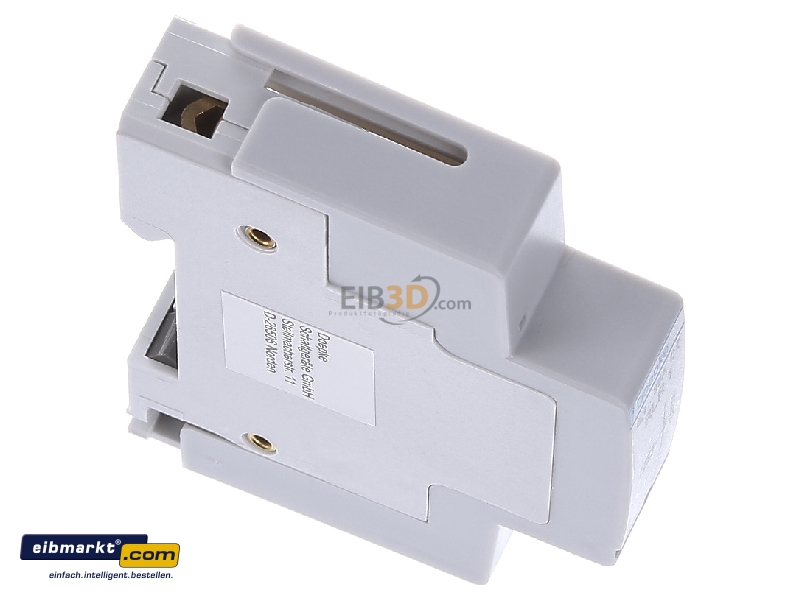

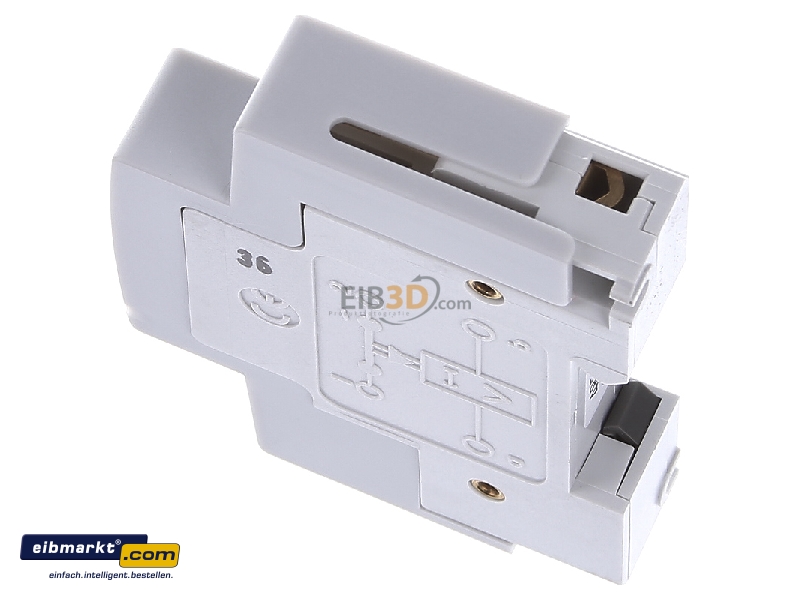

View top left Doepke 09980283 Load shedding relay 6,7...39A
View top left

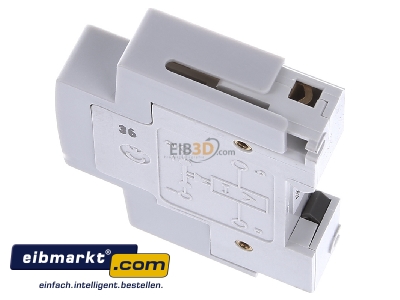

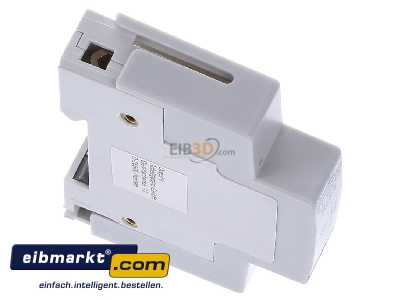

View top right Doepke 09980283 Load shedding relay 6,7...39A
View top right

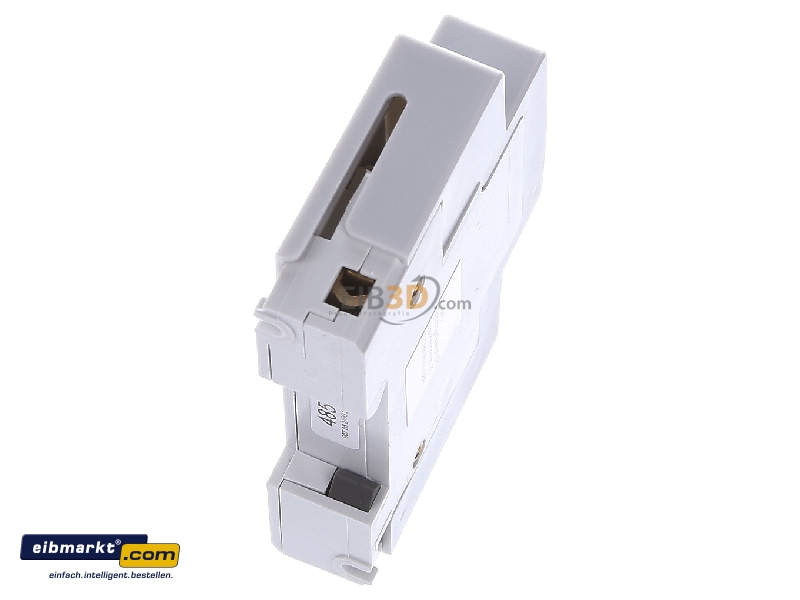

Top rear view Doepke 09980283 Load shedding relay 6,7...39A
Top rear view

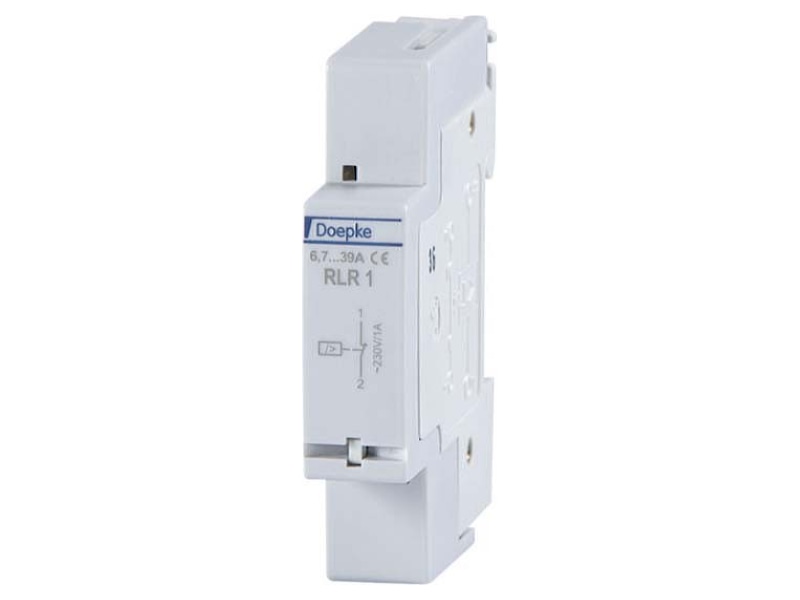

Product image Doepke RLR 1 Load shedding relay 6 7   39A
Product image

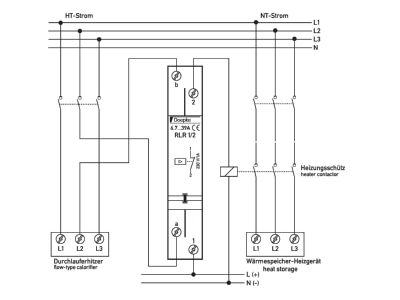

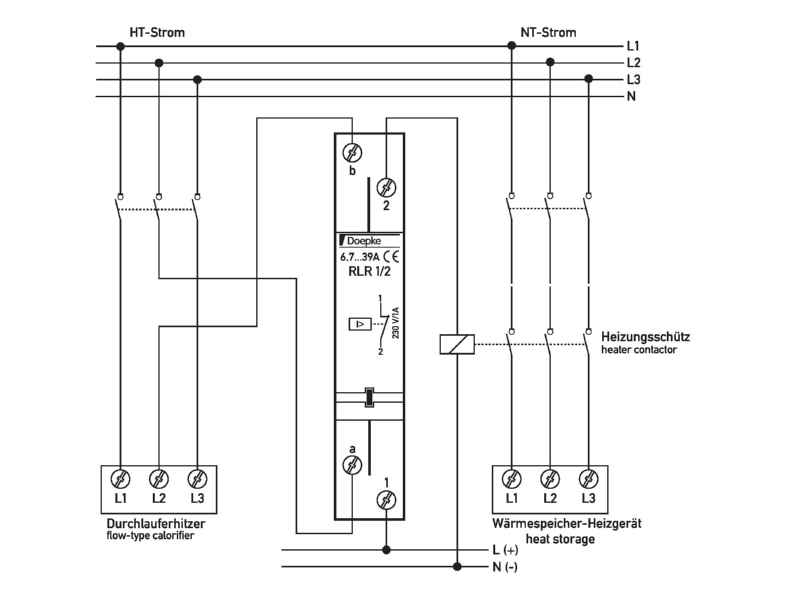

Circuit diagram Doepke RLR 1 Load shedding relay 6 7   39A
Circuit diagram

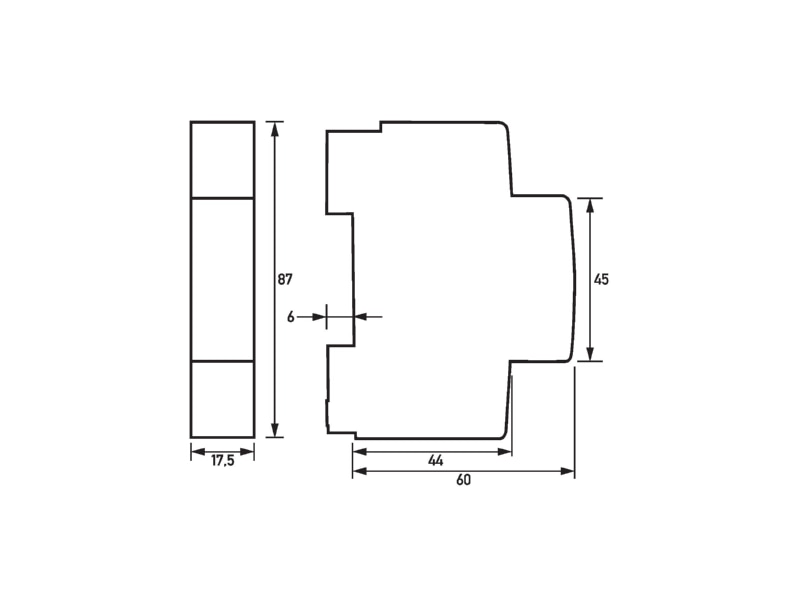

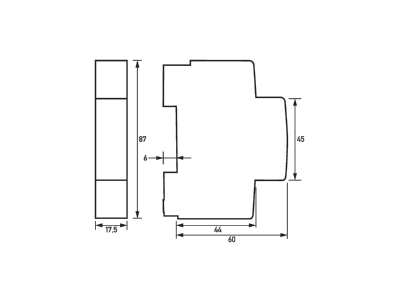

Dimensional drawing Doepke RLR 1 Load shedding relay 6 7   39A
Dimensional drawing
