Surge protection for power supply DG MP YPV 1200 FM
Source photo:
Dehn
(fig. might be different or similar)

Surge protection for power supply DG MP YPV 1200 FM

EAN/GTIN: 4013364495685
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: DG MP YPV 1200 FM
Manufact.-SKU: 942565
Customs tariff no.: 85354000
Similar top items: Show now & compare
84,49 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

System configuration DC=yes, System configuration IT=no, System configuration TN=no, System configuration TN-C=no, System configuration TN-C-S=no, System configuration TN-S=no, System configuration TT=no, System configuration other=no, Number of conductors (without earthing)=2, Nominal discharge surge current (8/20)=20 kA, Max. discharge surge current (8/20)=40 kA, Max. PV-voltage=1170 V, Voltage protection level=4 kV, Short-circuit breaking capacity (Isccr)=10 kA, Integrated short-circuit protection=no, Integrated backup fuse=no, Leakage-current free=no, Mounting method=DIN rail (top hat rail) 35 mm, Construction size=3 modular spacing, Max. conductor cross section solid (solid, stranded)=10 mm², Max. conductor cross section flexible (fine-strand)=10 mm², With remote signalling contact=yes, Signalling at the device=Optic, Category type 2=yes, Degree of protection (IP)=IP20

More product images:

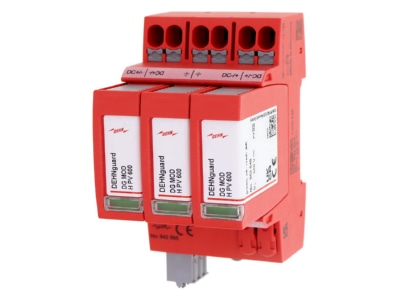

Product image 1 DEHN DG MP YPV 1200 FM Surge protection for power supply
Product image 1
Product image 2 DEHN DG MP YPV 1200 FM Surge protection for power supply
Product image 2

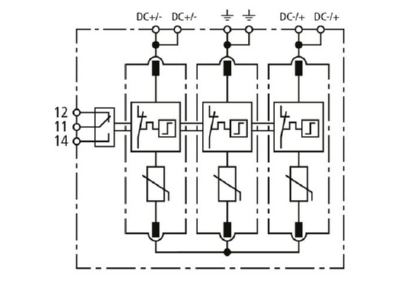

Circuit diagram DEHN DG MP YPV 1200 FM Surge protection for power supply
Circuit diagram

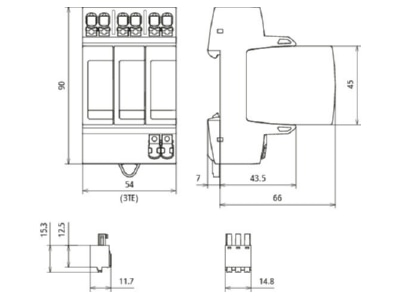

Dimensional drawing DEHN DG MP YPV 1200 FM Surge protection for power supply
Dimensional drawing
