Surge protection device 48V 2-pole DR M 2P 60

EAN/GTIN: 4013364109681
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: DR M 2P 60
Manufact.-SKU: 953202
Customs tariff no.: 85363030
Similar top items: Show now & compare
57,13 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Mounting DIN rail TH35, Rated voltage AC 48V, Highest continuous voltage AC 60V, Highest continuous voltage DC 60V, Nominal load current 25 A, Nominal discharge surge current (8/20) (LN) 1 kA, Total discharge current (8/20) (L+N-PE) 2 kA, Protection level L-N 0.35 kV, Protection level L-PE/N-PE 0.73 kV, Number of poles 2, With telecommunication contact no, Signaling on the device optical, Test class type 3 yes, With noise filter no, Degree of protection (IP) IP20

More product images:

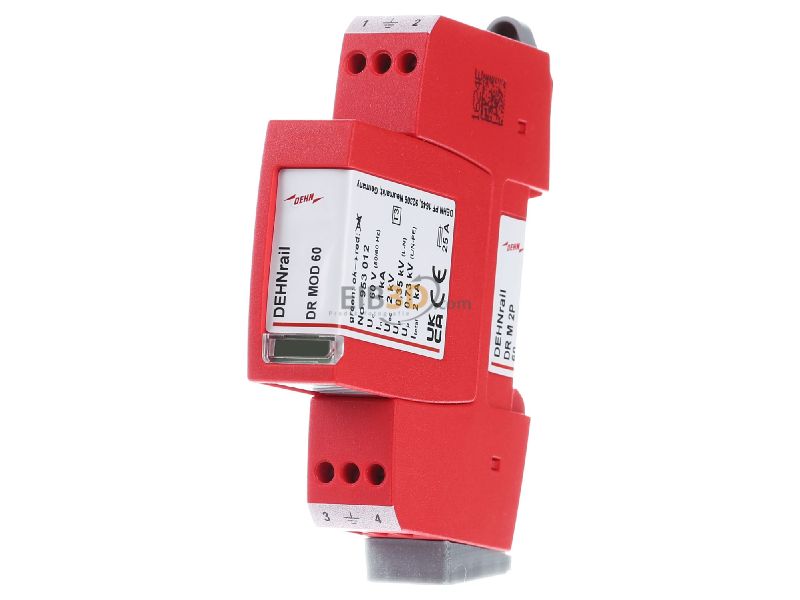

Front view DEHN DR M 2P 60 Surge protection device 48V 2-pole
Front view

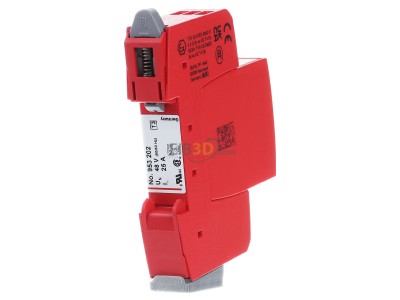

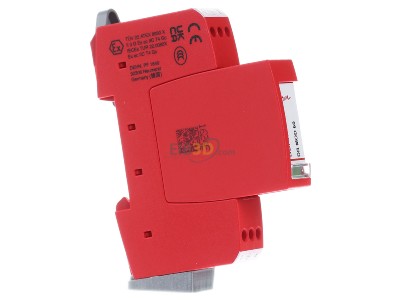

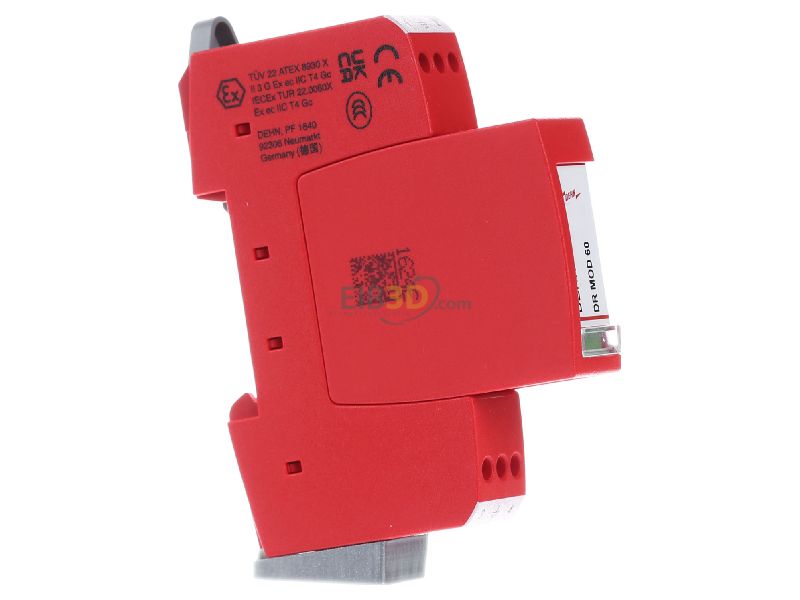

View on the left DEHN DR M 2P 60 Surge protection device 48V 2-pole
View on the left

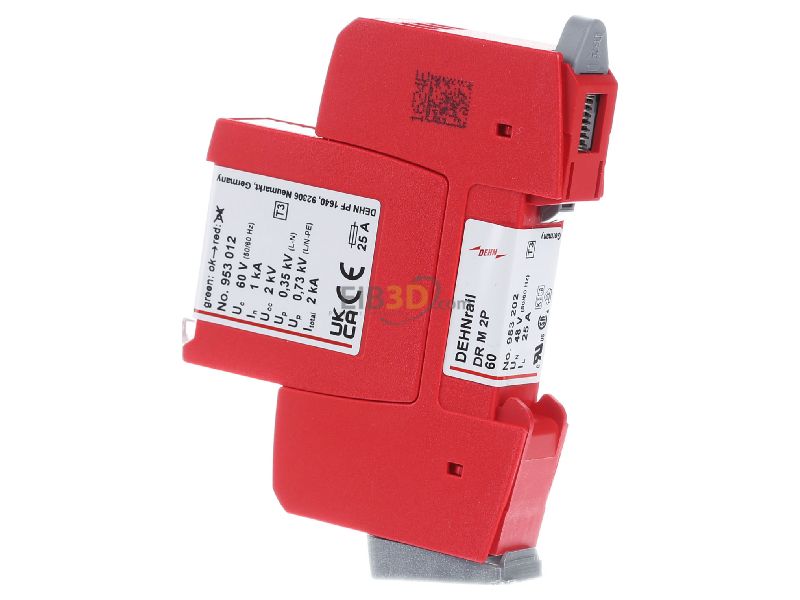

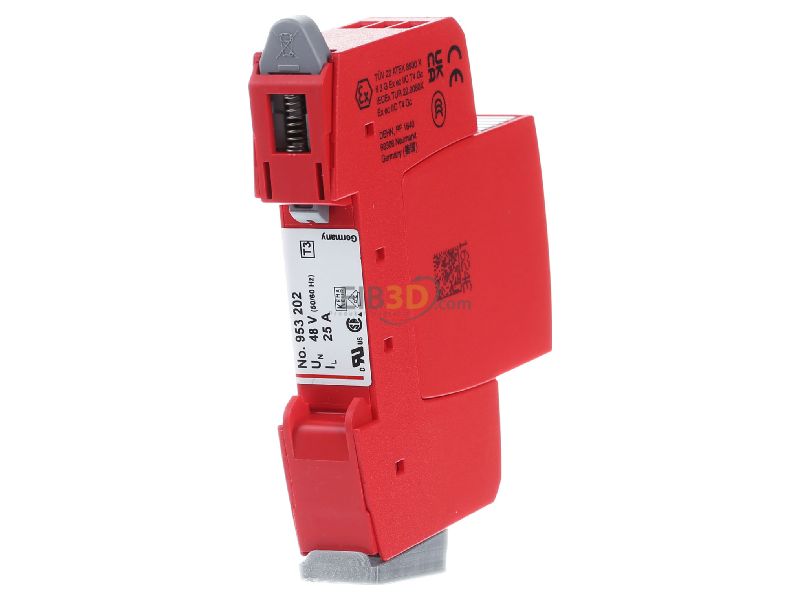

View on the right DEHN DR M 2P 60 Surge protection device 48V 2-pole
View on the right
Back view DEHN DR M 2P 60 Surge protection device 48V 2-pole
Back view

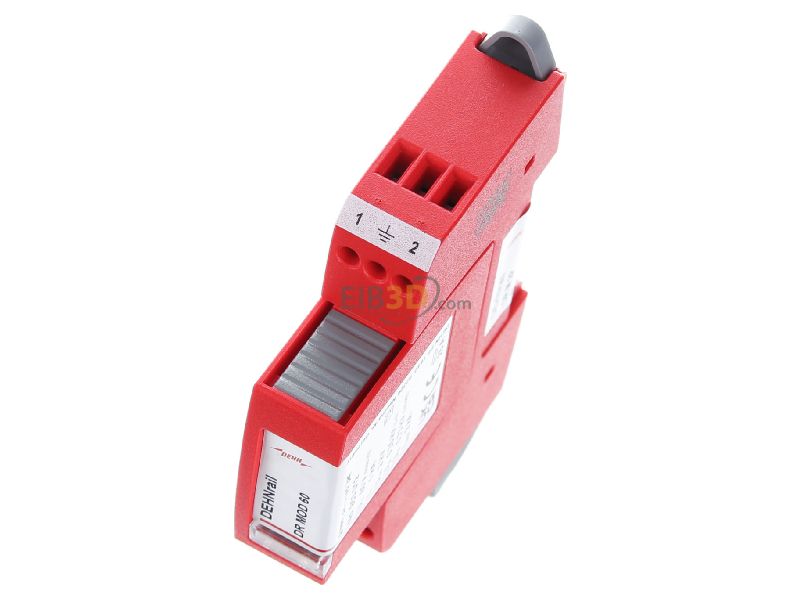

View up front DEHN DR M 2P 60 Surge protection device 48V 2-pole
View up front

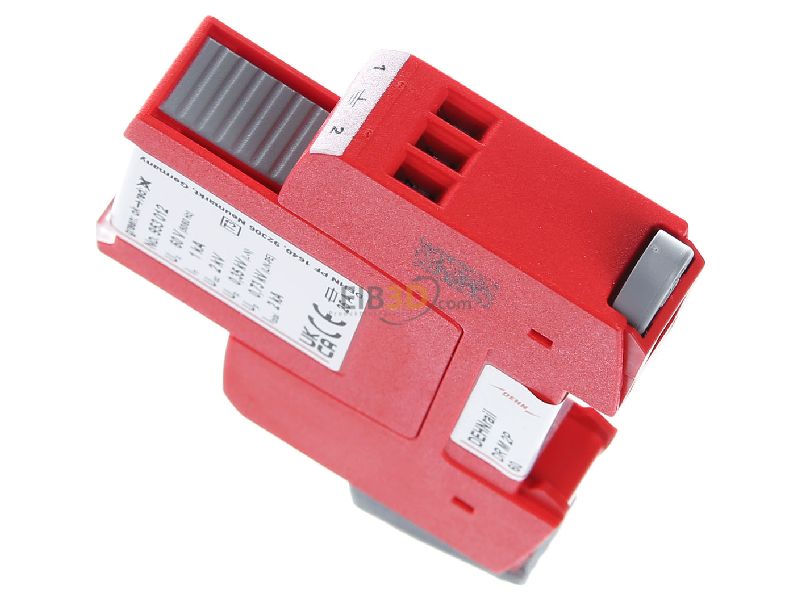

View top left DEHN DR M 2P 60 Surge protection device 48V 2-pole
View top left

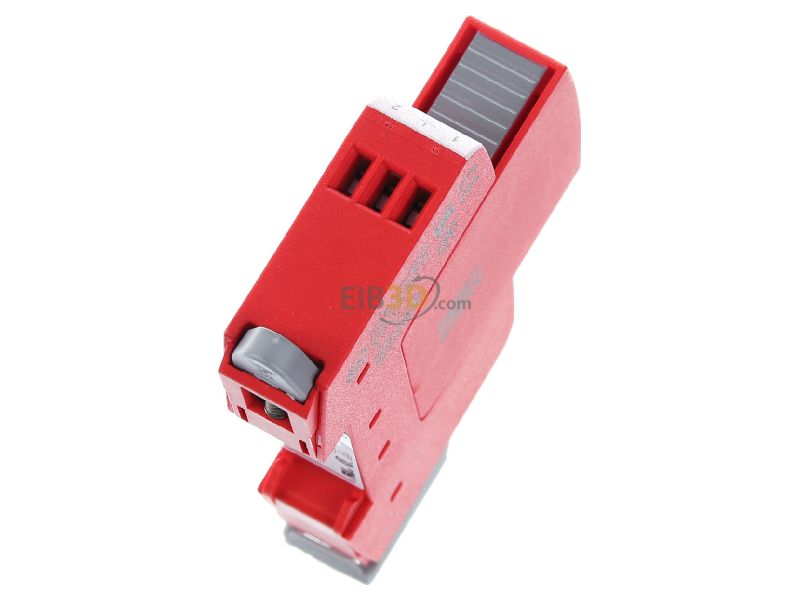

View top right DEHN DR M 2P 60 Surge protection device 48V 2-pole
View top right

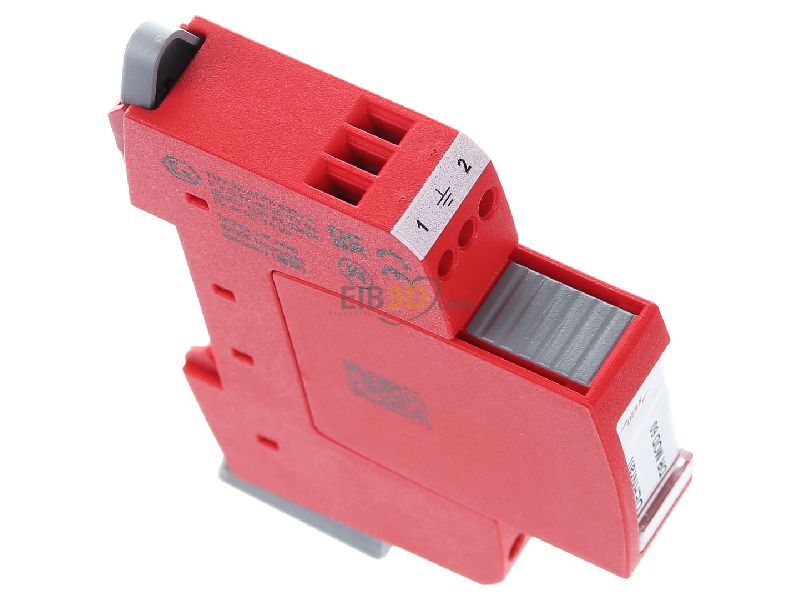

Top rear view DEHN DR M 2P 60 Surge protection device 48V 2-pole
Top rear view

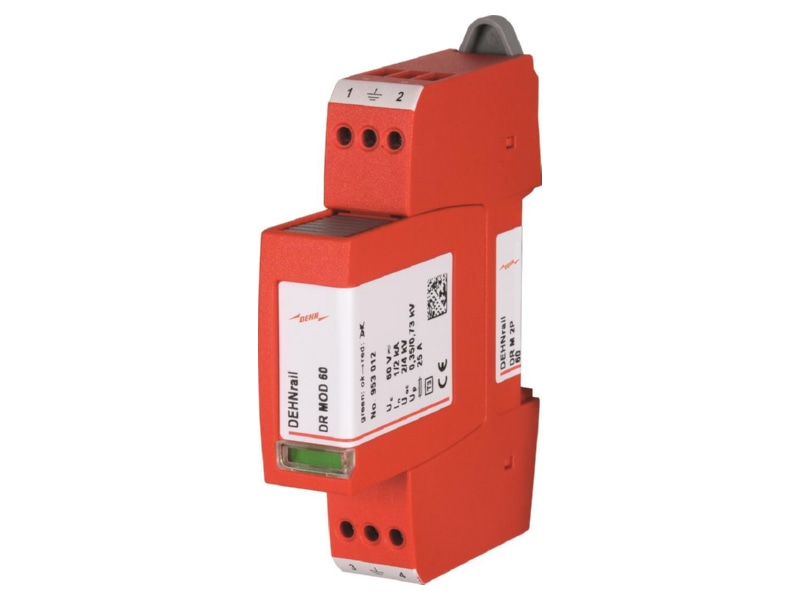

Product image 1 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Product image 1

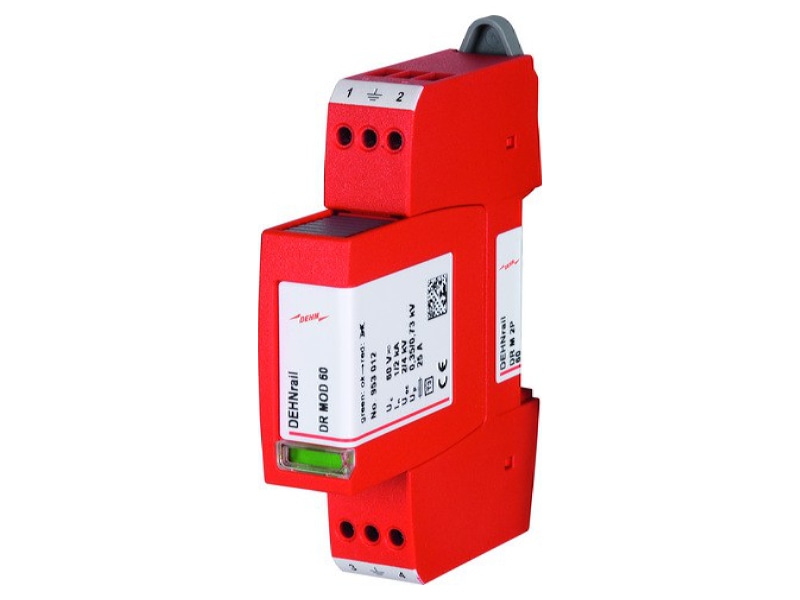

Product image 2 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Product image 2

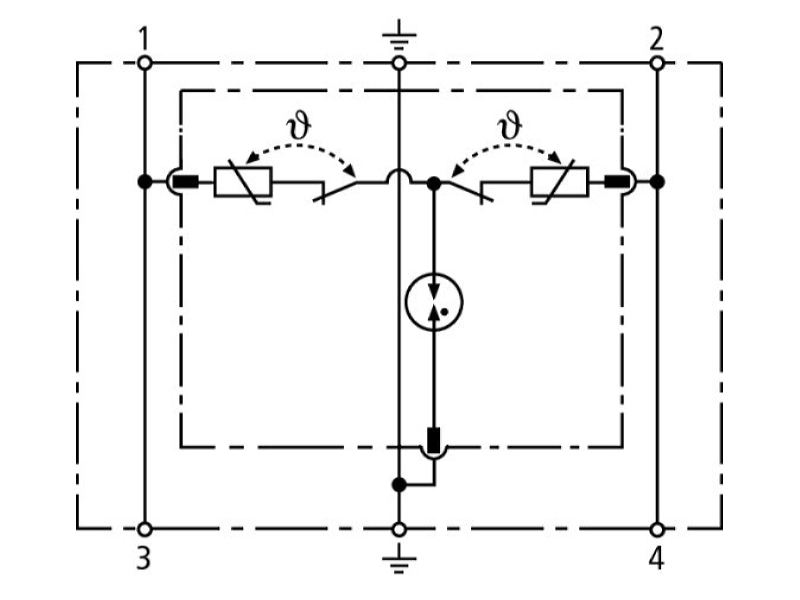

Circuit diagram 1 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Circuit diagram 1
Circuit diagram 2 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Circuit diagram 2
Circuit diagram 3 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Circuit diagram 3

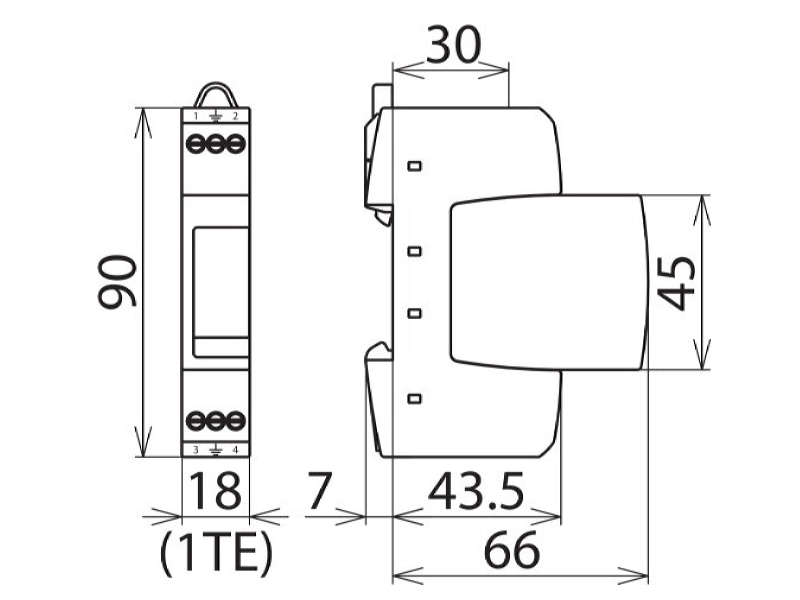

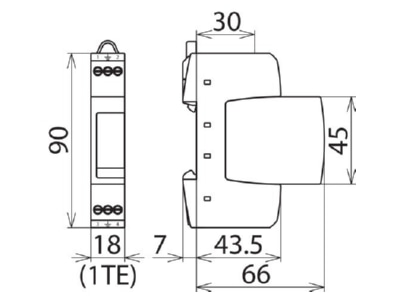

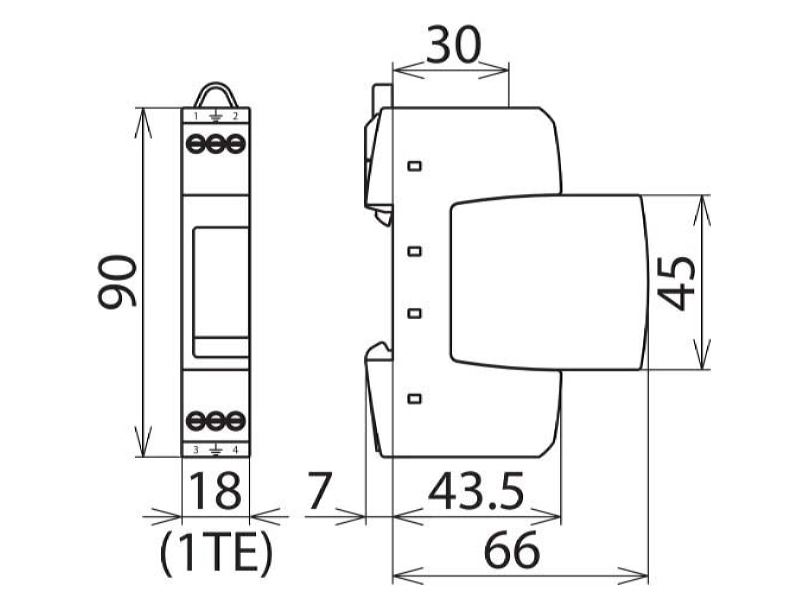

Dimensional drawing 1 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Dimensional drawing 1
Dimensional drawing 2 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Dimensional drawing 2
Dimensional drawing 3 DEHN DR M 2P 60 Surge protection device 48V 2 pole
Dimensional drawing 3
