Combined arrester for signal systems BCO ML2 BD HF 5

EAN/GTIN: 4013364405660
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: BCO ML2 BD HF 5
Manufact.-SKU: 927271
Customs tariff no.: 85363010
Similar top items: Show now & compare
84,10 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Nominal voltage DC 5 ... 5V, Max. continuous voltage AC 6V, Max. continuous voltage DC 8,5V, Lightning impulse current (10/350 µs) 1,5kA, Nominal discharge surge current (8/20) 5kA, Nominal load current 0,75A, Voltage protection level core/core 42V, Voltage protection level core/earth 600V, Limiting frequency 150MHz, Mounting method DIN rail (top hat rail) 35 mm, Connection 1 Clamp, Pro-active thermo-control

More product images:

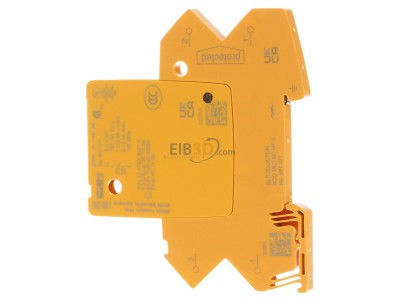

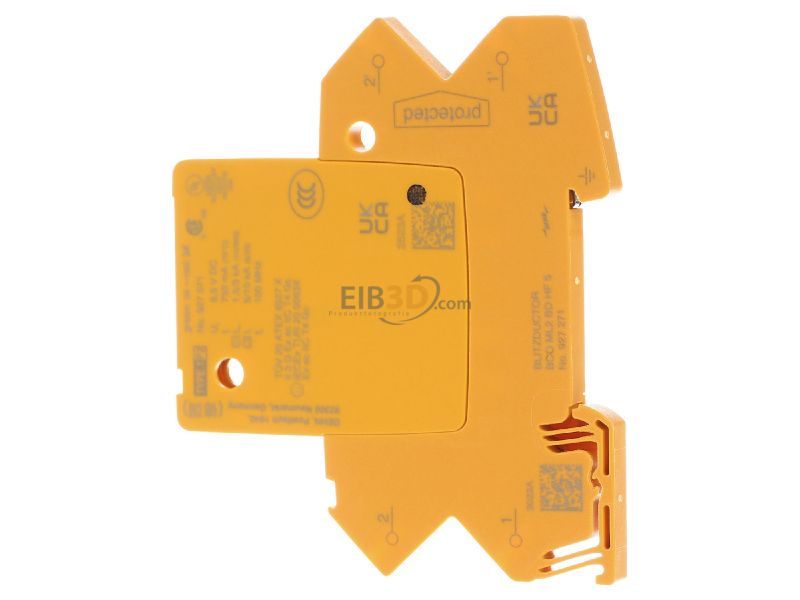

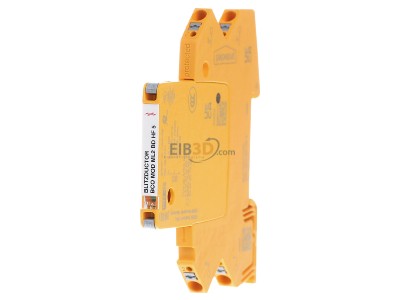

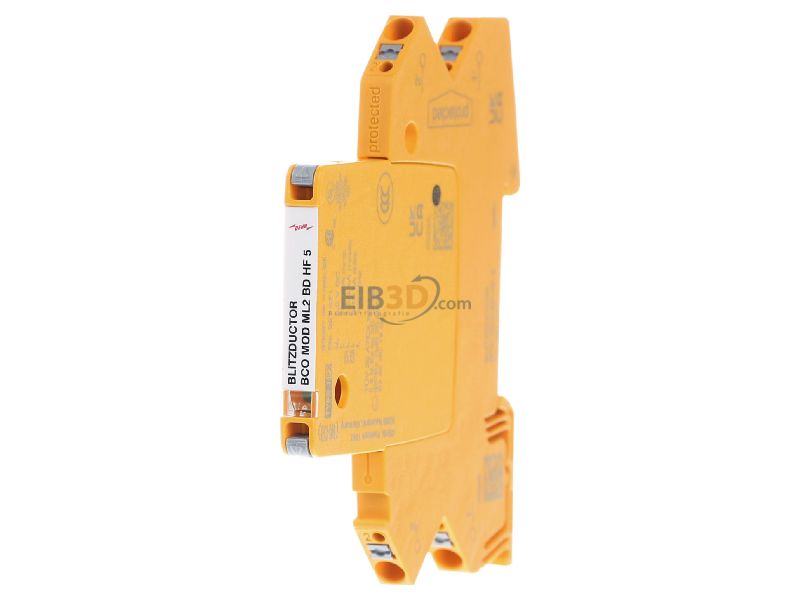

Front view DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Front view

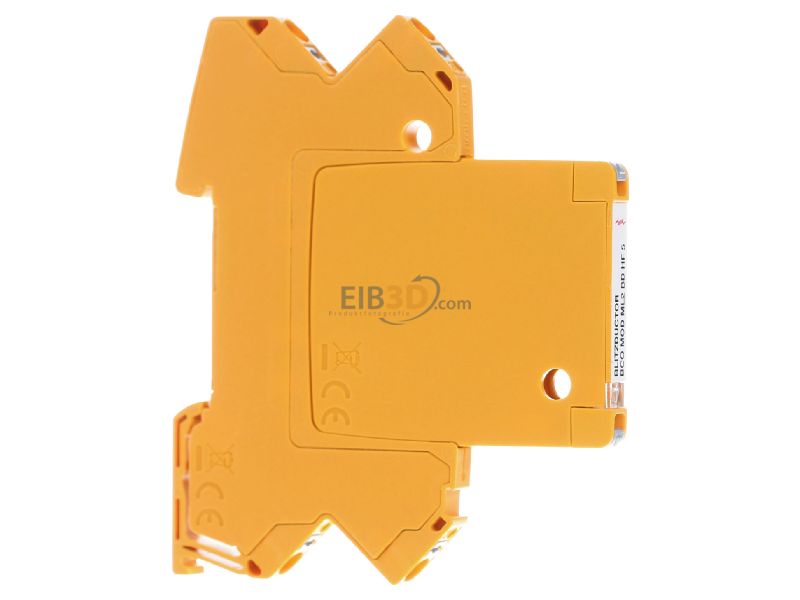

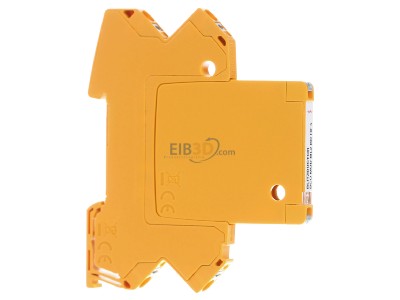

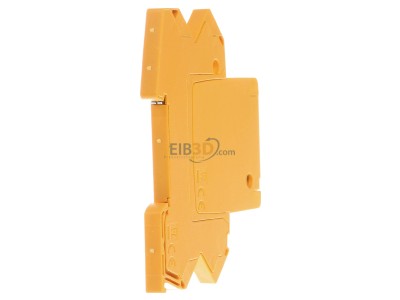

View on the left DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
View on the left

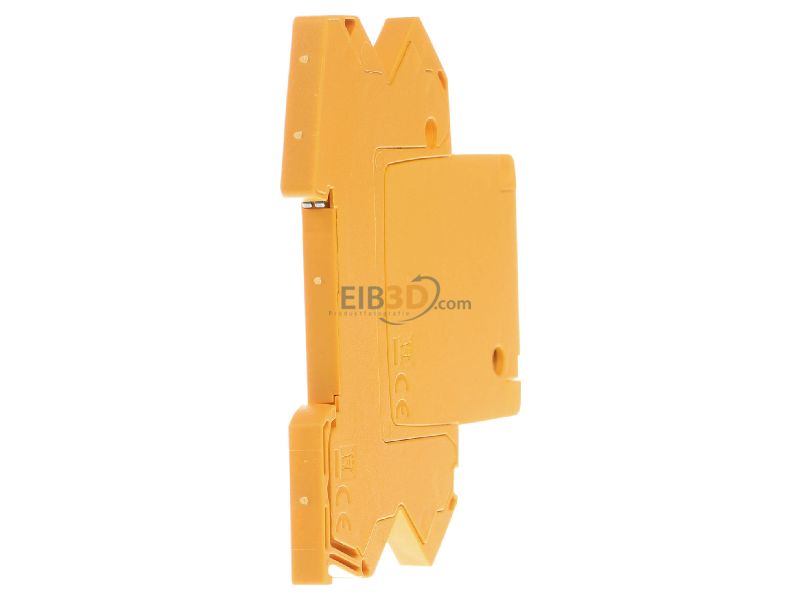

View on the right DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
View on the right
Back view DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Back view

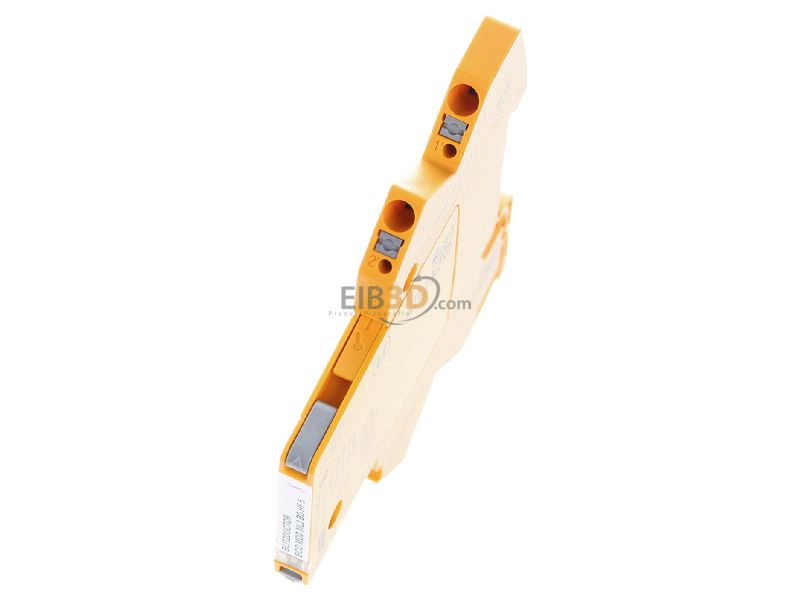

View up front DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
View up front

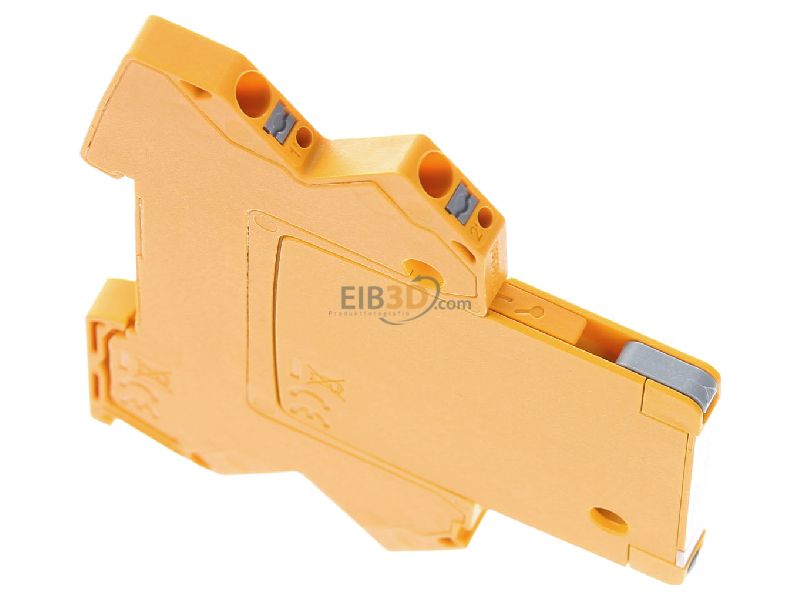

View top left DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
View top left
View top right DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
View top right

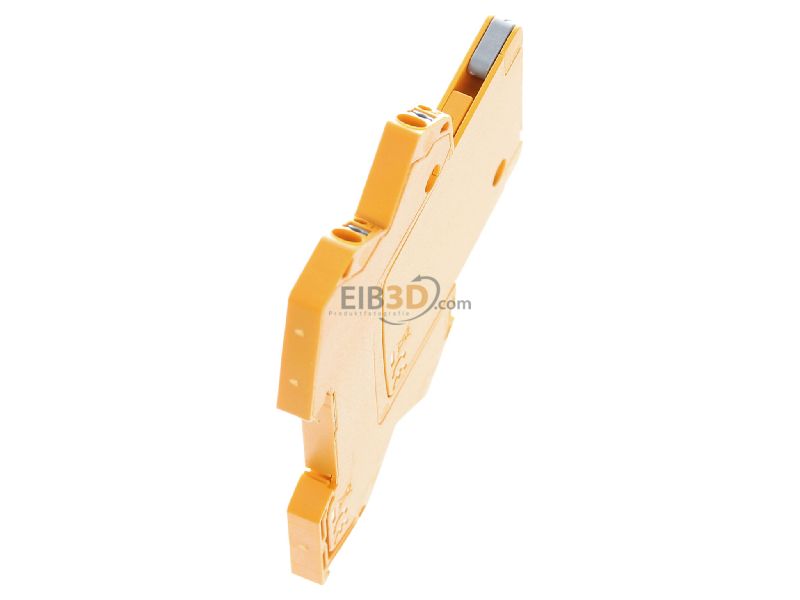

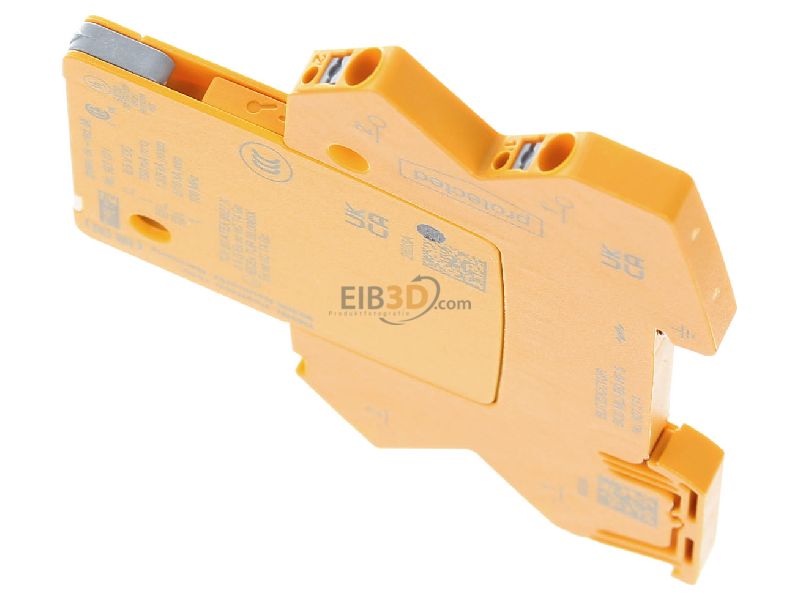

Top rear view DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Top rear view

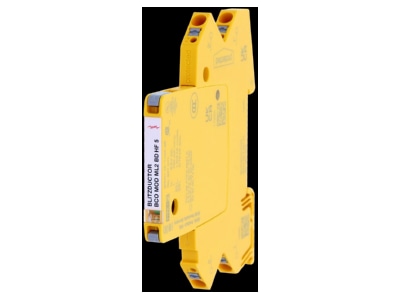

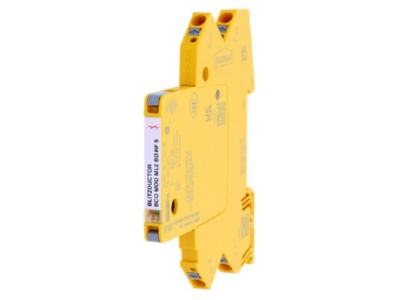

Product image 1 DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Product image 1
Product image 2 DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Product image 2

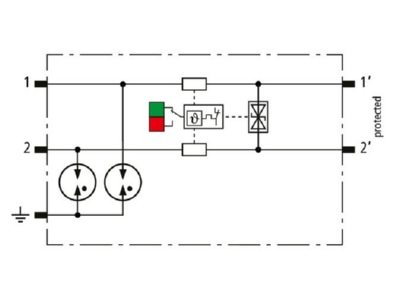

Circuit diagram 1 DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Circuit diagram 1
Circuit diagram 2 DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Circuit diagram 2

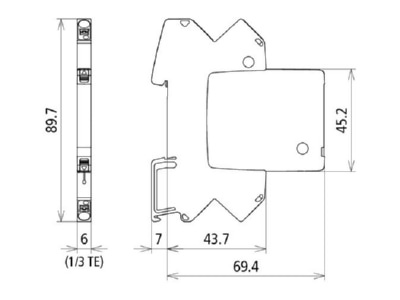

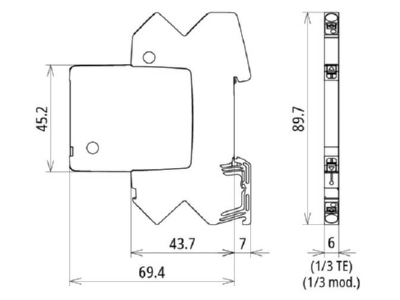

Dimensional drawing 1 DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Dimensional drawing 1
Dimensional drawing 2 DEHN BCO ML2 BD HF 5 Combined arrester for signal systems
Dimensional drawing 2
