Combined arrester for power systems DSH B TT 2P 255 FM

EAN/GTIN: 4013364373235
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: DSH B TT 2P 255 FM
Manufact.-SKU: 941116
Customs tariff no.: 85363090
Similar top items: Show now & compare
131,17 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Combined arrester for power systems System configuration TN, System configuration TT, Number of poles 2, Lightning impulse current (10/350 µs) 25kA, Max. continuous voltage AC 255V, Nominal voltage AC 230V, Voltage protection level L-N 1,5kV, Voltage protection level N-PE 1,5kV, Follow current extinguishing capability 15kA, Max. conductor cross section solid (solid, stranded) 35mm², Max. conductor cross section flexible (fine-strand) 25mm², Mounting method DIN rail (top hat rail) 35 mm, Construction size 2 modular spacing, Remote signalling, Signalling at the device Optic, Test class Type 1 + 2, Energy-coordinated protection effect with regard to the terminal equipment

More product images:

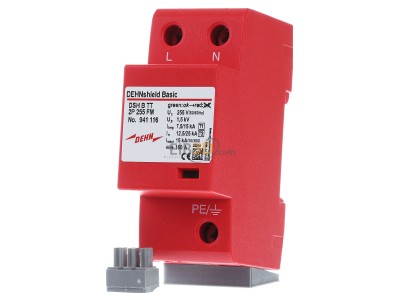

Front view Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Front view

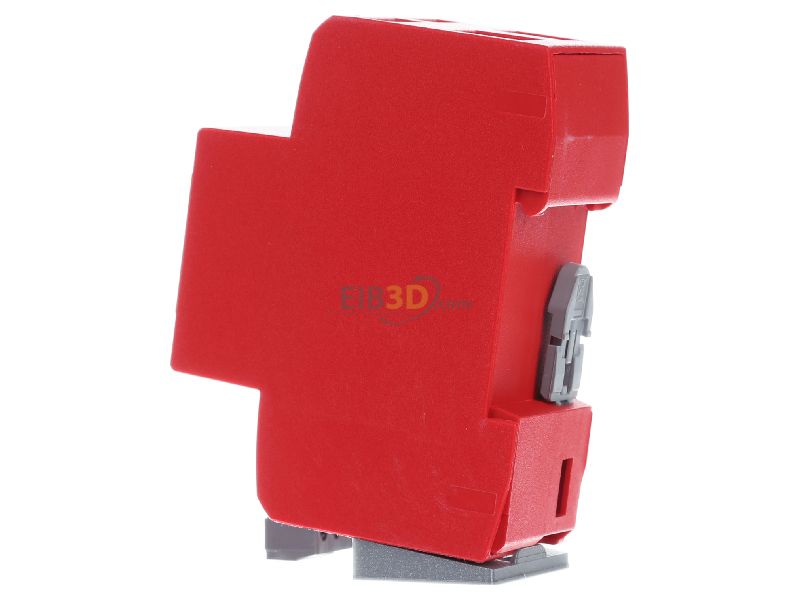

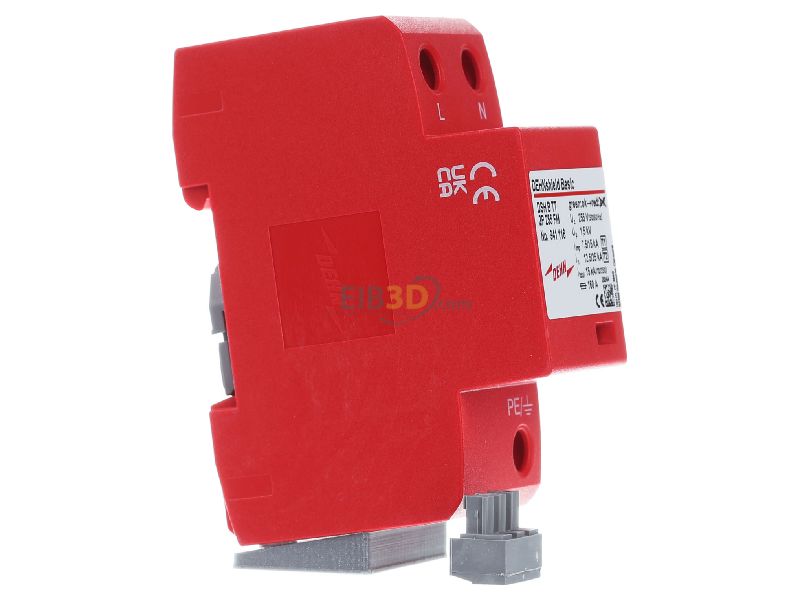

View on the left Dehn DSH B TT 2P 255 FM Combined arrester for power systems
View on the left

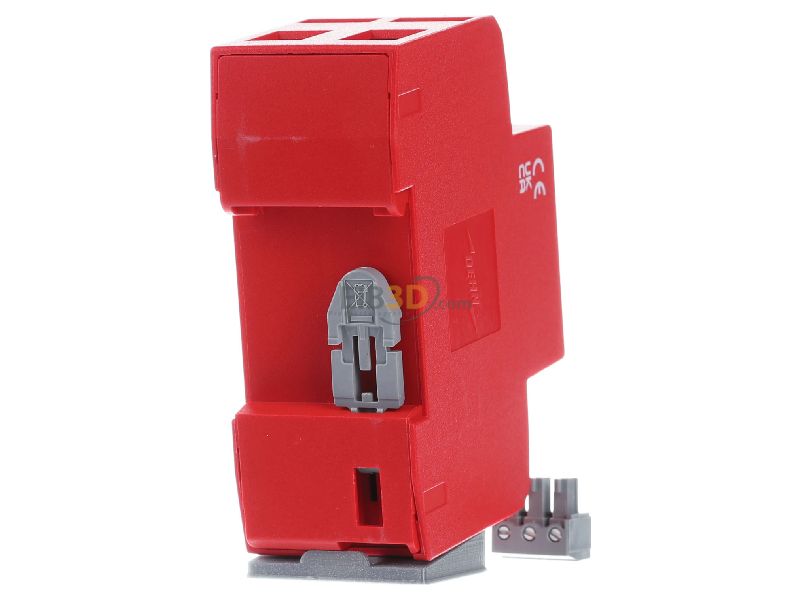

View on the right Dehn DSH B TT 2P 255 FM Combined arrester for power systems
View on the right
Back view Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Back view

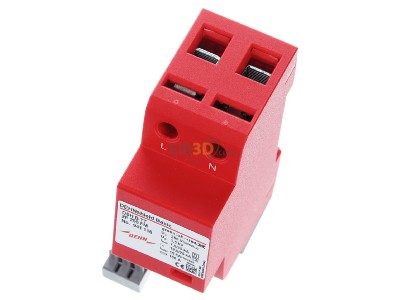

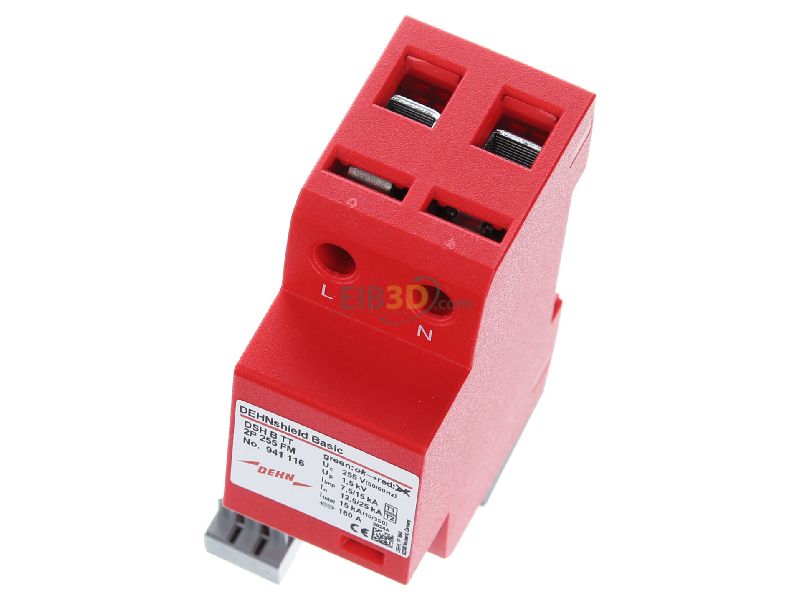

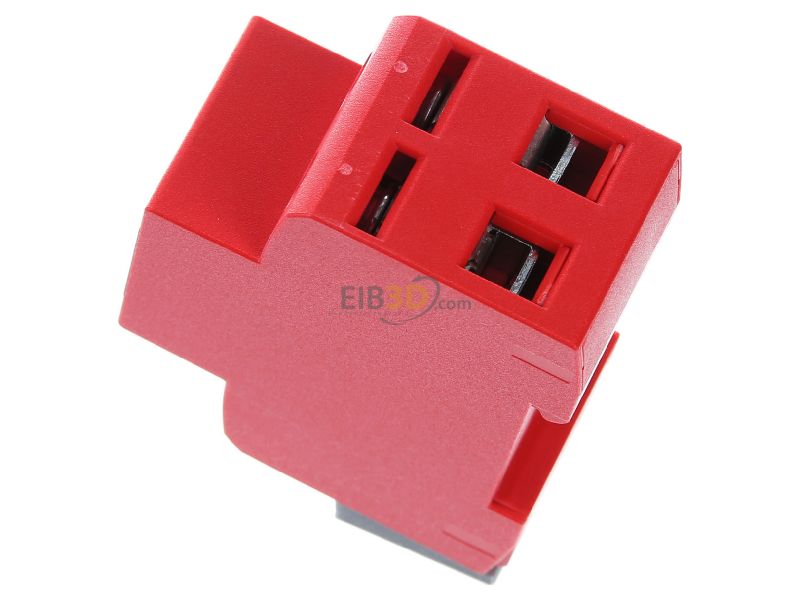

View up front Dehn DSH B TT 2P 255 FM Combined arrester for power systems
View up front

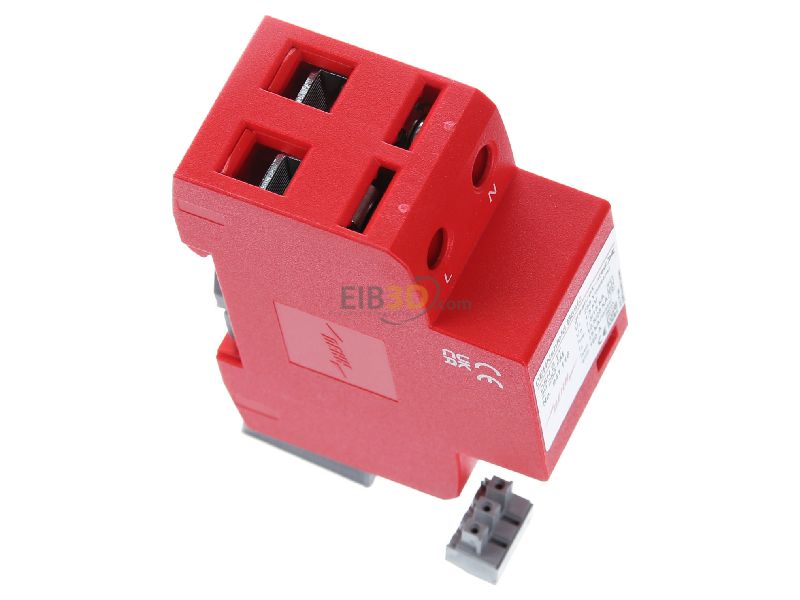

View top left Dehn DSH B TT 2P 255 FM Combined arrester for power systems
View top left
View top right Dehn DSH B TT 2P 255 FM Combined arrester for power systems
View top right

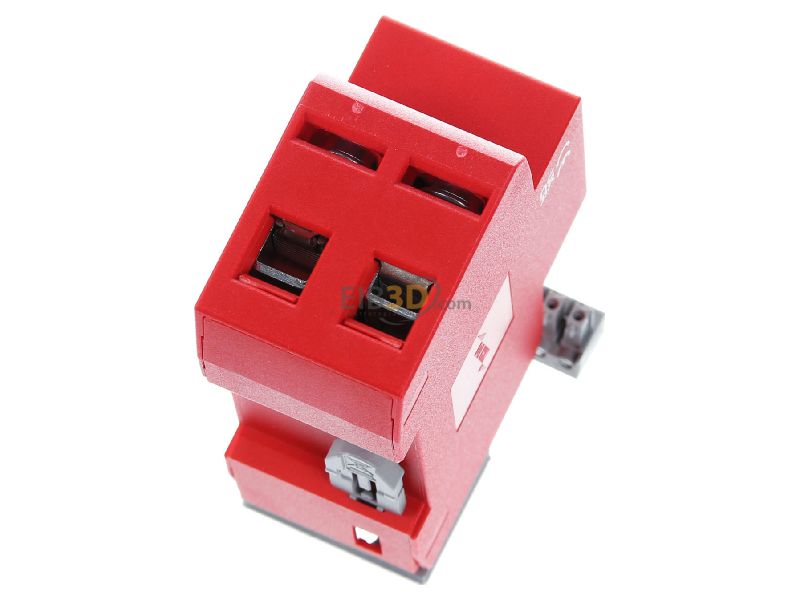

Top rear view Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Top rear view

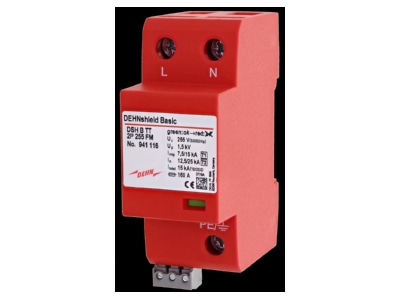

Product image 1 Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Product image 1

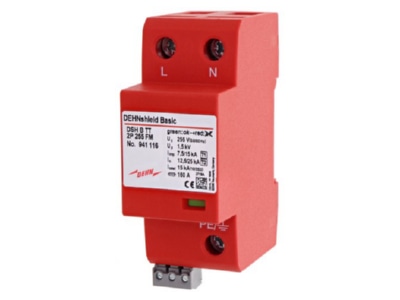

Product image 2 Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Product image 2

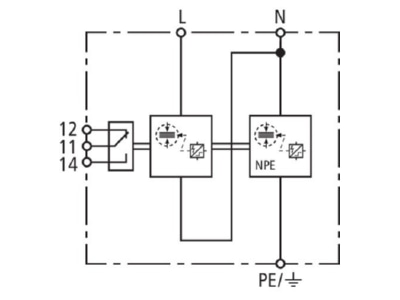

Circuit diagram 1 Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Circuit diagram 1
Circuit diagram 2 Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Circuit diagram 2

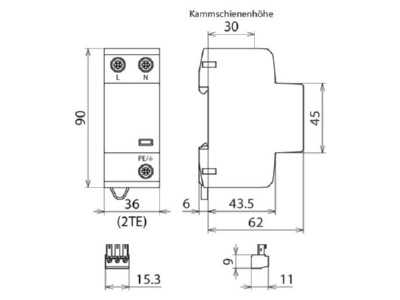

Dimensional drawing 1 Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Dimensional drawing 1
Dimensional drawing 2 Dehn DSH B TT 2P 255 FM Combined arrester for power systems
Dimensional drawing 2
