Presence detector PD9-M-2C-DE
Source photo:
BEG
(fig. might be different or similar)

Presence detector PD9-M-2C-DE

EAN/GTIN: 4007529929764
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: PD9-M-2C-DE
Manufact.-SKU: 92976
Customs tariff no.: 85365080
Similar top items: Show now & compare
129,72 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Presence detector, Sensor type=Passive infrared, With DALI interface=no, HVAC-control=yes, Forced switch off=yes, Animal zone=no, Networkable=no, Optimum mounting height=2,5 m, Staircase light controller=yes, Bridging switch=no, Max. reach sideways=5 m, Max. presence range=12 m², Diameter reach on floor=10 m, Suitable for wireless transmission=no, Remote operation=yes, With remote control=no, Response value sensitivity adjustable=yes, Response value luminosity adjustable=yes, With signal unit=no, Teach-function for response value luminosity=yes, Dim function with dimmer basic element=no, Mounting method=Other, Suitable for ceiling mounting=yes, Suitable for wall mounting=no, Material=Plastic, Material quality=Other, Halogen free=yes, Surface protection=Untreated, Surface finishing=Matt, Anti-bacterial treatment=no, Colour=White, RAL-number (similar)=9010, Transparent=no, Degree of protection (IP)=IP20, Impact strength=IK03, Voltage type=AC, Frequency=50..60 Hz, Min. switch-on time=300 s, Max. duty cycle=30 min, Switch-off delay=0 s, Switching-on delay=0 s, Response value luminosity=20..1000 lx, Max. switching power=2300 W, Max. switching power LED=300 W, Suitable for C-load=no, Temperature=-25..50 °C, Number of switching zones=78, Max. starting current=165 A, Control current=3 mA, Substation input=yes, With alarm function=yes, Height=28 mm, Diameter=45 mm, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

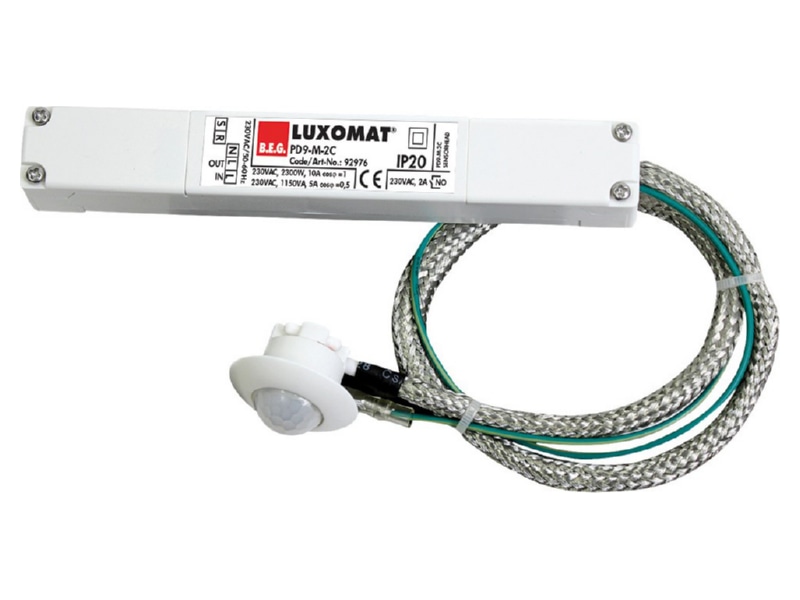

Product image BEG PD9 M 2C DE Presence detector
Product image

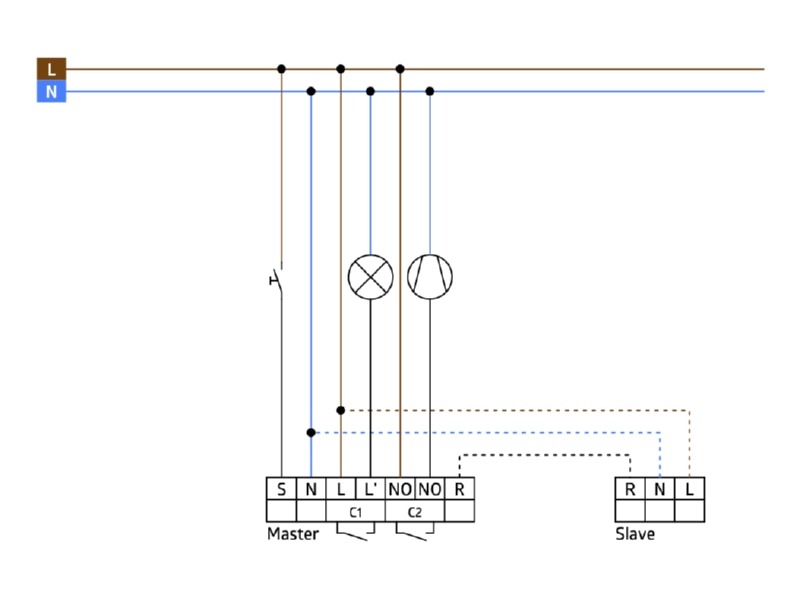

Wiring plan BEG PD9 M 2C DE Presence detector
Wiring plan

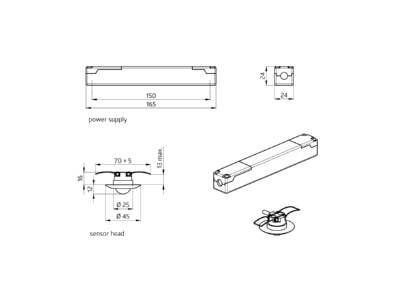

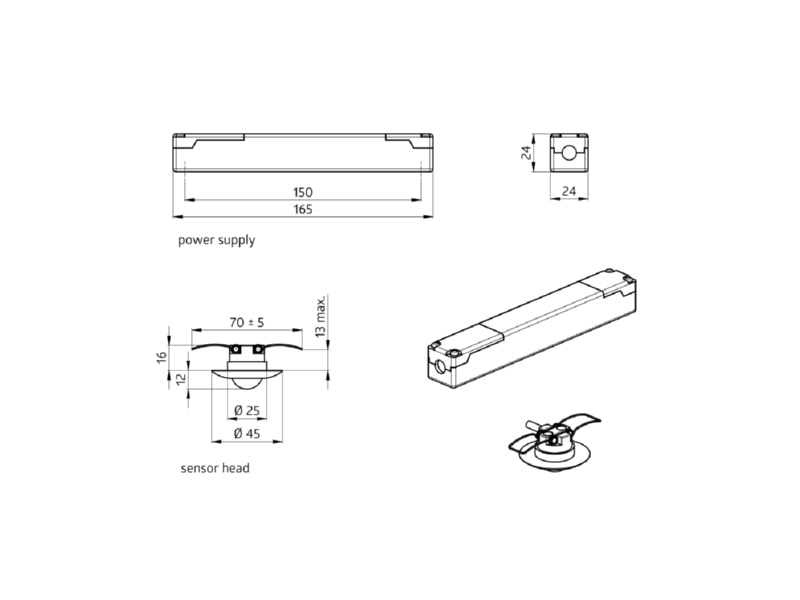

Dimensional drawing BEG PD9 M 2C DE Presence detector
Dimensional drawing

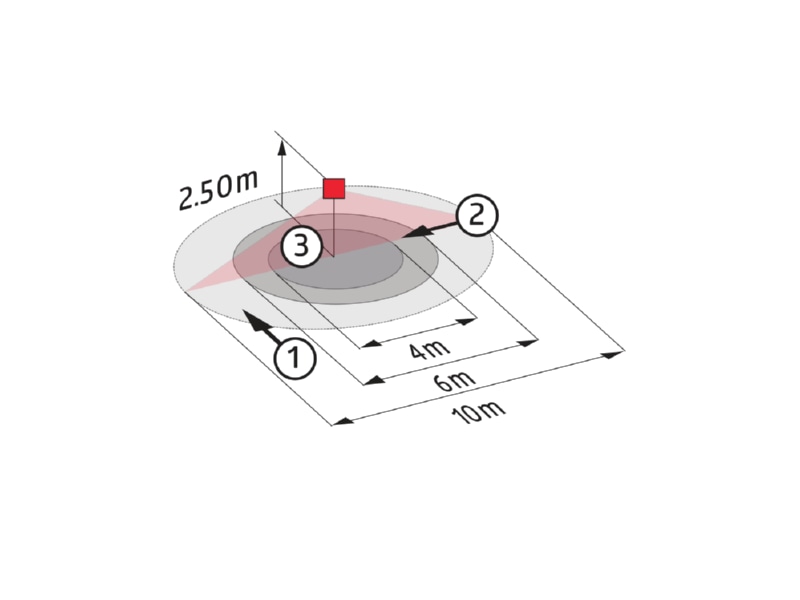

Cone diagram BEG PD9 M 2C DE Presence detector
Cone diagram
