Presence detector 6m PICO-N-M-1C-DE
Source photo:
BEG
(fig. might be different or similar)

Presence detector 6m PICO-N-M-1C-DE

EAN/GTIN: 4007529931590
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: PICO-N-M-1C-DE
Manufact.-SKU: 93159
Customs tariff no.: 85365080
Similar top items: Show now & compare
96,62 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Presence detector, Sensor type=Passive infrared, With DALI interface=no, HVAC-control=no, Forced switch off=no, Animal zone=no, Creep-under protection=yes, Networkable=no, Optimum mounting height=2,5 m, Staircase monitoring=yes, Bridging switch=no, Max. transmission range sideways=5 m, Max. presence range=12 m², Max. transmission range frontally=6 m, Diameter detection range on floor=10 m, Suitable for wireless transmission=no, Remote operation=no, With remote control=no, Response value sensitivity adjustable=yes, Response value luminosity adjustable=yes, With signal unit=no, Teach-function for response value luminosity=no, Suitable for ceiling mounting=yes, Suitable for wall mounting=no, Dim function with dimmer basic element=no, Mounting method=Other, Material=Plastic, Material quality=Other, Halogen free=yes, Surface finishing=Matt, Anti-bacterial treatment=no, Colour=White, RAL-number (similar)=9010, Transparent=no, Degree of protection (IP)=IP65, Voltage type=AC, Frequency=50..60 Hz, Nominal voltage=240 V, Min. switch-on time=15 s, Max. duty cycle=30 min, Switch-off delay=0 s, Switching-on delay=0 s, Response value luminosity=10..2000 lx, Max. switching power=2300 W, Max. switching power LED=300 W, Suitable for C-load=no, Temperature=-25..50 °C, Number of switching zones=78, Control current=1 mA, Substation input=yes, With alarm function=no, Height=60 mm, Diameter=33 mm, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

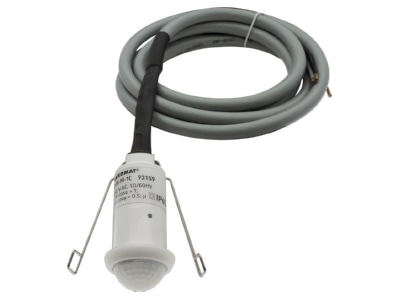

Product image BEG PICO N M 1C DE Presence detector 6m
Product image

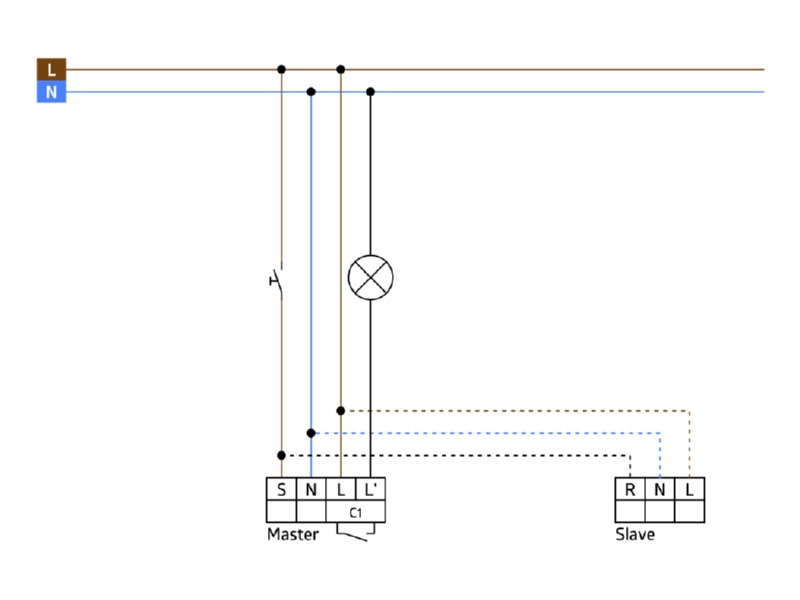

Wiring plan BEG PICO N M 1C DE Presence detector 6m
Wiring plan

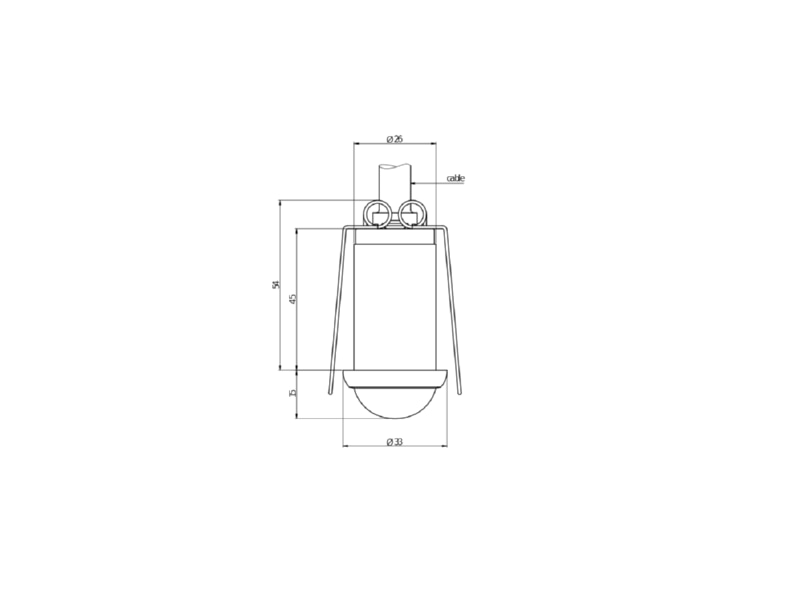

Dimensional drawing BEG PICO N M 1C DE Presence detector 6m
Dimensional drawing

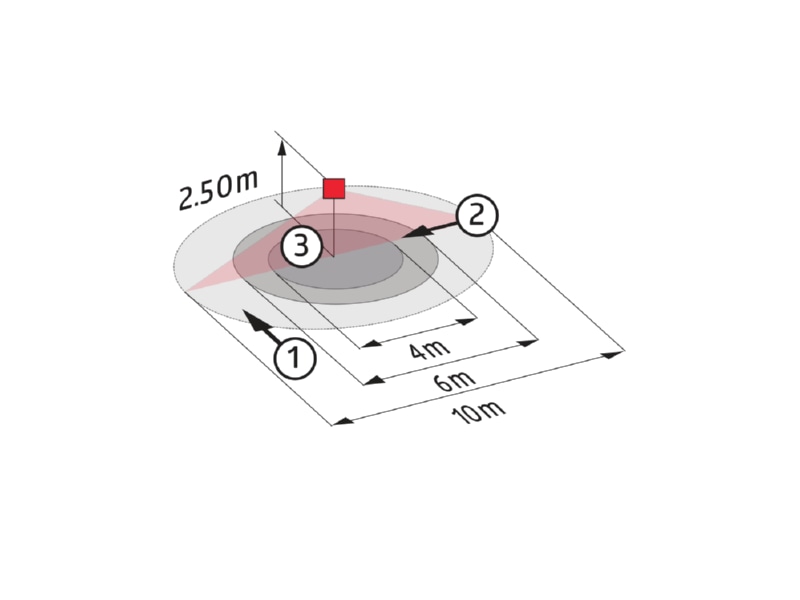

Cone diagram BEG PICO N M 1C DE Presence detector 6m
Cone diagram
