Movement sensor 8m HF-H-MD1 Standard ws
Source photo:
BEG
(fig. might be different or similar)

Movement sensor 8m HF-H-MD1 Standard ws

EAN/GTIN: 4007529944316
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: HF-H-MD1 Standard ws
Manufact.-SKU: 94431
Customs tariff no.: 85365080
Similar top items: Show now & compare
75,03 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Model=Movement sensor, Sensor type=High frequency, With DALI interface=no, HVAC-control=no, Animal zone=no, Creep-under protection=yes, Networkable=no, Optimum mounting height=2,5 m, Staircase light controller=yes, Bridging switch=no, Max. reach sideways=8 m, Max. presence range=0 m², Max. reach frontally=8 m, Diameter reach on floor=16 m, Suitable for wireless transmission=no, Remote operation=no, With remote control=no, Response value luminosity adjustable=no, With signal unit=no, Teach-function for response value luminosity=no, Dim function with dimmer basic element=no, Suitable for ceiling mounting=yes, Suitable for wall mounting=no, Material=Plastic, Material quality=Other, Halogen free=yes, Surface protection=Untreated, Surface finishing=Matt, Anti-bacterial treatment=no, Colour=White, RAL-number (similar)=9010, Transparent=no, Degree of protection (IP)=IP20, Voltage type=AC, Frequency=50 Hz, Min. switch-on time=5 s, Max. duty cycle=25 min, Switch-off delay=0 s, Switching-on delay=0 s, Max. switching power=1000 W, Suitable for C-load=no, Temperature=-35..70 °C, Number of switching zones=200, Control current=3 mA, Substation input=no, With alarm function=no, Width=53 mm, Height=26 mm, Depth=103 mm, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

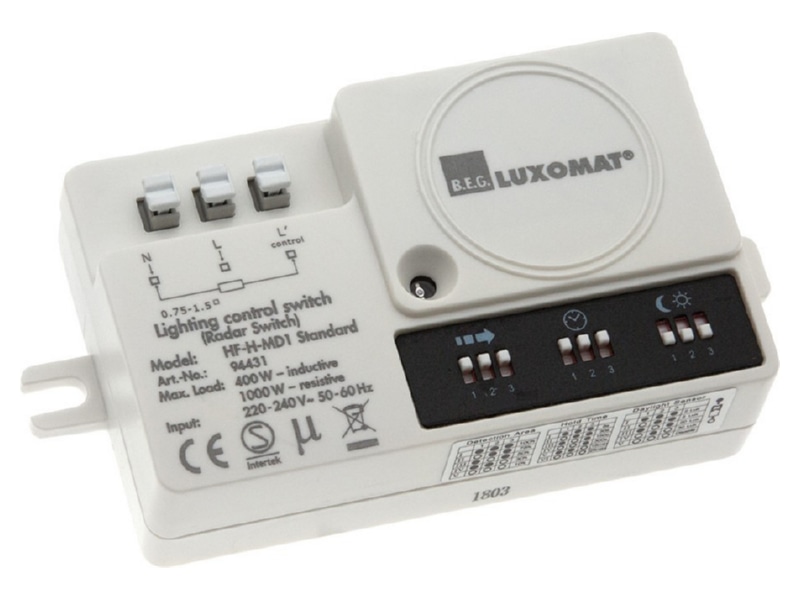

Product image BEG HF H MD1 Standard ws Movement sensor 8m
Product image

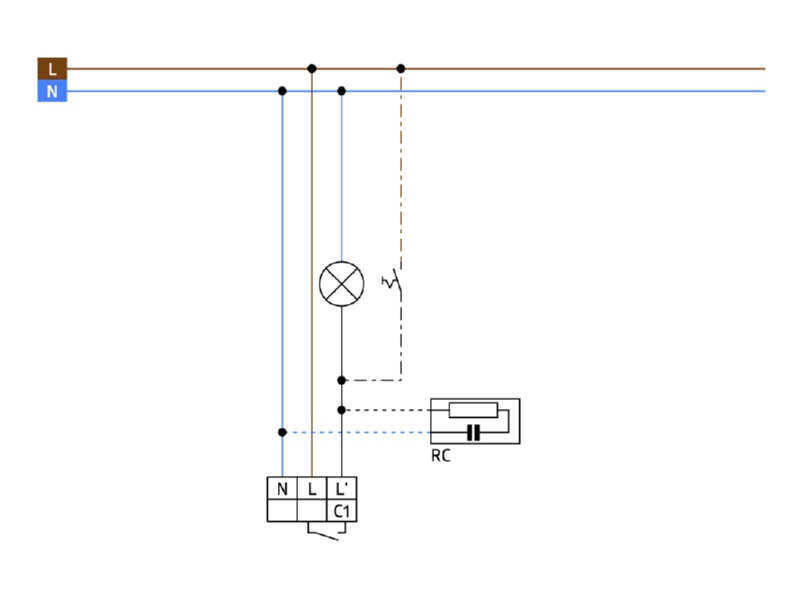

Wiring plan BEG HF H MD1 Standard ws Movement sensor 8m
Wiring plan

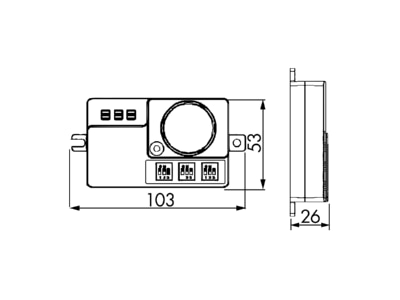

Dimensional drawing BEG HF H MD1 Standard ws Movement sensor 8m
Dimensional drawing

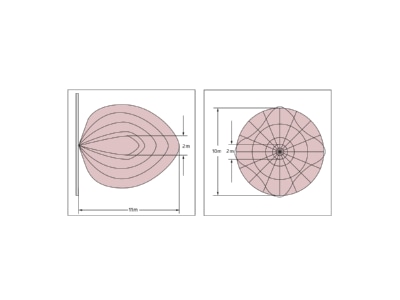

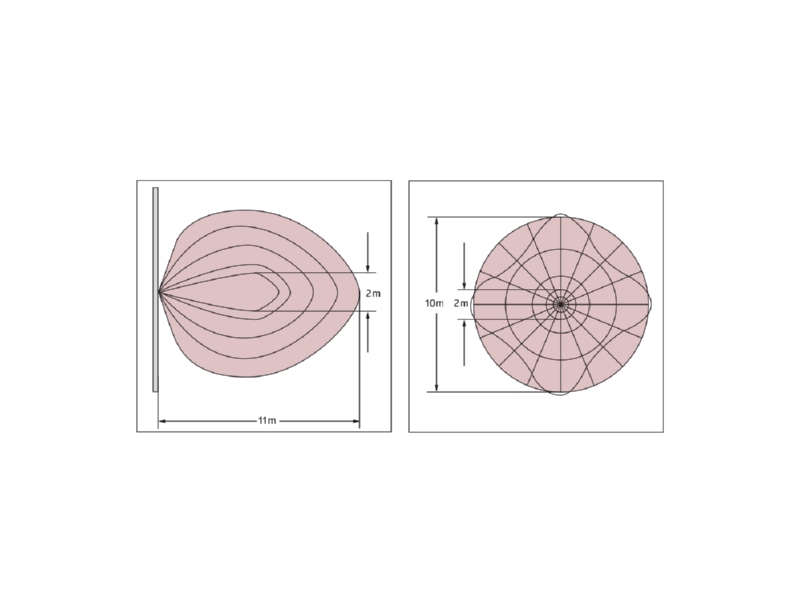

Cone diagram BEG HF H MD1 Standard ws Movement sensor 8m
Cone diagram
