Movement sensor 6m RC-plus next N280 sw

EAN/GTIN: 4007529933433
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: RC-plus next N280 sw
Manufact.-SKU: 93343
Customs tariff no.: 85365080
Similar top items: Show now & compare
98,33 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Movement sensor, Sensor type=Passive infrared, With DALI interface=no, Constant light control=no, HVAC-control=no, Animal zone=yes, Creep-under protection=yes, Networkable=no, Optimum mounting height=2,5 m, Staircase monitoring=no, Bridging switch=no, Max. transmission range sideways=20 m, Max. presence range=39 m², Max. transmission range frontally=6 m, Diameter detection range on floor=40 m, Suitable for wireless transmission=no, Remote operation=yes, With remote control=no, Response value sensitivity adjustable=yes, Response value luminosity adjustable=yes, With signal unit=no, Teach-function for response value luminosity=yes, Suitable for ceiling mounting=yes, Suitable for wall mounting=yes, Dim function with dimmer basic element=no, Mounting method=Surface mounted (plaster), Material=Plastic, Material quality=Other, Halogen free=yes, Surface protection=Untreated, Surface finishing=Matt, Anti-bacterial treatment=no, Colour=Black, RAL-number (similar)=9005, Transparent=no, Degree of protection (IP)=IP54, Voltage type=AC, Frequency=50..60 Hz, Nominal voltage=230 V, Min. switch-on time=15 s, Max. duty cycle=16 min, Switch-off delay=0 s, Switching-on delay=0 s, Pivoting range sensor, horizontal=-45..45 °, Pivoting range sensor, vertical=-20..20 °, Response value luminosity=2..500 lx, Max. switching power=3000 W, Max. switching power LED=300 W, Suitable for C-load=no, Temperature=-25..50 °C, Number of switching zones=970, Max. starting current=165 A, Substation input=no, With alarm function=yes, Width=71 mm, Height=85 mm, Depth=121 mm, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

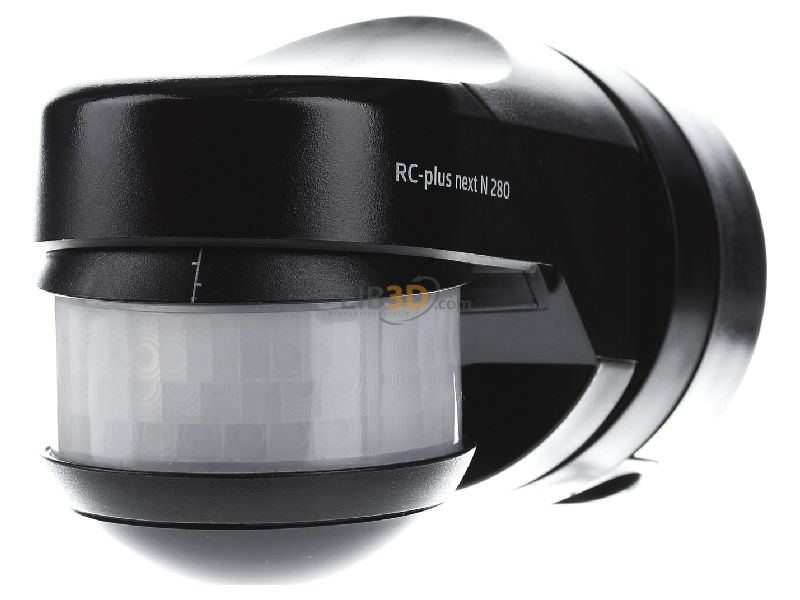

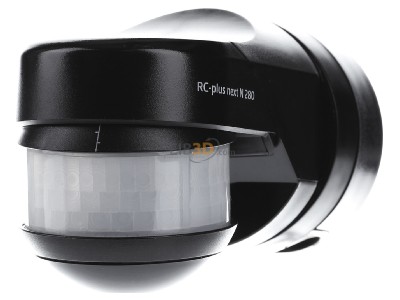

Front view BEG RC-plus next N280 sw Movement sensor 6m
Front view

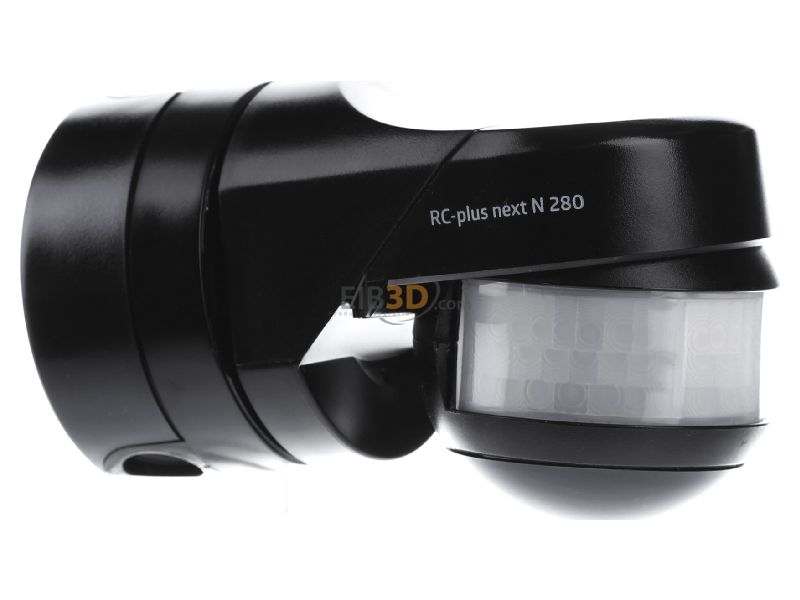

View on the left BEG RC-plus next N280 sw Movement sensor 6m
View on the left

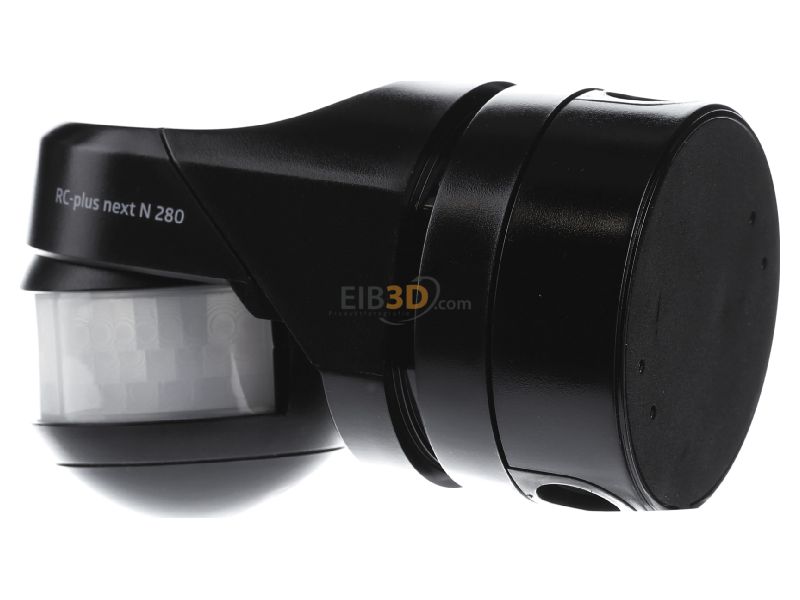

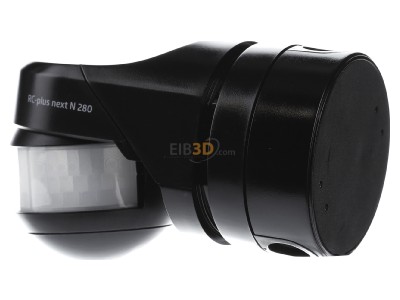

View on the right BEG RC-plus next N280 sw Movement sensor 6m
View on the right

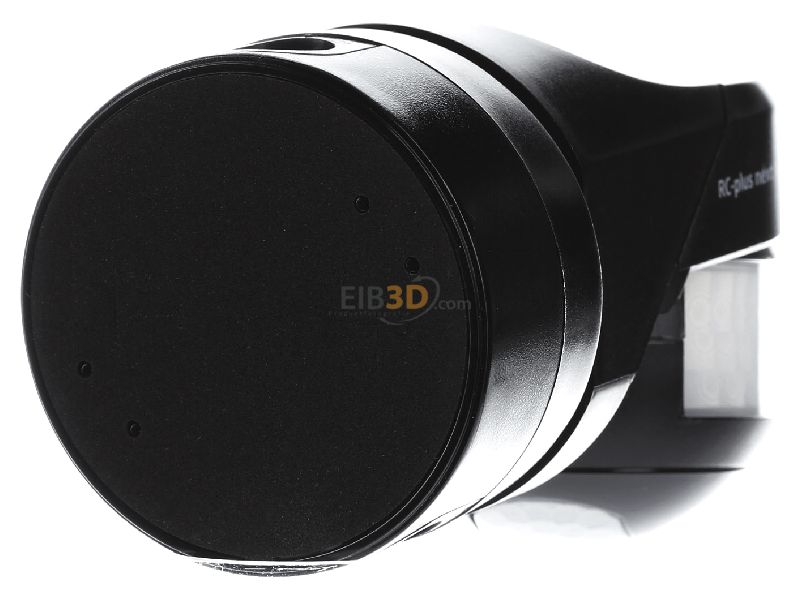

Back view BEG RC-plus next N280 sw Movement sensor 6m
Back view
View up front BEG RC-plus next N280 sw Movement sensor 6m
View up front

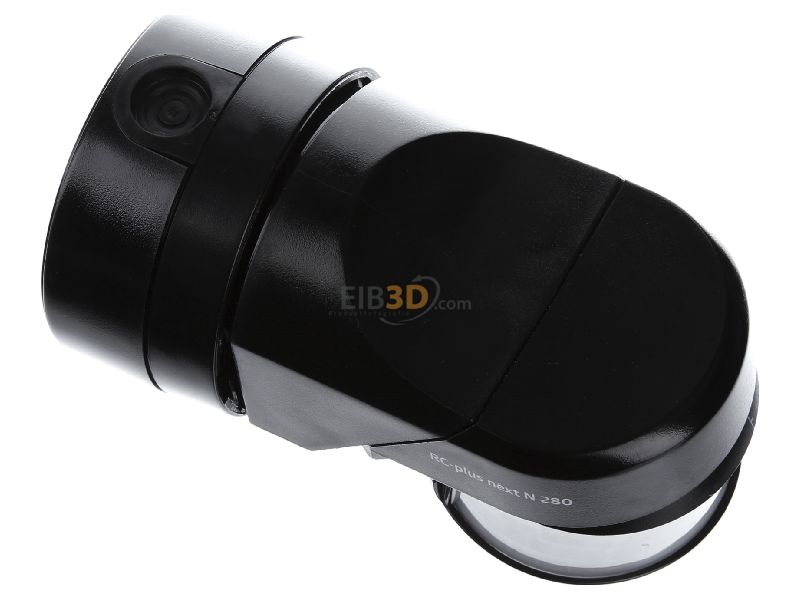

View top left BEG RC-plus next N280 sw Movement sensor 6m
View top left

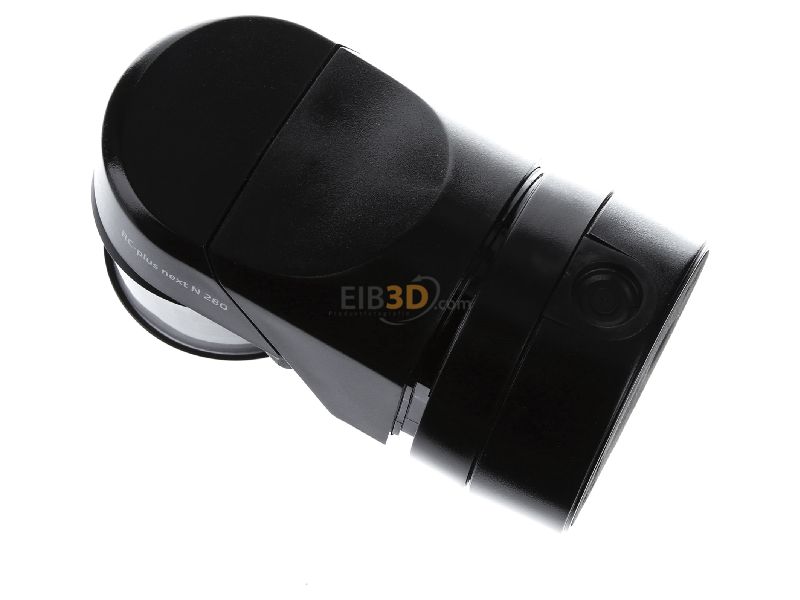

View top right BEG RC-plus next N280 sw Movement sensor 6m
View top right

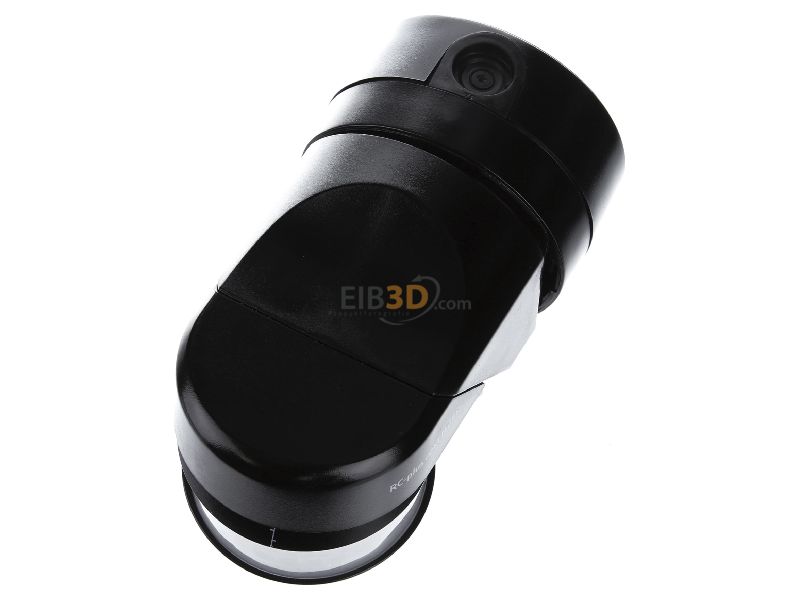

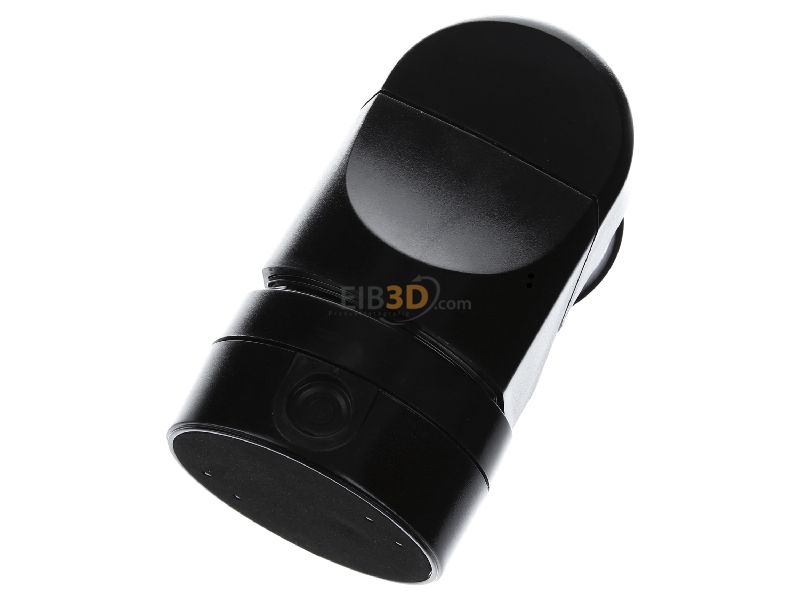

Top rear view BEG RC-plus next N280 sw Movement sensor 6m
Top rear view

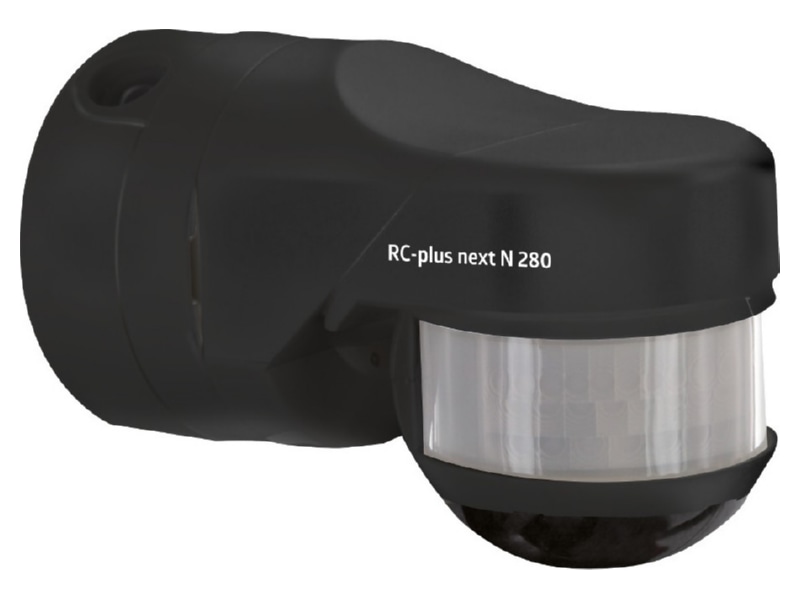

Product image BEG RC plus next N280 sw Movement sensor 6m
Product image

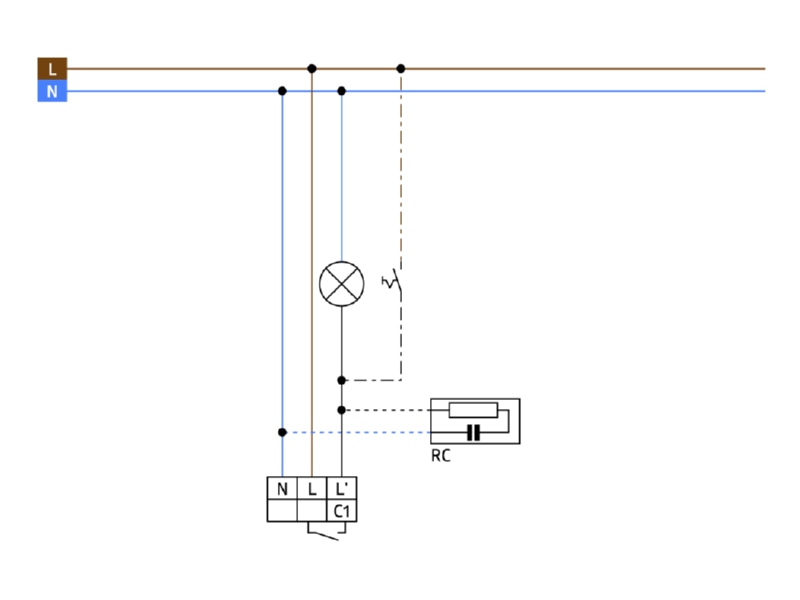

Wiring plan BEG RC plus next N280 sw Movement sensor 6m
Wiring plan

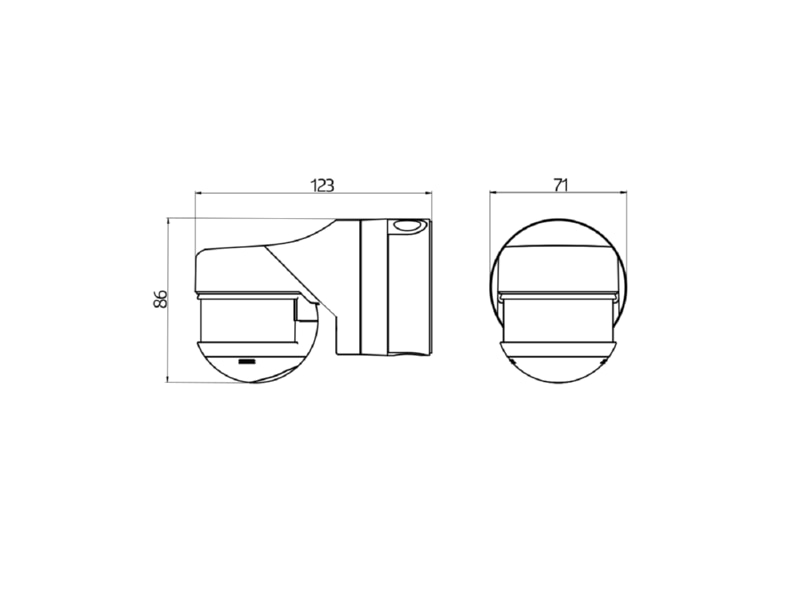

Dimensional drawing BEG RC plus next N280 sw Movement sensor 6m
Dimensional drawing

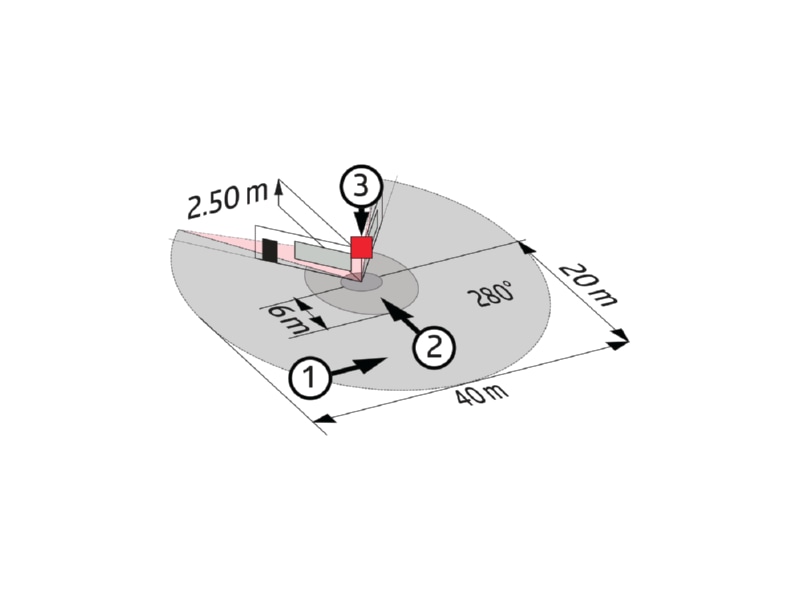

Cone diagram BEG RC plus next N280 sw Movement sensor 6m
Cone diagram
