Movement sensor 360° 6m PD3N-1C-DE
Source photo:
BEG
(fig. might be different or similar)

Movement sensor 360° 6m PD3N-1C-DE

EAN/GTIN: 4007529921966
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: PD3N-1C-DE
Manufact.-SKU: 92196
Customs tariff no.: 85365080
Similar top items: Show now & compare
61,81 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 360° 6m Model Movement sensor, Sensor type Passive infrared, Creep-under protection, Scan angle 360°, Optimum mounting height 2,5m, Staircase monitoring, Max. transmission range sideways 5m, Max. presence range 12m², Max. transmission range frontally 6m, Diameter detection range on floor 10m, Remote operation, Response value sensitivity adjustable, Response value luminosity adjustable, Teach-function for response value luminosity, Suitable for ceiling mounting, Mounting method Other, Connection type Push-in clamp, Material Plastic, Material quality Other, Halogen free, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (similar) 9010, Degree of protection (IP) IP23, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 240V, Min. switch-on time 15s, Max. duty cycle 30min, Detection angle horizontal 0 ... 360°, Response value luminosity 20 ... 2000lx, Max. switching power 2300W, Suitable for C-load, Temperature -25 ... 50°C, Max. starting current 165A, Control current 2mA, Width 83mm, Height 81mm, Depth 83mm, Diameter 83mm, Built-in depth 61mm, Built-in diameter 68mm

More product images:

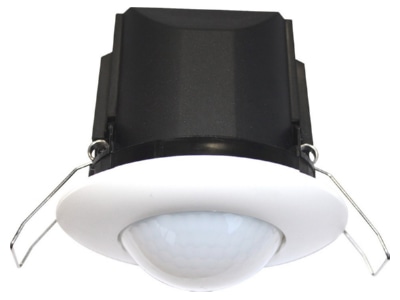

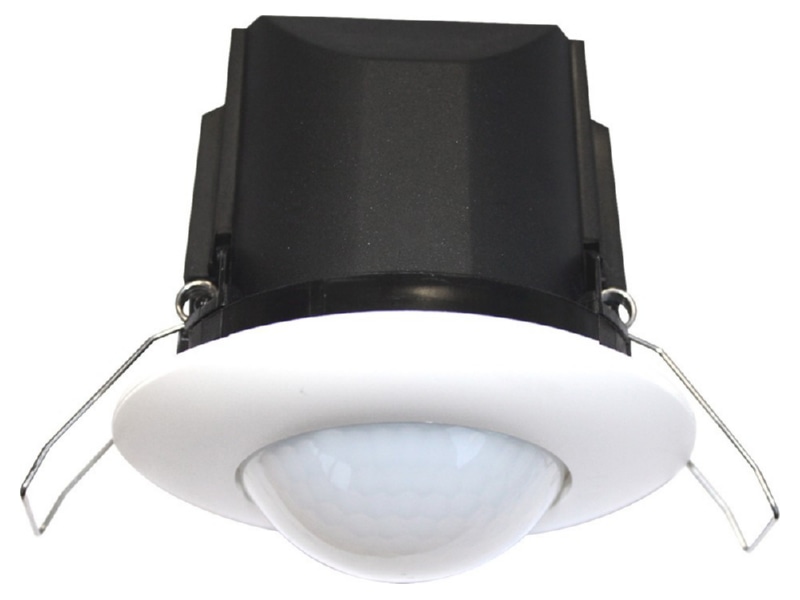

Product image BEG PD3N 1C DE Movement sensor 360  6m
Product image

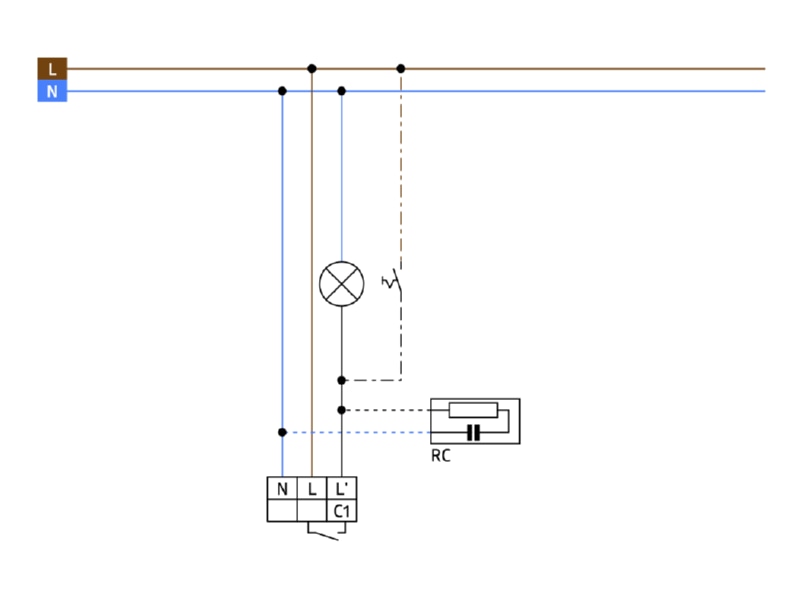

Wiring plan BEG PD3N 1C DE Movement sensor 360  6m
Wiring plan

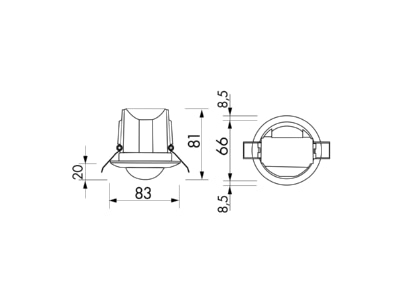

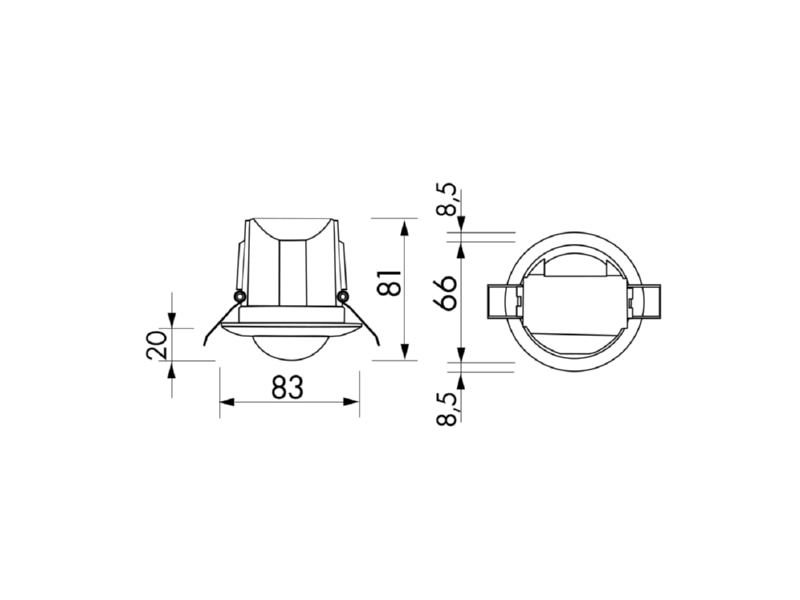

Dimensional drawing BEG PD3N 1C DE Movement sensor 360  6m
Dimensional drawing

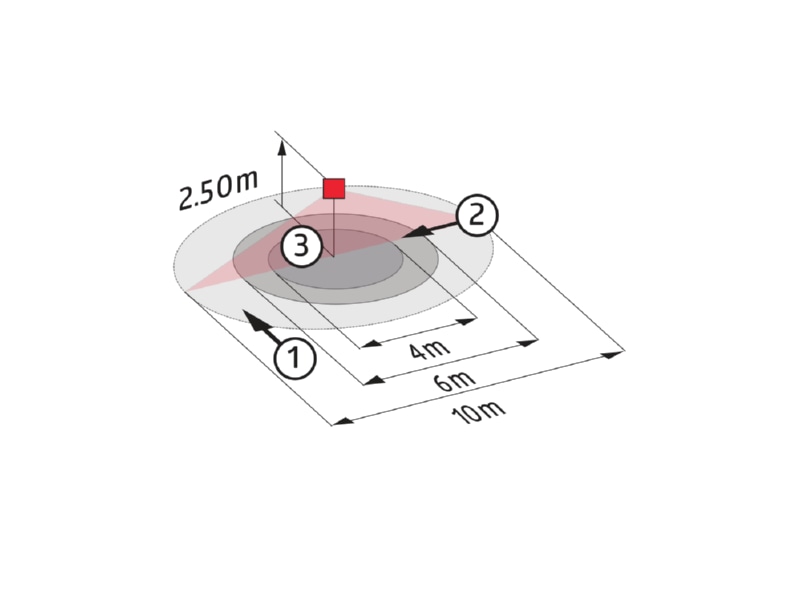

Cone diagram BEG PD3N 1C DE Movement sensor 360  6m
Cone diagram
