Movement sensor 20m PD4-S-K-AP IP54
Source photo:
BEG
(fig. might be different or similar)

Movement sensor 20m PD4-S-K-AP IP54

EAN/GTIN: 4007529924424
WEEE: DE 90433340
Manufacturer: BEG
Manufacturer no.: PD4-S-K-AP IP54
Manufact.-SKU: 92442
Customs tariff no.: 90314990
Similar top items: Show now & compare
79,51 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Movement sensor, Sensor type=Passive infrared, With DALI interface=no, HVAC-control=no, Animal zone=no, Creep-under protection=yes, Networkable=no, Optimum mounting height=2,5 m, Staircase light controller=yes, Bridging switch=no, Max. reach sideways=20 m, Max. presence range=0 m², Max. reach frontally=20 m, Diameter reach on floor=24 m, Suitable for wireless transmission=no, Remote operation=no, With remote control=no, Response value luminosity adjustable=no, With signal unit=no, Teach-function for response value luminosity=no, Dim function with dimmer basic element=no, Mounting method=Surface mounted, Suitable for ceiling mounting=yes, Suitable for wall mounting=no, Material=Plastic, Material quality=Other, Halogen free=yes, Surface protection=Untreated, Surface finishing=Matt, Anti-bacterial treatment=no, Colour=White, RAL-number (similar)=9010, Transparent=no, Degree of protection (IP)=IP54, Impact strength=IK04, Voltage type=AC, Frequency=50..60 Hz, Switch-off delay=0 s, Switching-on delay=0 s, Suitable for C-load=no, Temperature=-25..50 °C, Number of switching zones=1200, Control current=1 mA, Substation input=no, With alarm function=no, Height=76 mm, Diameter=101 mm, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

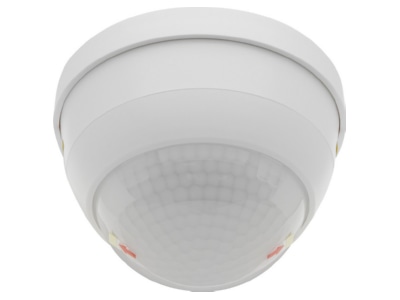

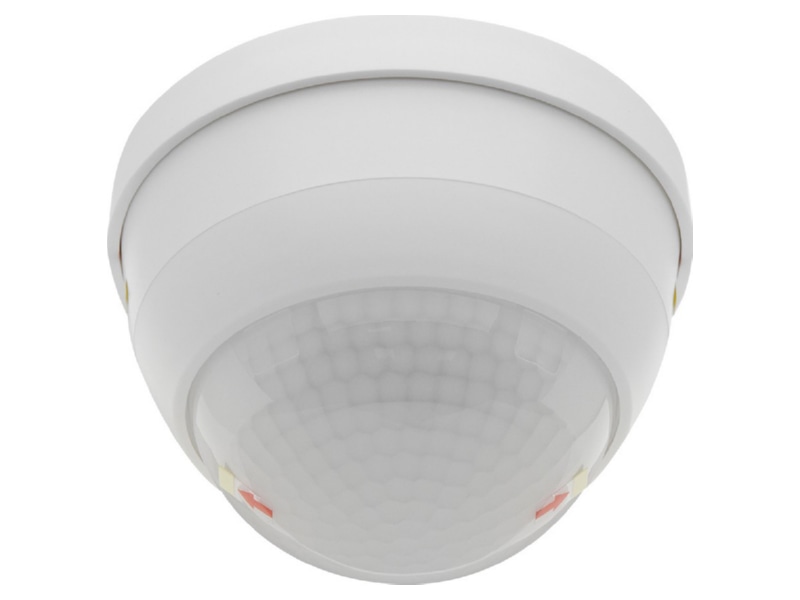

Product image BEG PD4 S K AP IP54 Movement sensor 20m
Product image

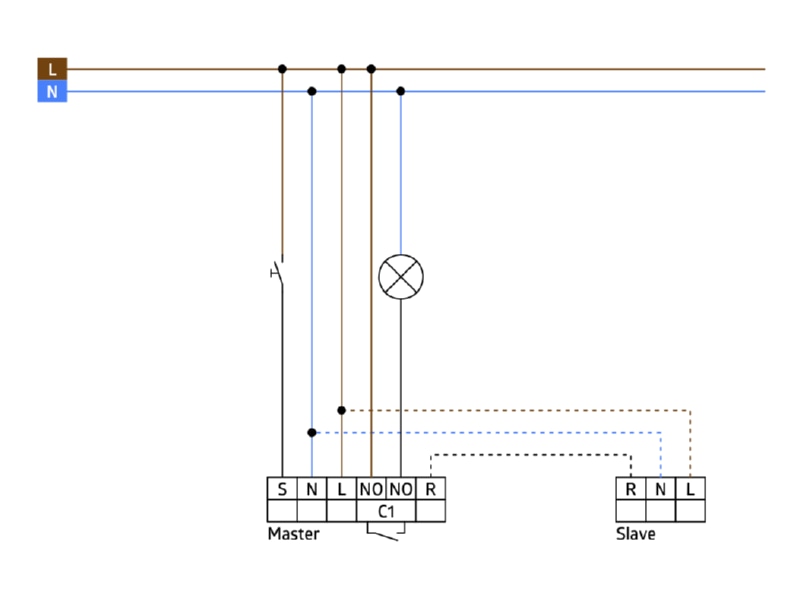

Wiring plan BEG PD4 S K AP IP54 Movement sensor 20m
Wiring plan

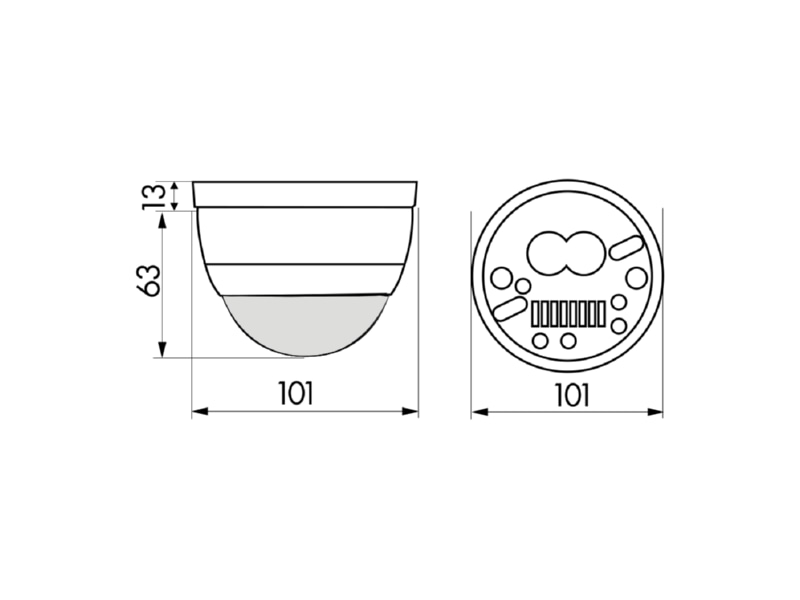

Dimensional drawing BEG PD4 S K AP IP54 Movement sensor 20m
Dimensional drawing

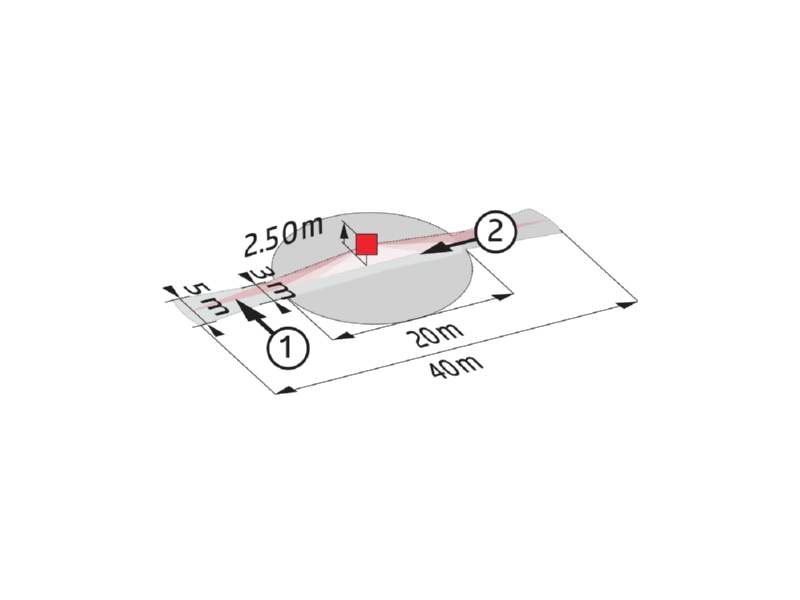

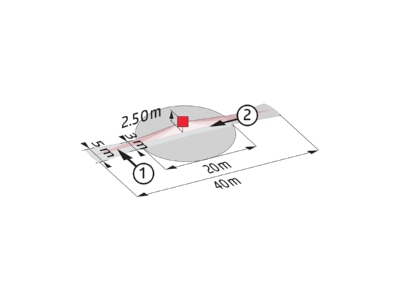

Cone diagram BEG PD4 S K AP IP54 Movement sensor 20m
Cone diagram
