Transponder safety proximity switch 15mm 2TLA020051R5100

EAN/GTIN: 7350024480306
WEEE: DE 91945327
Manufacturer: ABB
Manufacturer no.: 2TLA020051R5100
Customs tariff no.: 85365080
Similar top items: Show now & compare
86,33 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Transponder safety proximity switch 15mm Number of semiconductor outputs with signalling function 0, Number of contact energized outputs with signalling function 0, Number of protected semiconductor outputs 1, Number of protected contact energized outputs 0, Type of actuation Transponder, Type of interface for safety communication Other, Type of electric connection Connector M12, Type of switching output Other, Width sensor 30mm, Height of sensor 75,2mm, Length of sensor 12mm, Explosion safety category for gas None, Explosion safety category for dust None, Construction type housing Special construction, Material housing Plastic, Coating housing Uncoated, Protected switch distance OFF 25mm, Protected switch distance ON 10mm, Category according to EN 954-1 4, SIL according to IEC 61508 None, Performance level acc. EN ISO 13849-1 None, Ambient temperature 70 ... 70°C, Mechanical mounting condition for sensor Other, Rated supply voltage at AC 50 Hz 0V, Rated supply voltage at AC 60 Hz 0V, Rated supply voltage at DC 24 ... 24V, Voltage type DC, Cross-/short circuit identification possible, Switching distance 15mm, Suitable for safety functions, With status indication, Degree of protection (IP) IP67, Degree of protection (NEMA) Other

More product images:

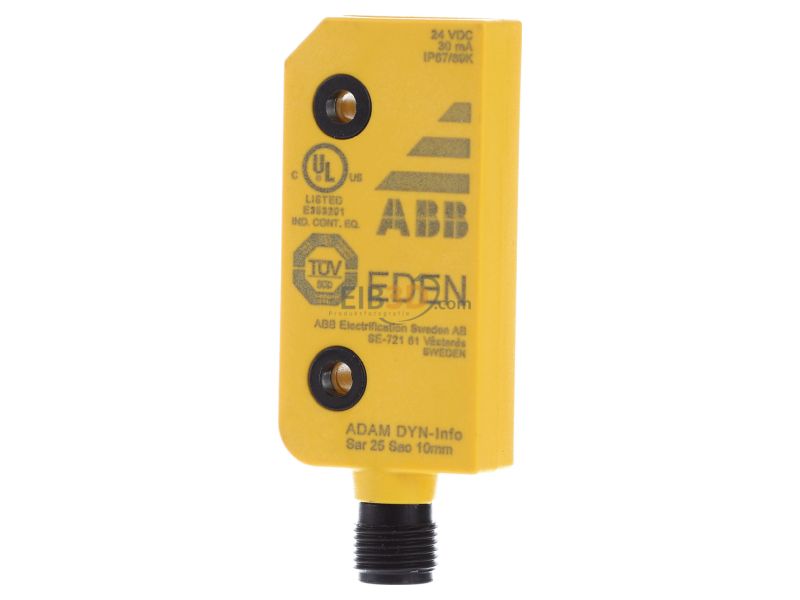

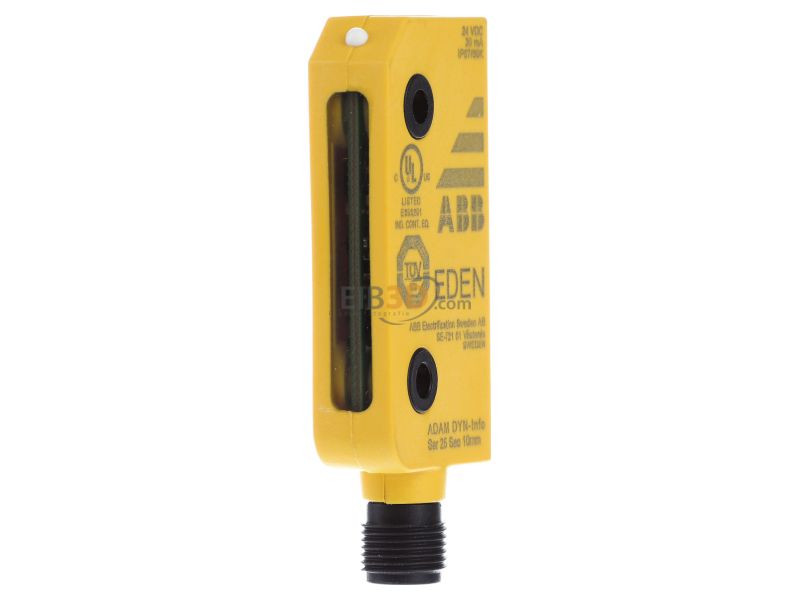

Front view ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
Front view
View on the left ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
View on the left

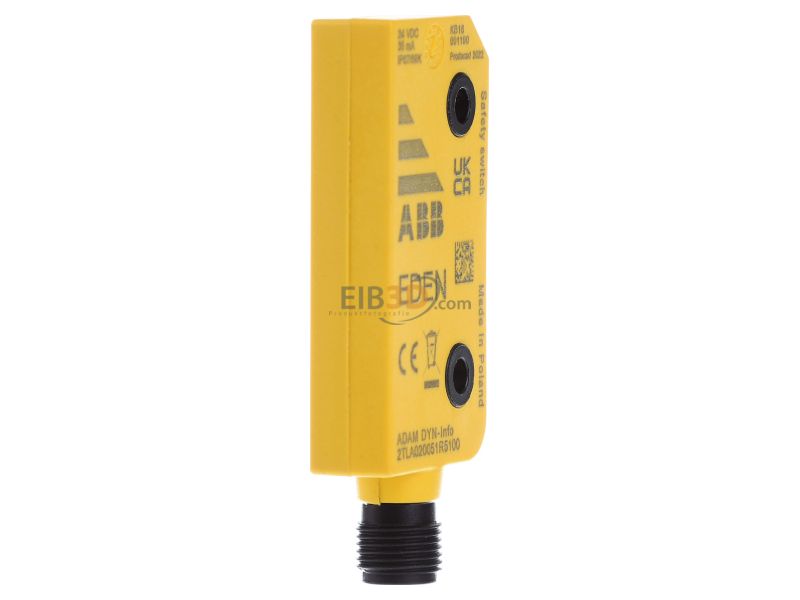

View on the right ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
View on the right

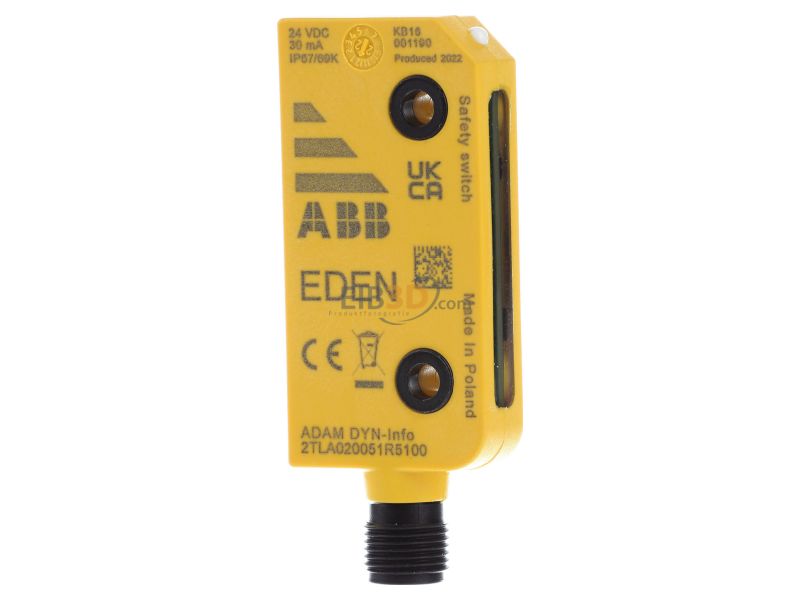

Back view ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
Back view

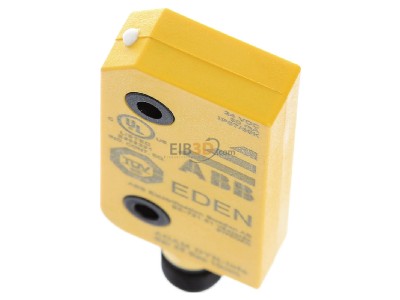

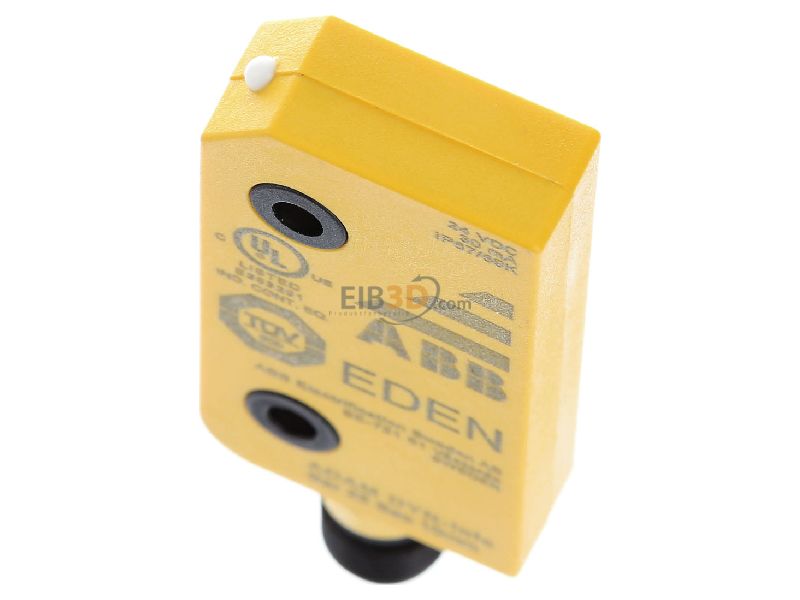

View up front ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
View up front

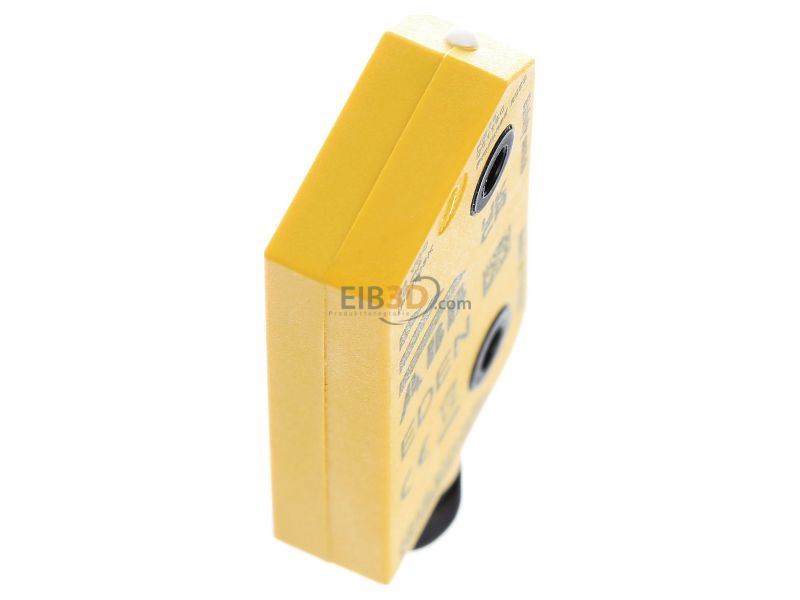

View top left ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
View top left

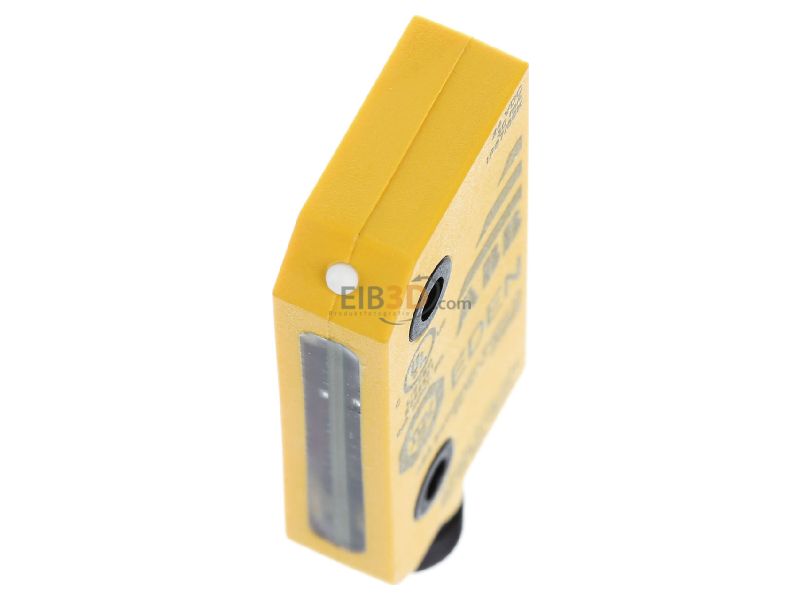

View top right ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
View top right

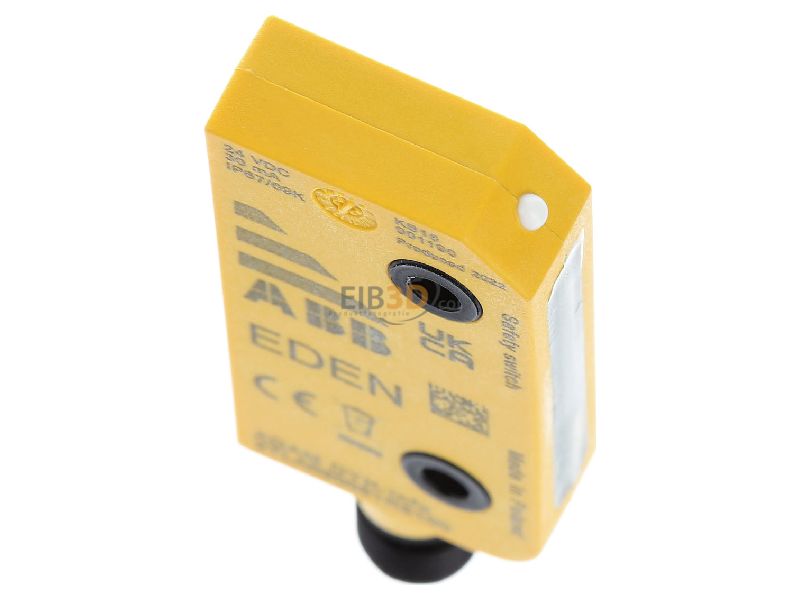

Top rear view ABB 2TLA020051R5100 Transponder safety proximity switch 15mm
Top rear view
