Voltage monitoring relay 3...600V AC/DC CM-ESS.2S 24-240V

EAN/GTIN: 4016779852166
WEEE: DE 91945327
Manufacturer: ABB
Manufacturer no.: CM-ESS.2S 24-240V
Manufact.-SKU: 1SVR730830R0400
Customs tariff no.: 85364900
Similar top items: Show now & compare
169,81 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Voltage monitoring relay 3...600V AC/DC Type of electric connection Screw connection, Single-phase under voltage possible, Single-phase over voltage possible, Single-phase hysteresis possible, Contains function DC-under voltage, Contains function DC-over voltage, Contains function DC-voltage hysteresis, Voltage measurement range 1 3 ... 600V, Type of voltage measurement range AC/DC, Rated control supply voltage Us at AC 50HZ 24 ... 240V, Rated control supply voltage Us at AC 60HZ 24 ... 240V, Rated control supply voltage Us at DC 24 ... 240V, Voltage type for actuating AC/DC, Response value voltage 3 ... 600V, Min. adjustable delay-on energization time 0s, Max. permitted delay-on energization time 0s, Min. adjustable off-delay time 0,1s, Max. permitted off-delay time 30s, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 2, Width 22,5mm, Height 85,6mm, Depth 103,7mm

More product images:

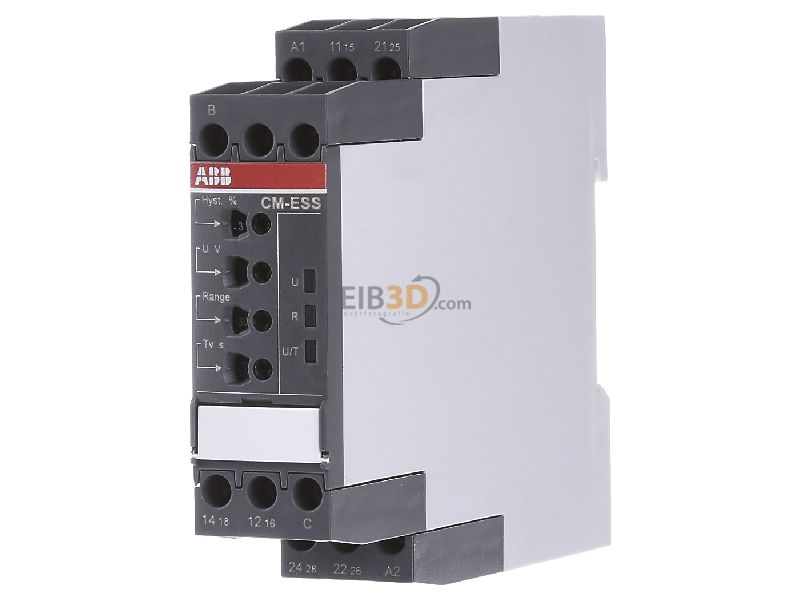

Front view ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
Front view

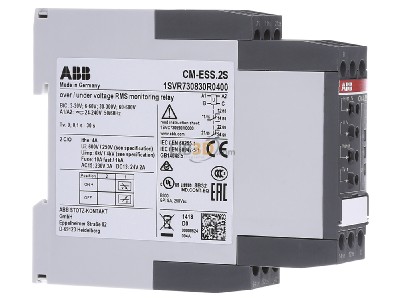

View on the left ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
View on the left

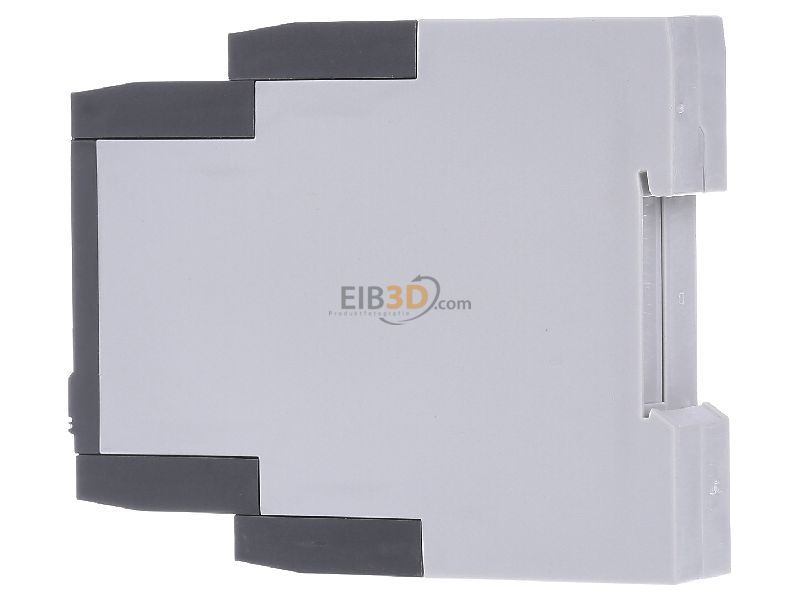

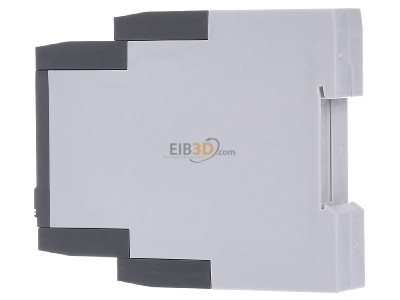

View on the right ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
View on the right

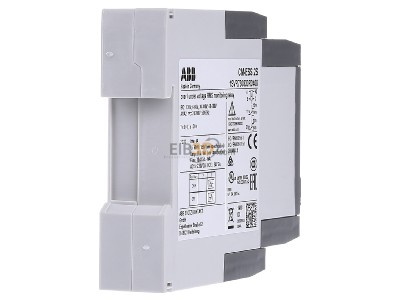

Back view ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
Back view

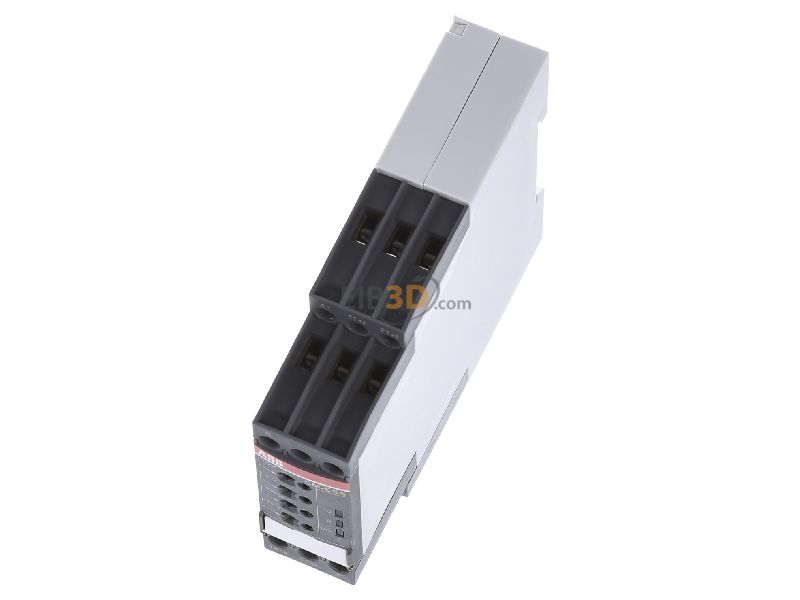

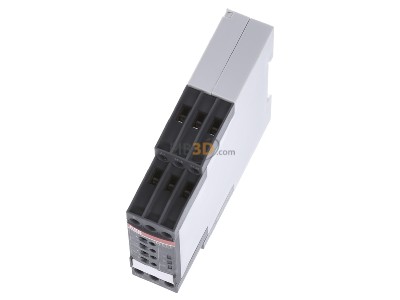

View up front ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
View up front

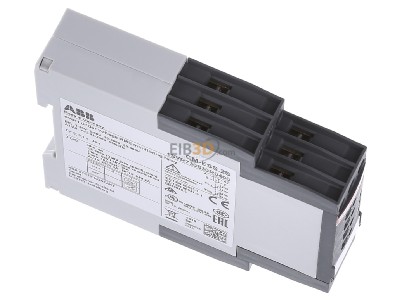

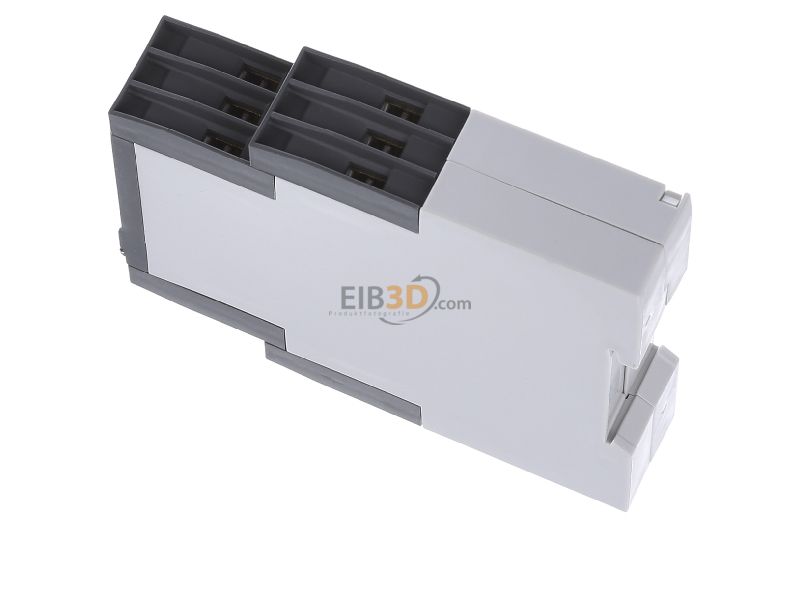

View top left ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
View top left
View top right ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
View top right

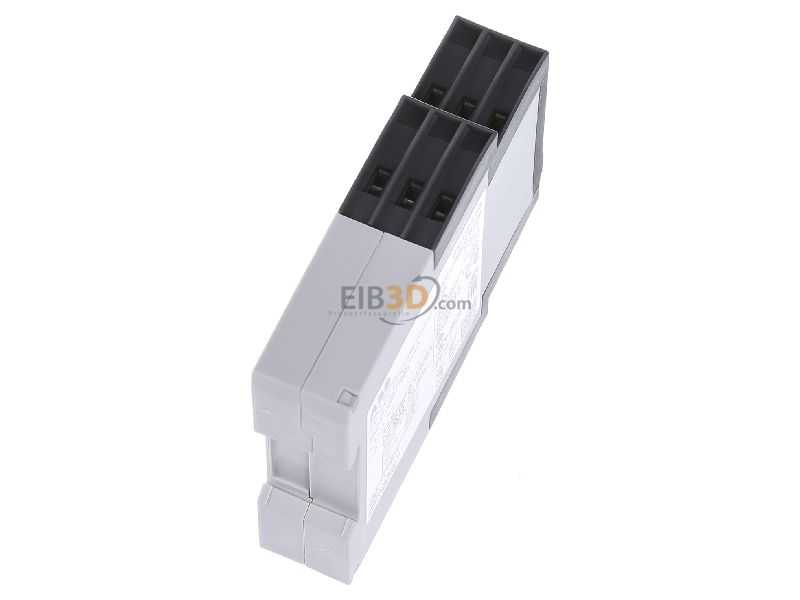

Top rear view ABB CM-ESS.2S 24-240V Voltage monitoring relay 3...600V AC/DC
Top rear view
