Source photo: www.EIB3D.com

Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105

EAN/GTIN: 8012542359456
WEEE: DE 91945327
Manufacturer: ABB
Manufacturer no.: DS301C B10 A30#R1105
Manufact.-SKU: 2CSR255163R1105
Customs tariff no.: 85363010
Similar top items: Show now & compare
41,41 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Earth leakage circuit breaker B10/0,03A Number of poles (total) 1, Number of protected poles 1, Rated voltage 240V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated current 10A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity according to EN 61009 6kA, Rated short-circuit breaking capacity according to IEC 60947-2 6kA, Rated short-circuit breaking capacity Icn according to EN 61009-1 6kA, Disconnection characteristic Undelayed, Voltage type AC, Frequency 50 Hz, Release characteristic B, Concurrently switching neutral conductor, Over voltage category 3, Pollution degree 2, Ambient temperature during operating -25 ... 55°C, Width in number of modular spacings 1, Built-in depth 17,6mm, Degree of protection (IP) IP20, Connectable conductor cross section solid-core 1,5 ... 16mm², Connectable conductor cross section multi-wired 1,5 ... 10mm²

More product images:

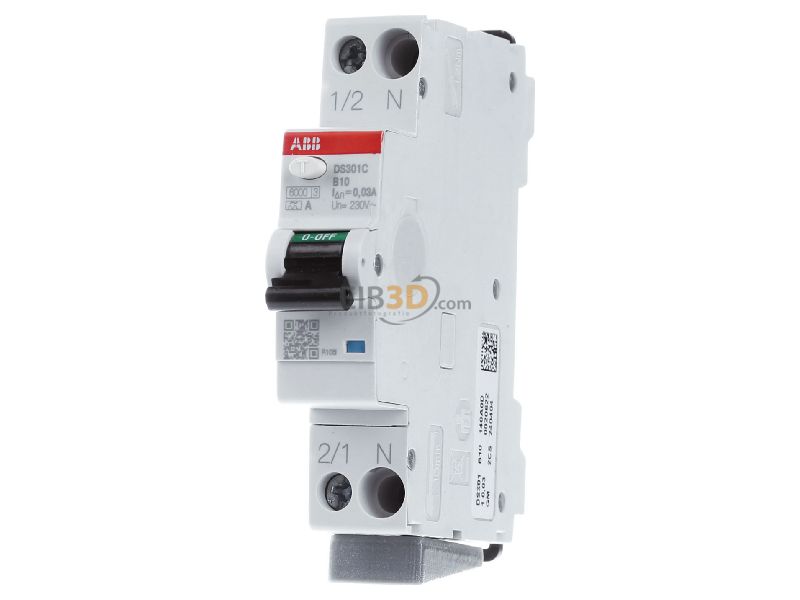

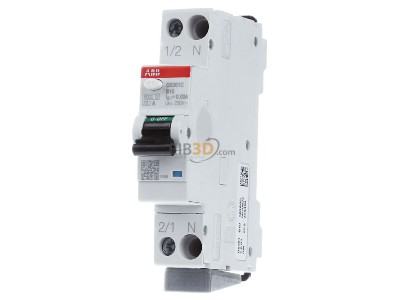

Front view ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
Front view

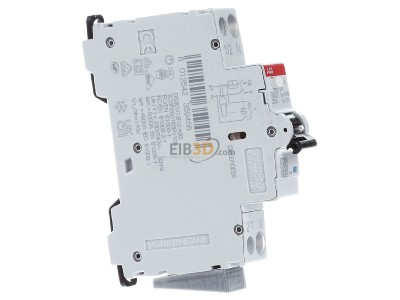

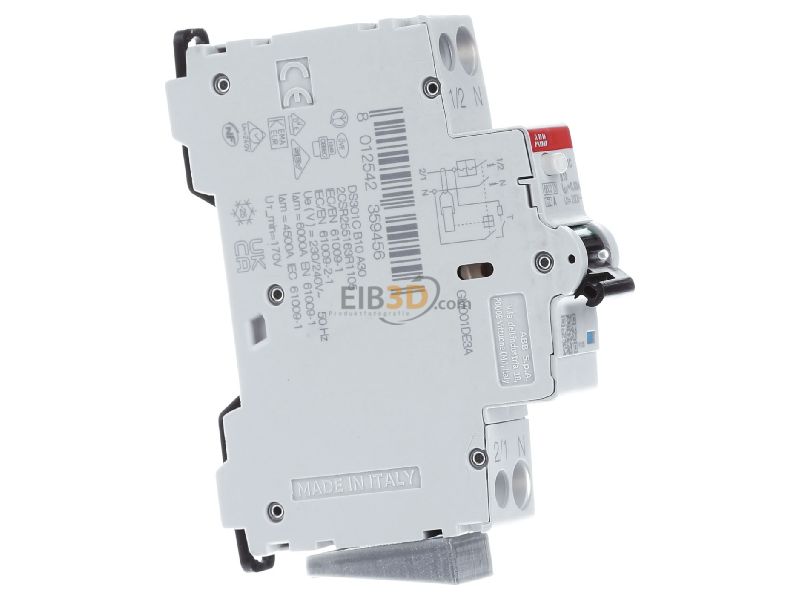

View on the left ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
View on the left

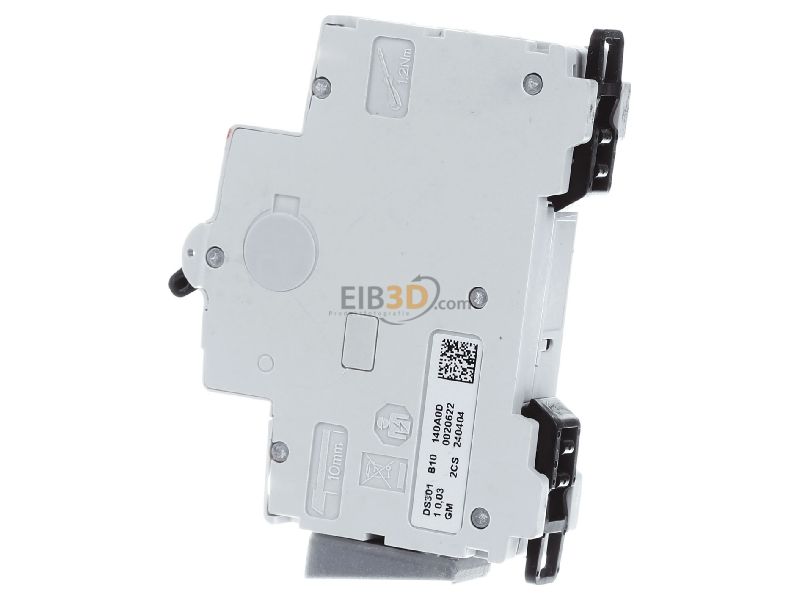

View on the right ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
View on the right

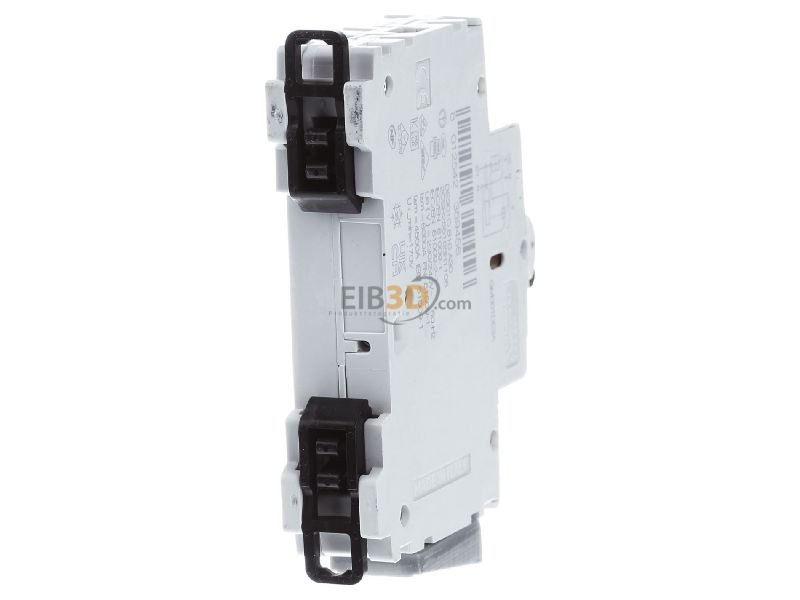

Back view ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
Back view

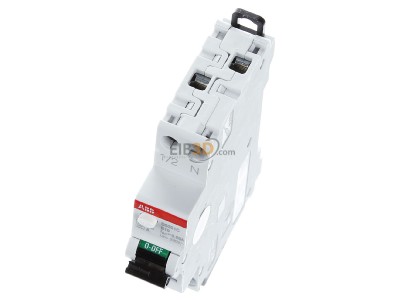

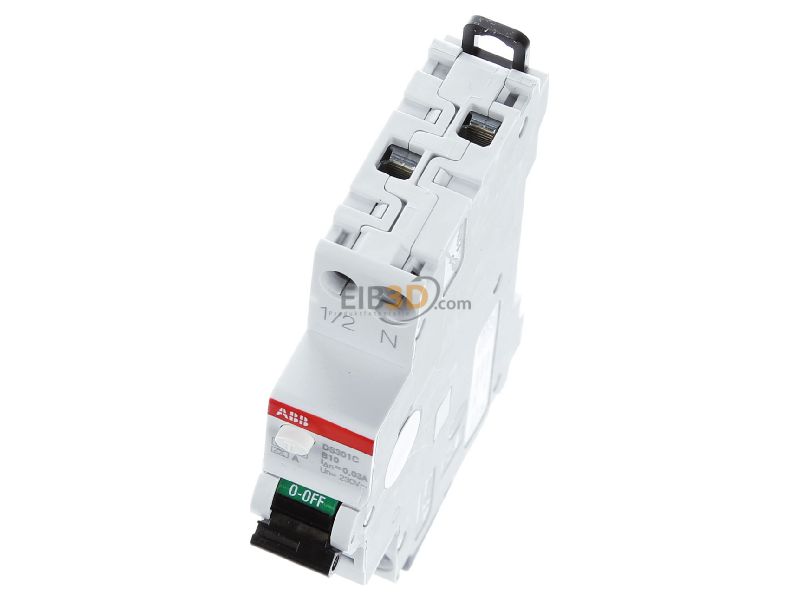

View up front ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
View up front

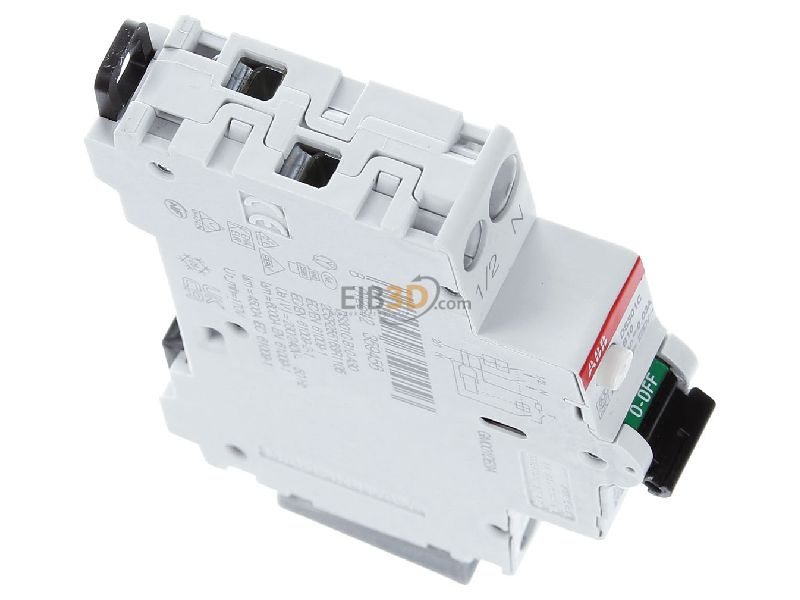

View top left ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
View top left

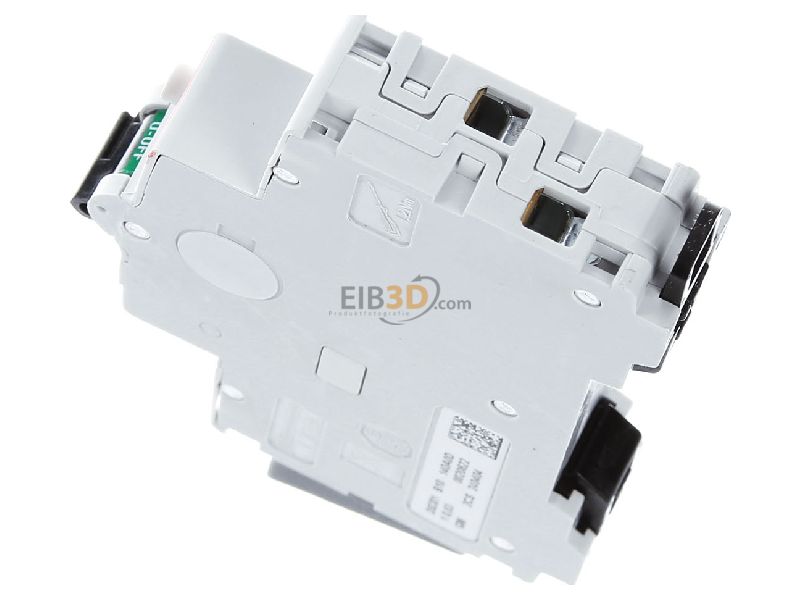

View top right ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
View top right

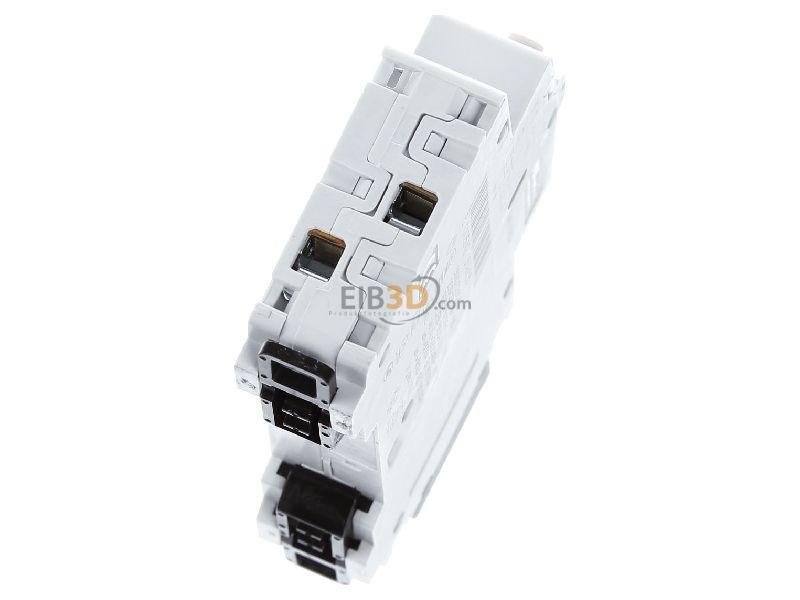

Top rear view ABB DS301C B10 A30#R1105 Earth leakage circuit breaker B10/0,03A DS301C B10 A30R1105
Top rear view
