Source photo: www.EIB3D.com

Automatic changeover switch 4-pole 63A OTM63F4C21D400C

EAN/GTIN: 6417019815688
WEEE: DE 91945327
Manufacturer: ABB
Manufacturer no.: OTM63F4C21D400C
Manufact.-SKU: 1SCA151255R1001
Customs tariff no.: 85365080
Similar top items: Show now & compare
809,70 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Automatic changeover switch 4-pole 63A OTM63F4C21D400C Design as a main switch, design as a maintenance/repair switch, number of switches 1, max as a normally open contact 0, number of auxiliary contacts as a changeover contact 0, motor drive integrated, device design built-in device plug-in insert technology, suitable for front mounting 4-hole, suitable for distribution board installation, design of the actuating element long rotary handle, main circuit connection type bolt connection, protection class (IP), front IP20, protection class (NEMA ) 1, Automatic diverter switches meet the device standards DIN EN 60947-1, DIN EN 60947-3 and DIN EN 60947-6-1. The switches have an open changeover (I-0-II) and are suitable for use as an automatic transfer switch. An OMD control unit is included. The motor control voltage is between 220 V to 240 V AC. The motor drive is controlled via a button or a central control center. The included handle for emergency operation can optionally be locked in the OFF position. Remote control is prevented by installing the handle or by installing a lock. Furthermore, the switches can be used in the AC and DC range. The automatic diverter switches can be installed vertically, horizontally and flat. The switches are available in a compact version in versions from 40 A to 125 A. As accessories, ABB offers black handles for emergency operation, auxiliary contacts, fourth poles, N and PE terminals, terminal covers, connection terminals and much more.

More product images:

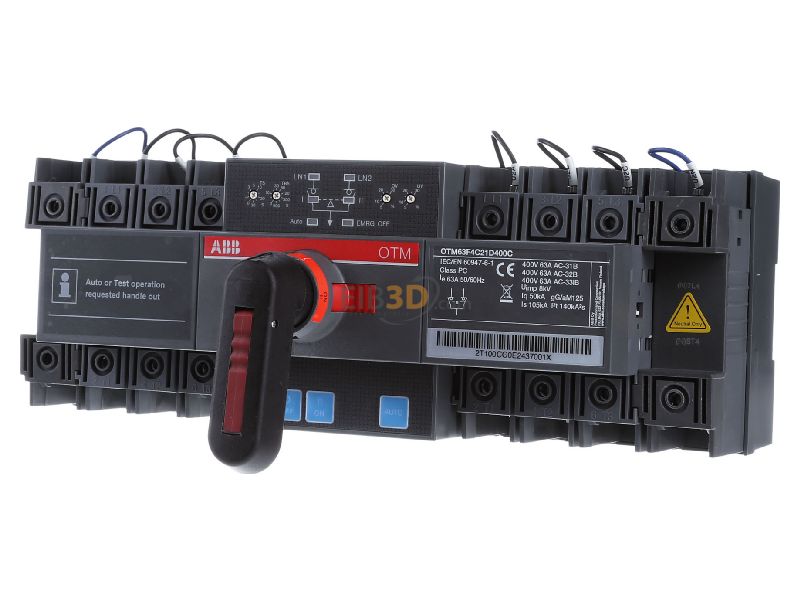

Front view ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
Front view

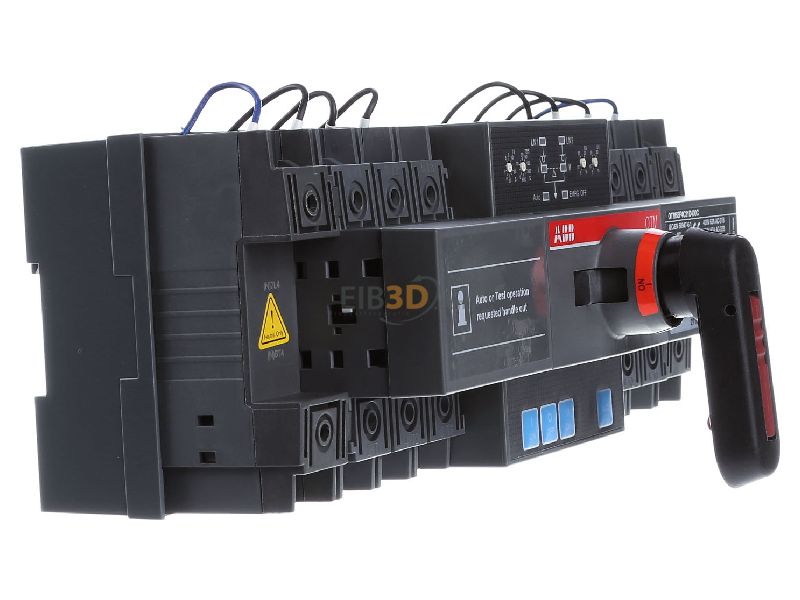

View on the left ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
View on the left

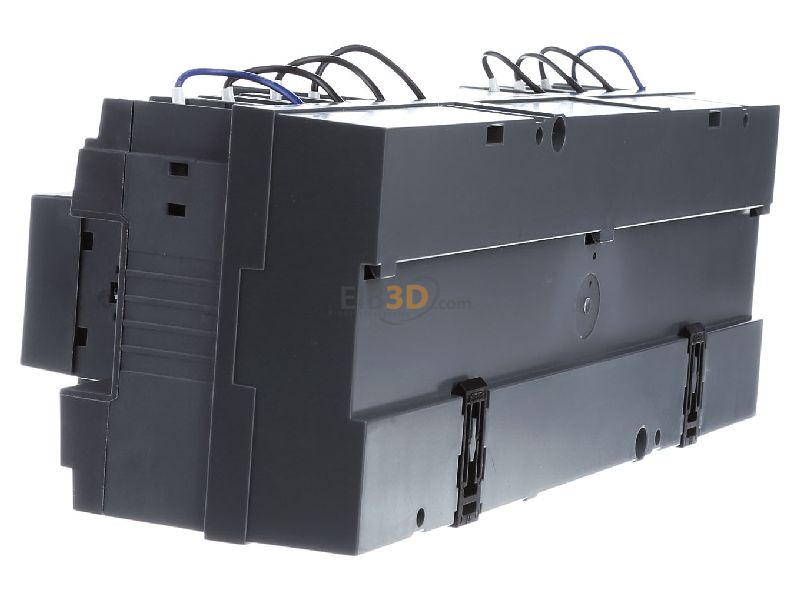

View on the right ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
View on the right

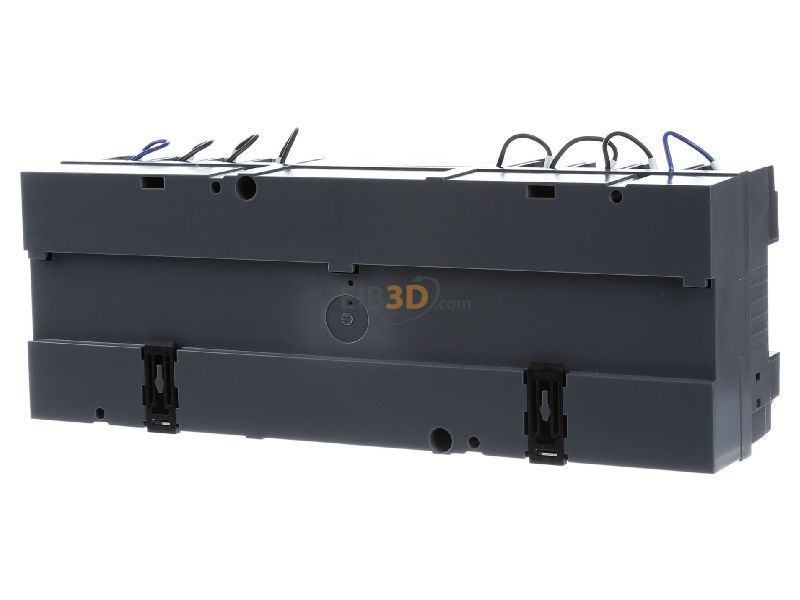

Back view ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
Back view

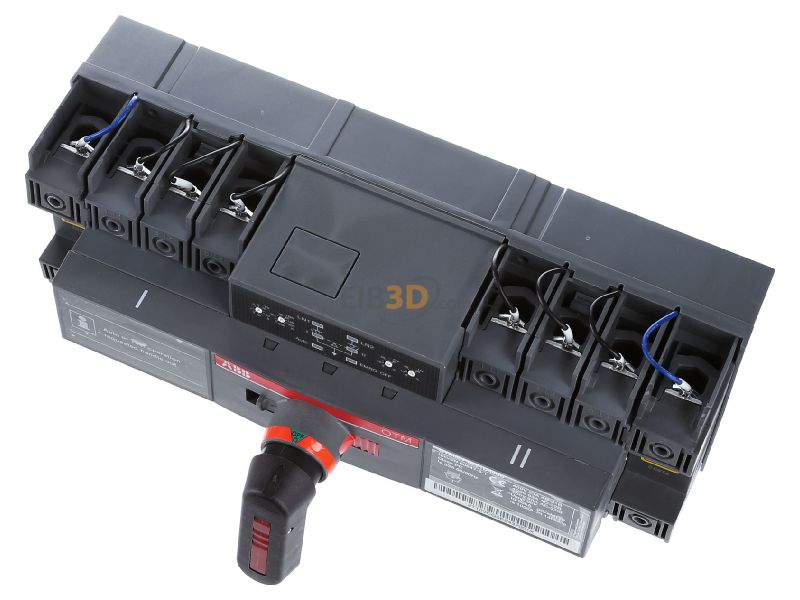

View up front ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
View up front

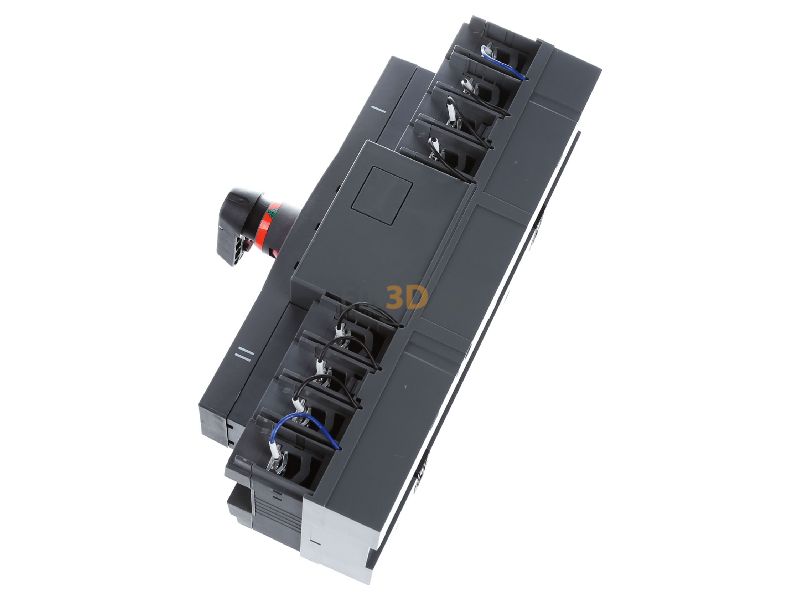

View top left ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
View top left

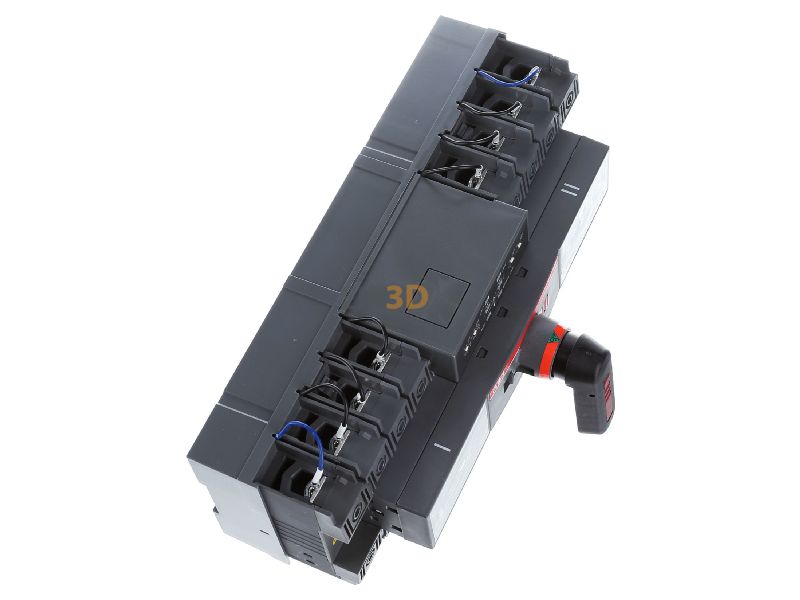

View top right ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
View top right

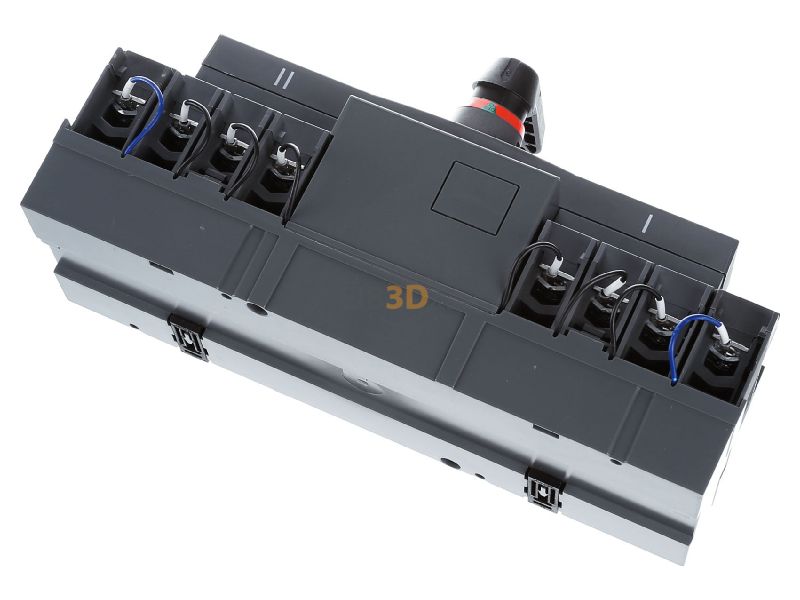

Top rear view ABB OTM63F4C21D400C Automatic changeover switch 4-pole 63A
Top rear view
