Connector to screw Up to 30 kV BSM-95/240-U
Source photo:
Krüger-Werke
(fig. might be different or similar)

Connector to screw Up to 30 kV BSM-95/240-U

EAN/GTIN: 4042368852071
Manufacturer: Krüger-Werke
Manufacturer no.: BSM-95/240-U
Manufact.-SKU: E96021N001
Customs tariff no.: 85359000
Order level:
(minimum)
60 pce
Similar top items: Show now & compare
1.999,88 GBP Price incl. VAT (0,00 GBP)
(for 60 pce)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 60 pce orderable.
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Nominal cross section copper, RM=95..240 mm², Nominal cross section copper, SM=95..150 mm², Nominal cross section aluminium, RM=95..240 mm², Nominal cross section aluminium, RE=95..240 mm², Nominal cross section aluminium, SM=95..185 mm², Nominal cross section aluminium, SE=95..150 mm², Material conductor=Aluminium/copper, Surface protection=Tinned, Oil stop/centre bar=no, With insulation=no, Voltage level=Up to 30 kV, Number of screws=4

More product images:

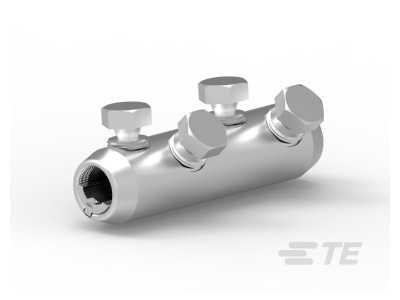

Product image 1 Krueger Werke BSM 95 240 U Connector to screw Up to 30 kV
Product image 1

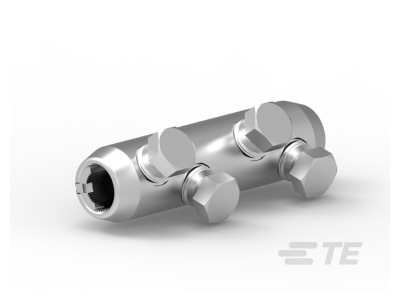

Product image 2 Krueger Werke BSM 95 240 U Connector to screw Up to 30 kV
Product image 2
