Source photo: www.EIB3D.com

Retroreflective photoelectric sensor

EAN/GTIN: 3389119617628
Manufacturer: STHU
Manufacturer no.: XUK1ARCNL2H61
Customs tariff no.: 85365080
Similar top items: Show now & compare
54,90 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Pre failure notice=no, With time function=no, Rated switching distance=7000 mm, Max. switching distance=10000 mm, Max. output current=3000 mA, With reflector=yes, Analogue output 0 V ... 10 V=no, Analogue output 0 mA ... 20 mA=no, Analogue output 4 mA ... 20 mA=no, Analogue output -10 V ... +10 V=no, With other analogue output=no, Setting procedure=Teach-In, With communication interface analogue=no, With communication interface AS-Interface=no, With communication interface CANOpen=no, With communication interface DeviceNet=no, With communication interface Ethernet=no, With communication interface INTERBUS=no, With communication interface PROFIBUS=no, With communication interface RS-232=no, With communication interface RS-422=no, With communication interface RS-485=no, With communication interface SSD=no, With communication interface SSI=no, Number of semiconductor outputs with signalling function=1, Type of interface for safety communication=Other, Type of electric connection=Cable radial, Type of switching output=Relay contact, Type of switch function=Change-over contact (NO/NC), Operation agent-safety class=Safety class 0, Explosion safety category for gas=None, Explosion safety category for dust=None, Construction type housing=Cuboid, Width sensor=18 mm, Height of sensor=50 mm, Length of sensor=50 mm, Sensing mode=Light switching, Material of optical surface=Plastic, Material housing=Plastic, Max. output current at protected output=3000 mA, Min. reflector distance=5000 mm, Ambient temperature=-25..55 °C, Response time=25 ms, Switching frequency=20 Hz, Type of safety according to IEC 61496-1=1, Rated control supply voltage Us at AC 50HZ=24..240 V, Rated control supply voltage Us at AC 60HZ=24..240 V, Rated control supply voltage Us at DC=24..240 V, Voltage type=AC/DC, With monitoring function downstream switching devices=no, Laser protection class=None, Type of light=Infrared light, With restart blockage=no, Suitable for safety functions=no, Degree of protection (IP)=IP65

More product images:

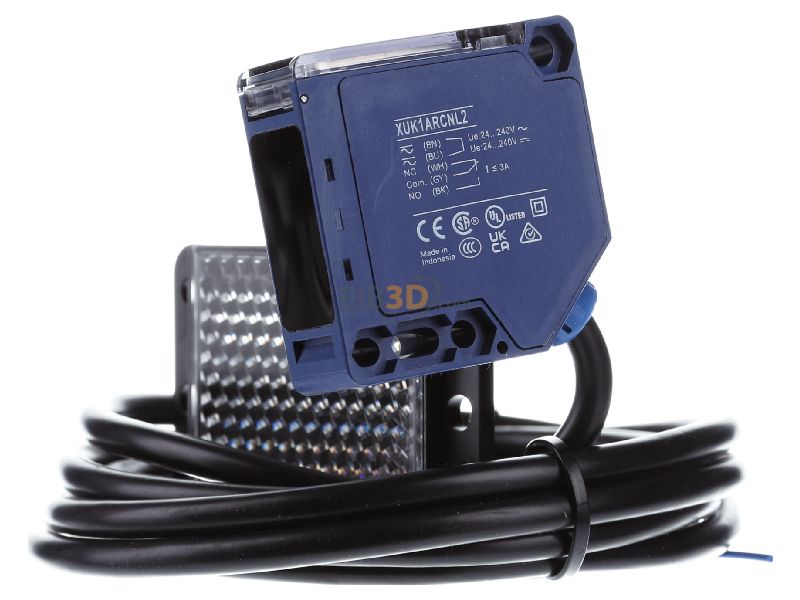

Front view STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
Front view

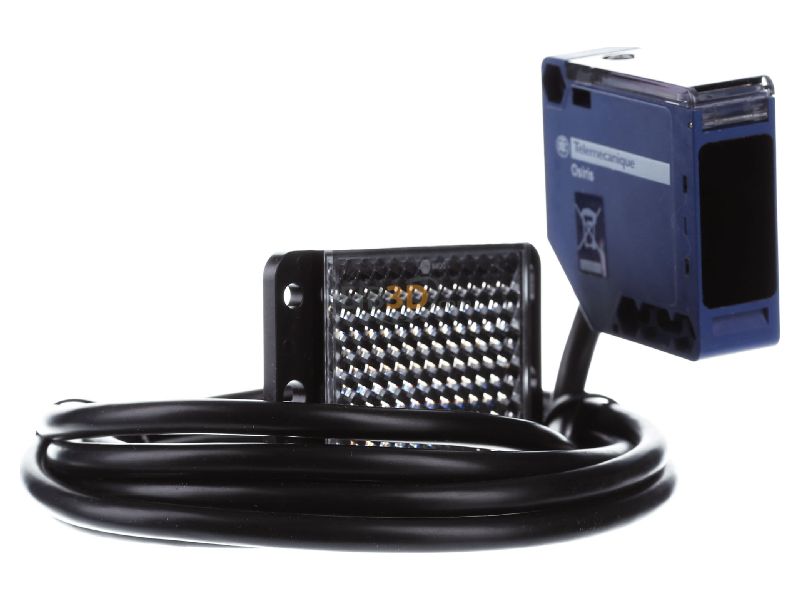

View on the left STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
View on the left

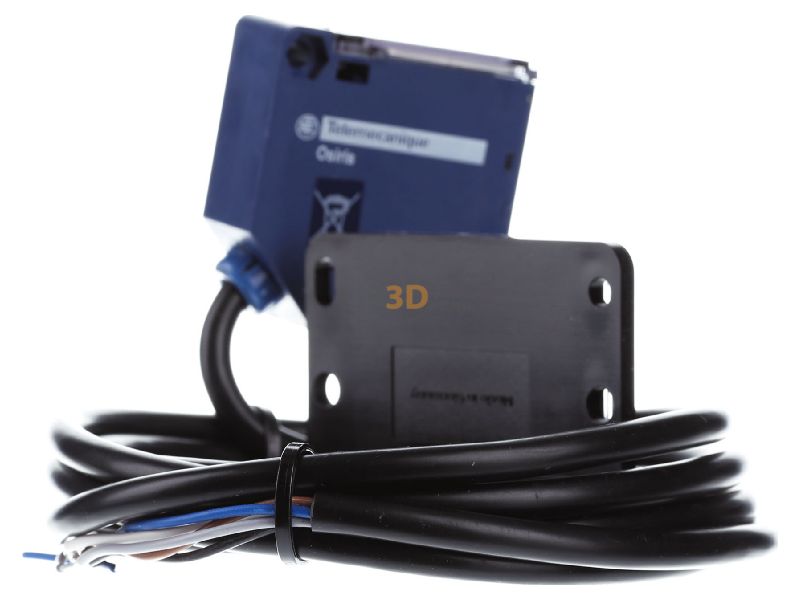

View on the right STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
View on the right

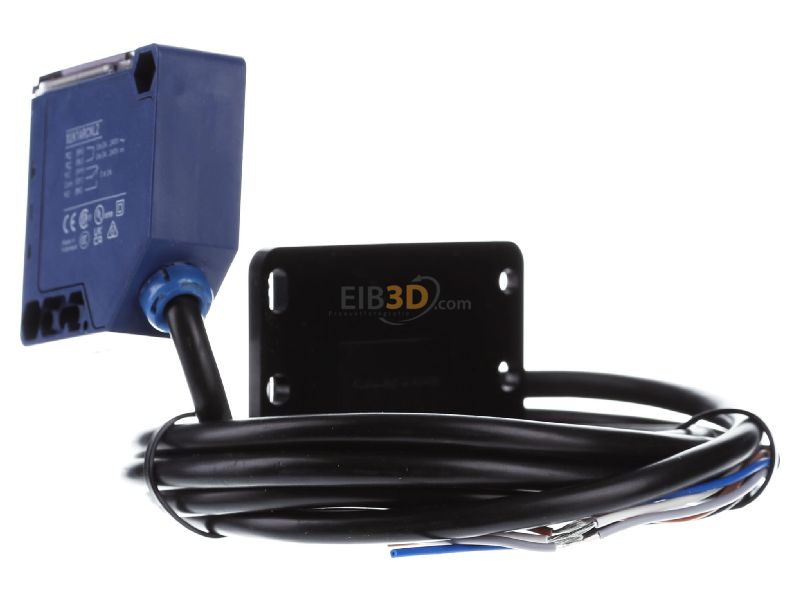

Back view STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
Back view

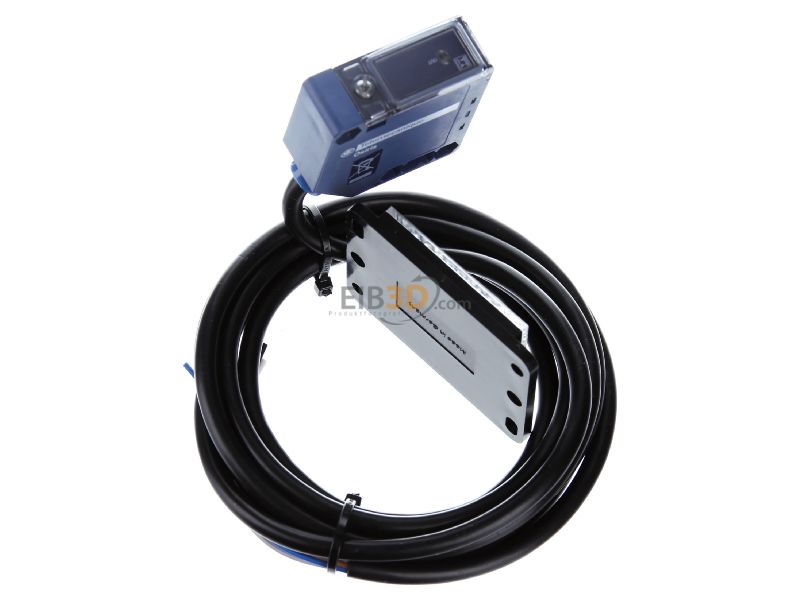

View up front STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
View up front

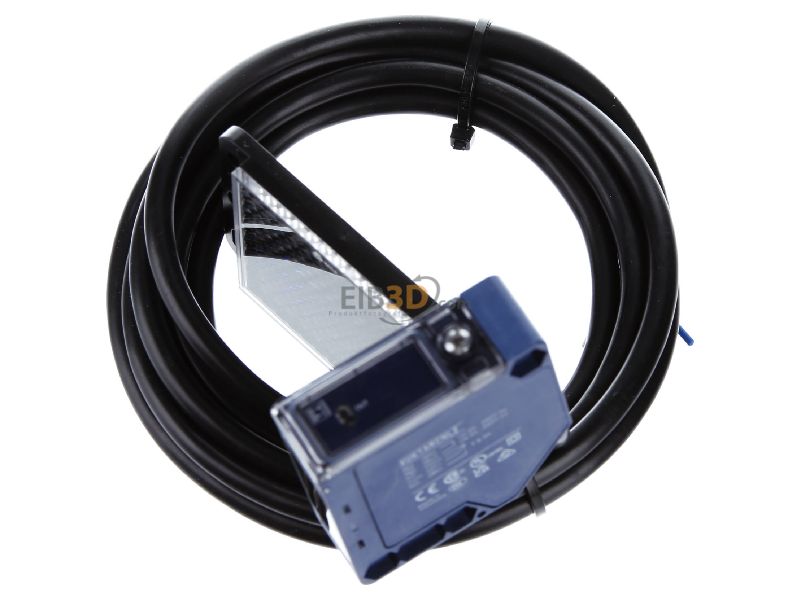

View top left STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
View top left

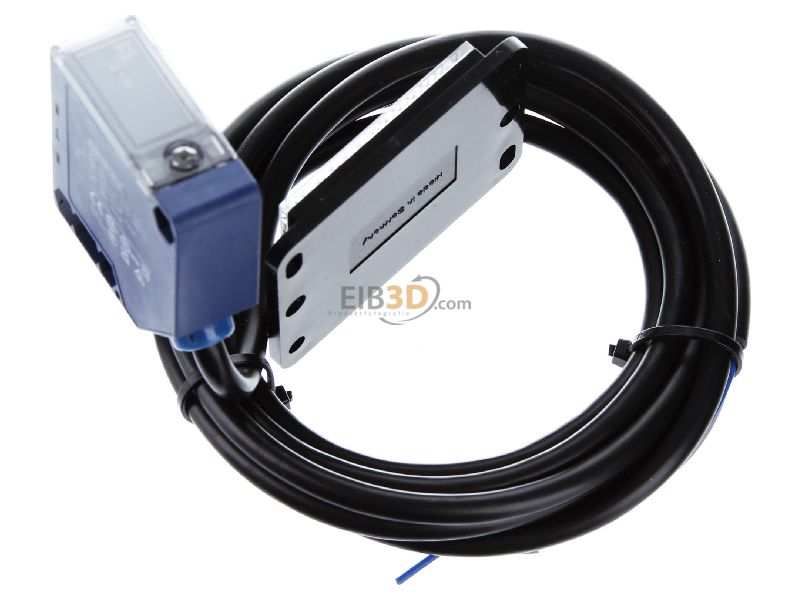

View top right STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
View top right

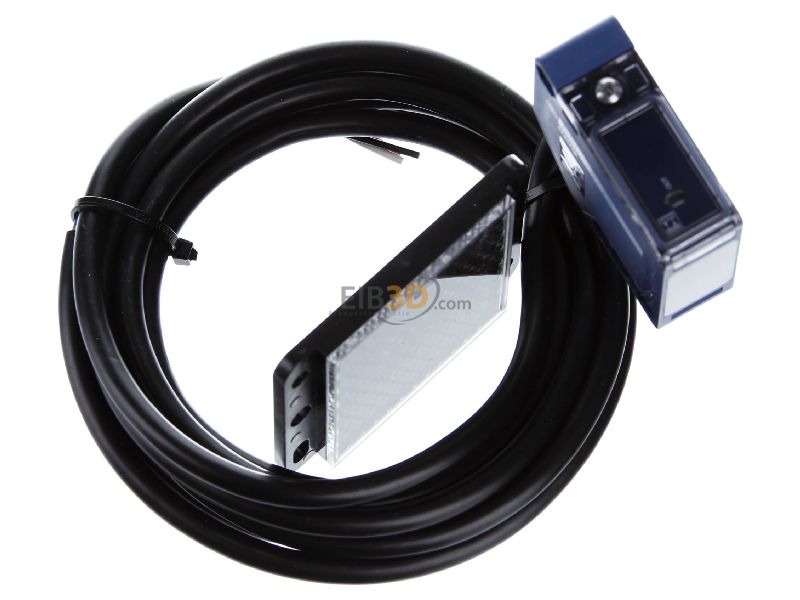

Top rear view STHU XUK1ARCNL2H61 Retroreflective photoelectric sensor
Top rear view
