BAOS module for Raspberry Pi TP838 kberry

EAN/GTIN: 4260262772084
Manufacturer: WEINZIERL
Manufacturer no.: 5208
Customs tariff no.: 85176200
Similar top items: Show now & compare
39,36 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
13-15 days [GB] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

The Weinzierl KNX BAOS modules are a powerful and cost-effective solution for KNX connectivity in the form of a compact board. They are primarily aimed at manufacturers who want to integrate existing or new products into the KNX system as fully compatible devices with full support of the ETS software. The KNX BAOS module 838 kBerry is an adaptation of our proven KNX BAOS modules specifically for the Raspberry Pi Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B Raspberry Pi is a registered trademark of the Raspberry Pi Foundation. It can be plugged directly onto the pin header of the Raspberry Pi and communicates in a galvanically isolated manner via a serial port. The module includes a certified KNX stack and can be configured with the ETS. A generic ETS database offers up to 1,000 data points. Individual ETS entries can be created using the KNX manufacturer tool (KNX MT). The KNX part is powered from the bus. To implement software for the BAOS Object Server, the BAOS SDK is available as a free download. In order to use the kBerry module as a telegram interface, the kdriveExpress SDK for the Raspberry Pi can be used. A free version of kDrive Express is also available.

More product images:

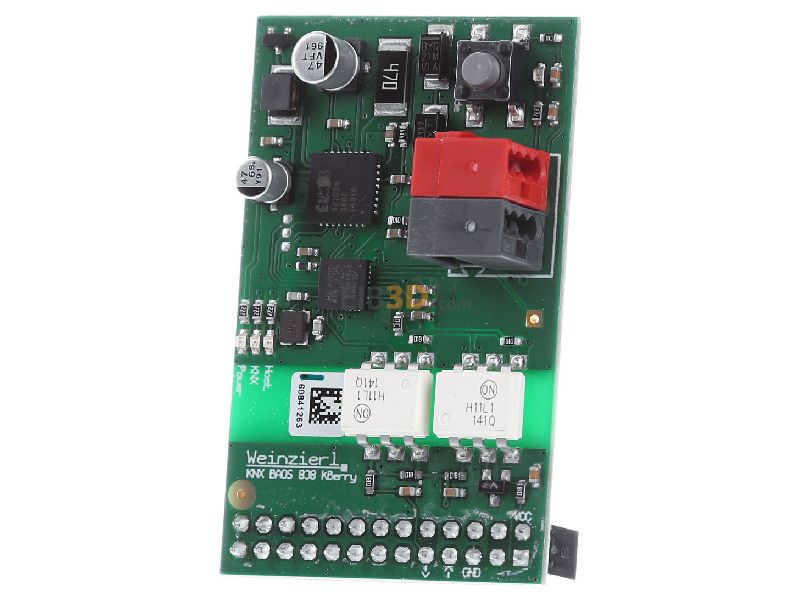

Front view WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
Front view

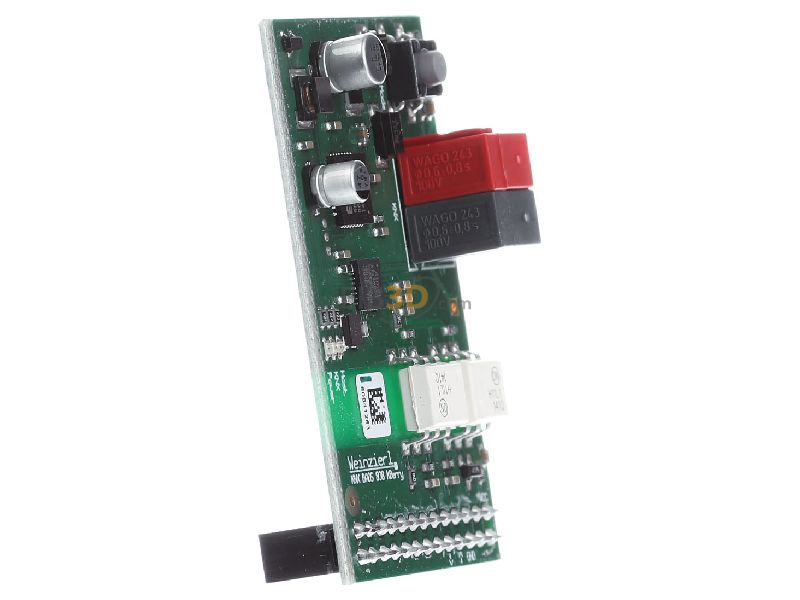

View on the left WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
View on the left

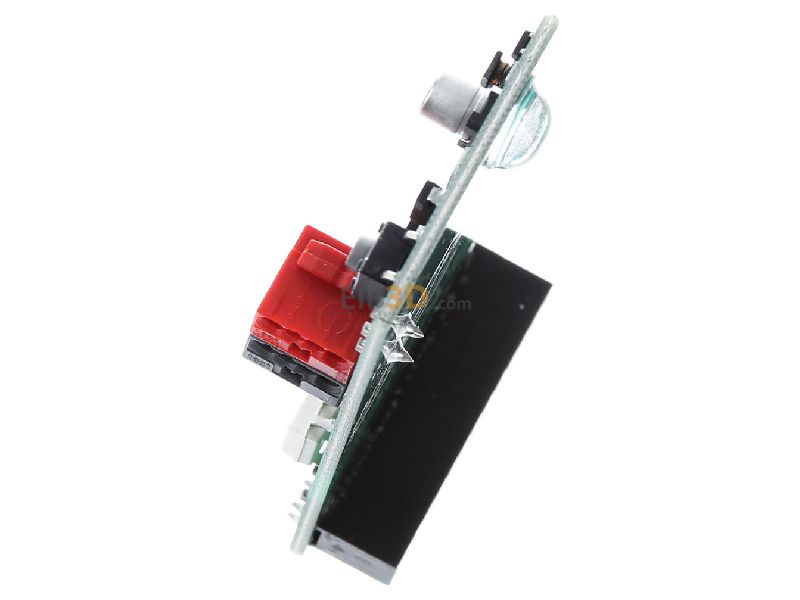

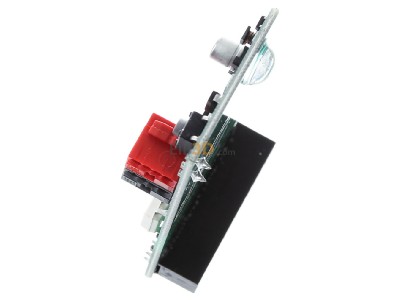

View on the right WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
View on the right

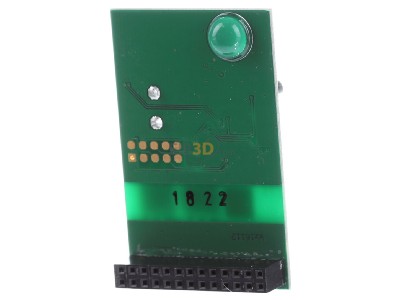

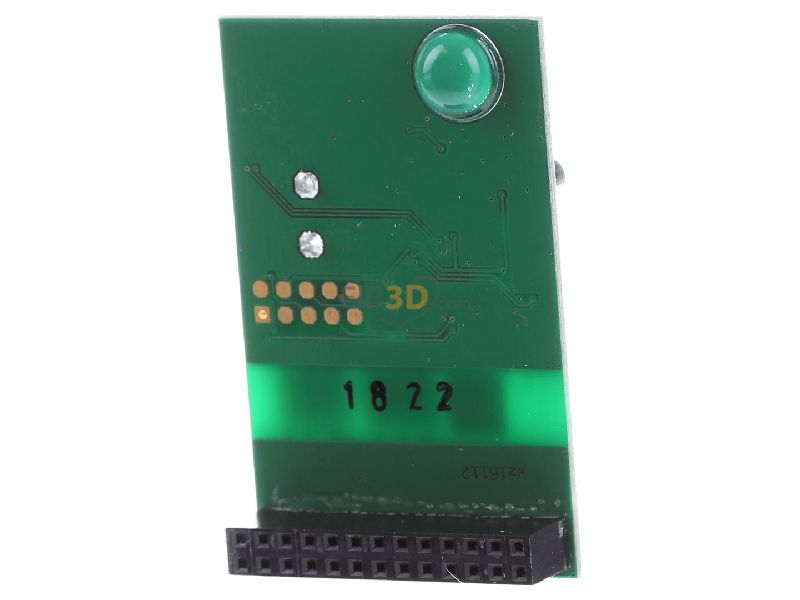

Back view WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
Back view

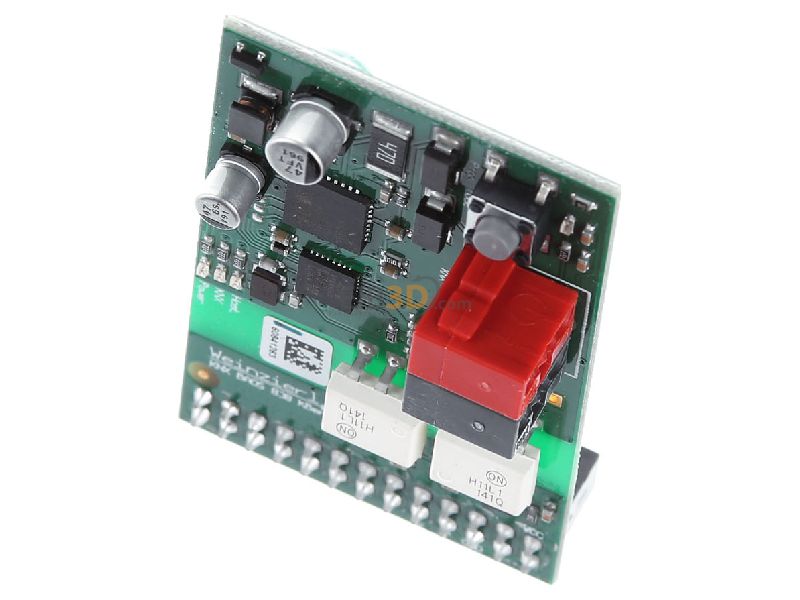

View up front WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
View up front

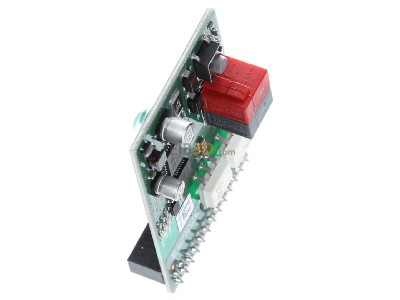

View top left WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
View top left
View top right WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
View top right

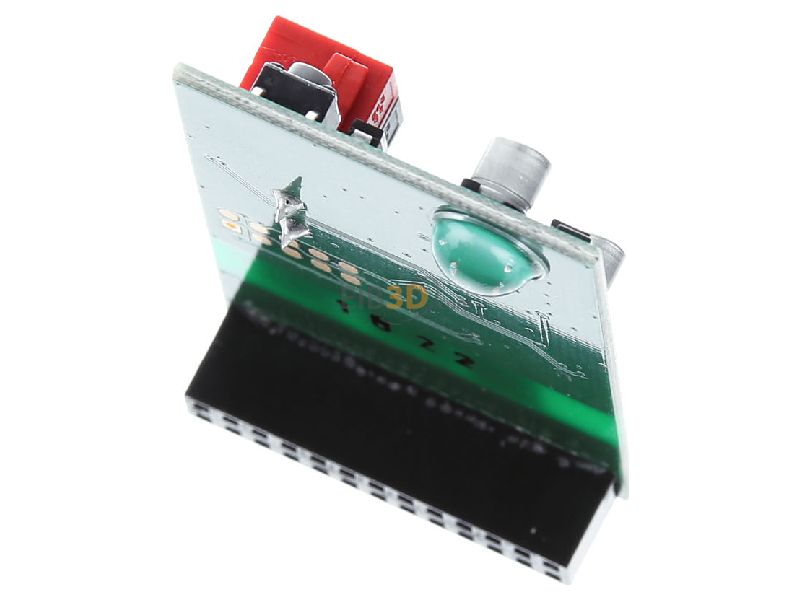

Top rear view WEINZIERL 5208 BAOS module for Raspberry Pi TP838 kberry
Top rear view
