Source photo: www.EIB3D.com

Built-under device 5l SNU 5 SL+WST-W

EAN/GTIN: 4017212211205
Manufacturer: Stiebel Eltron
Manufacturer no.: SNU 5 SL+WST-W
Manufact.-SKU: 221120
Customs tariff no.: 85161080
Similar top items: Show now & compare
184,63 USD Price incl. VAT (0,00 USD)
plus shipping
Delivery time:
4-5 days [US] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Built-under device 5l Energy efficiency class A, Energy efficiency class spectrum A to G, Material boiler tank Plastic, Surface material Plastic, Tank volume 5l, Nominal power 2kW, Connection voltage 220 ... 240V, Design form Built-under, Can be used for normal water pressure, Heat-up time from 10ฐC - 65ฐC 9min, Tap capacity at 60ฐC, continuous 5l/min, Wall set-up, Position, vertical, Temperature limit, Max. allowable operating pressure 0bar, With tap, Height 421mm, Width 263mm, Depth 230mm, Cold tap water connection External thread, Nominal inner diameter, cold tap water 3/8 inch (10), External cold tap water tube diameter 17,2mm, Hot tap water connection External thread, Nominal internal diameter hot tap water 3/8 inch (10), Outer pipe diameter, hot tap water 17,2mm, Connection, drainage connection External thread, Nominal internal diameter drainage connection 3/8 inch (10), Degree of protection (IP) IP24, Water heating energy efficiency (Nwh) 38%, Capacity profile XXS

Attention! Application notice:
This item is a pressureless device (maximum permissible operating pressure = 0 bar). It must only be used with pressureless fittings (low-pressure fittings).

Please note the difference between high-pressure and low-pressure fittings. The high-pressure fitting mixes the water inside the fitting. The low-pressure fitting is connected to a water tank (boiler) and has 3 connections. When heated in the tank, the water expands, which can cause the fitting to drip.

More product images:

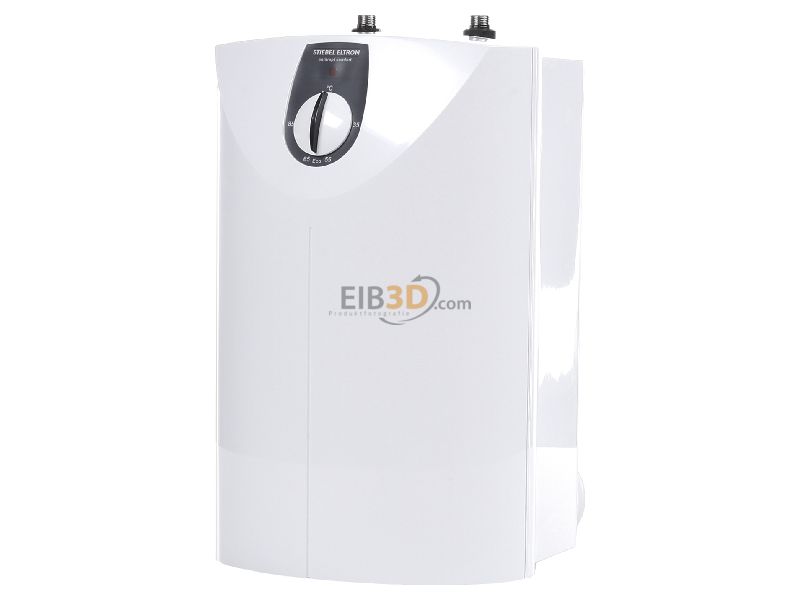

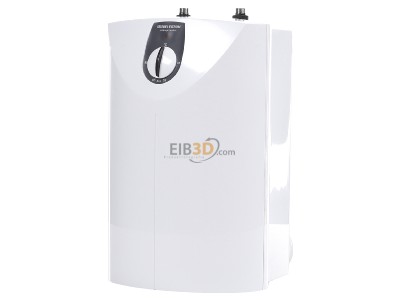

Front view Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
Front view

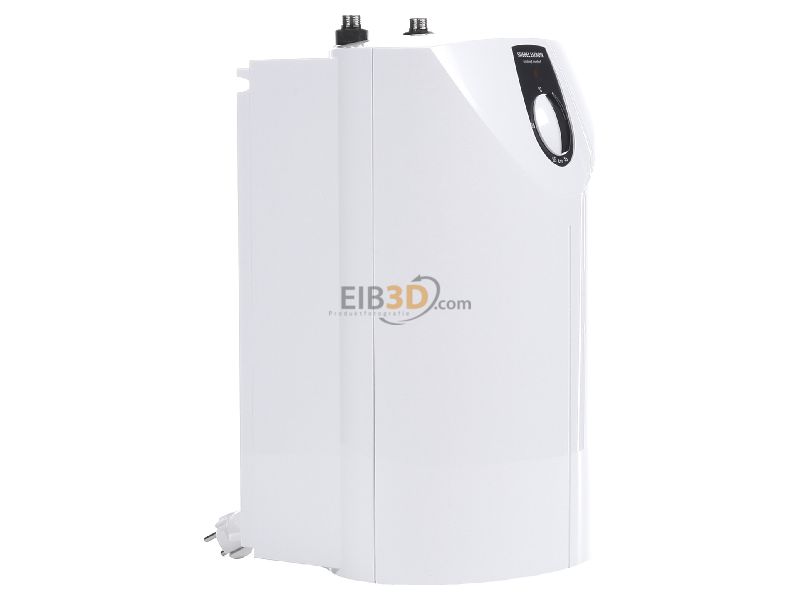

View on the left Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
View on the left

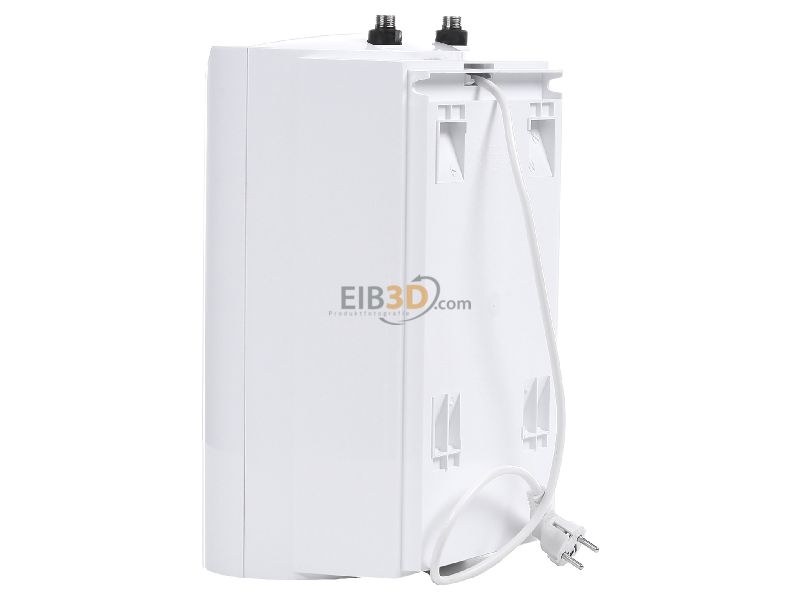

View on the right Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
View on the right

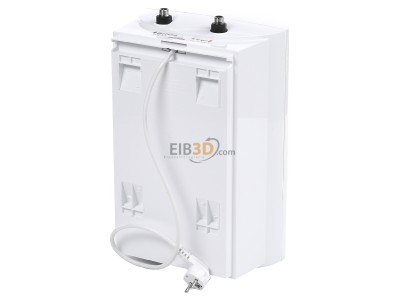

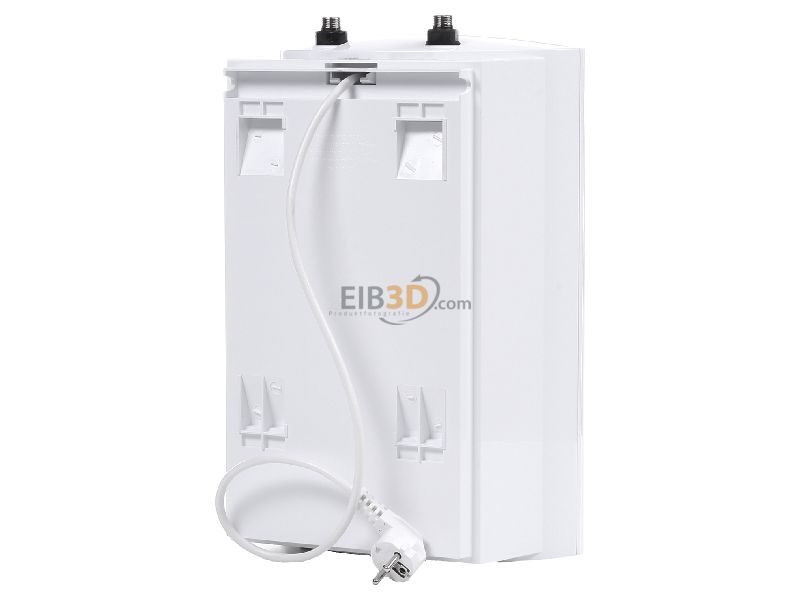

Back view Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
Back view

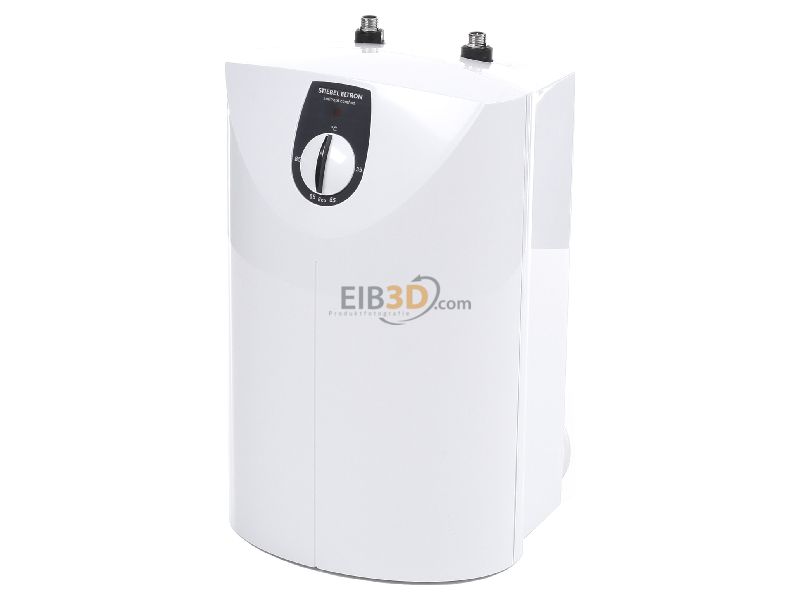

View up front Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
View up front

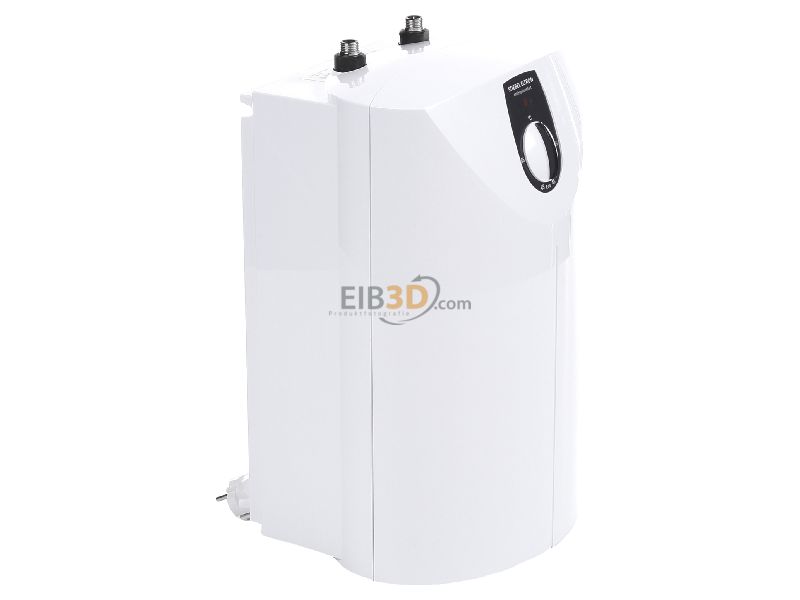

View top left Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
View top left

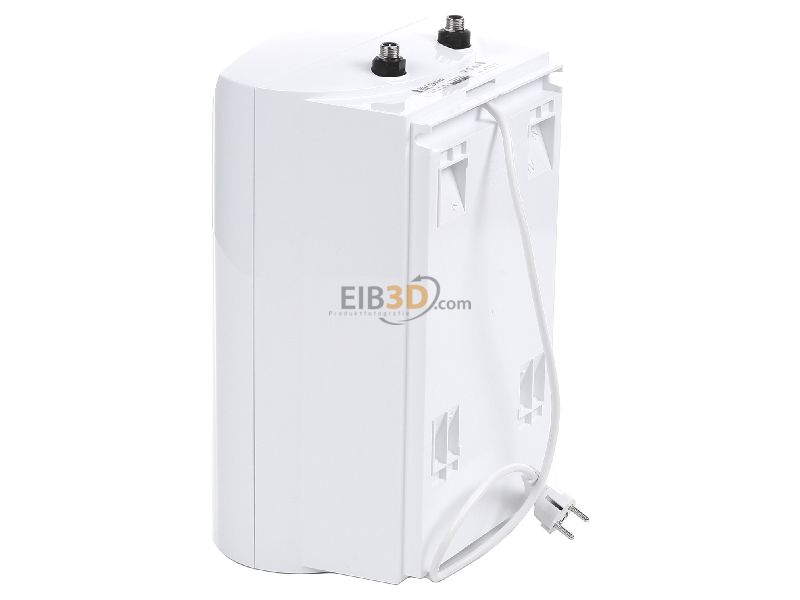

View top right Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
View top right

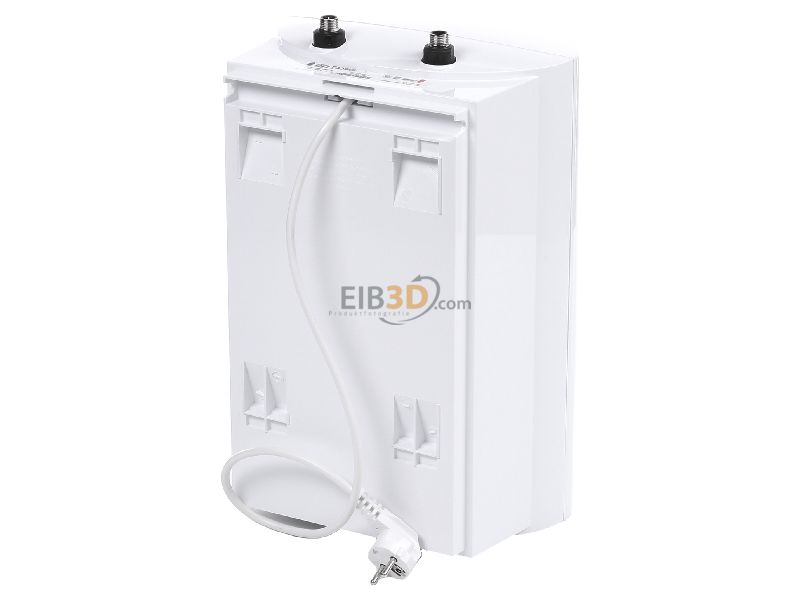

Top rear view Stiebel Eltron SNU 5 SL+WST-W Built-under device 5l
Top rear view
