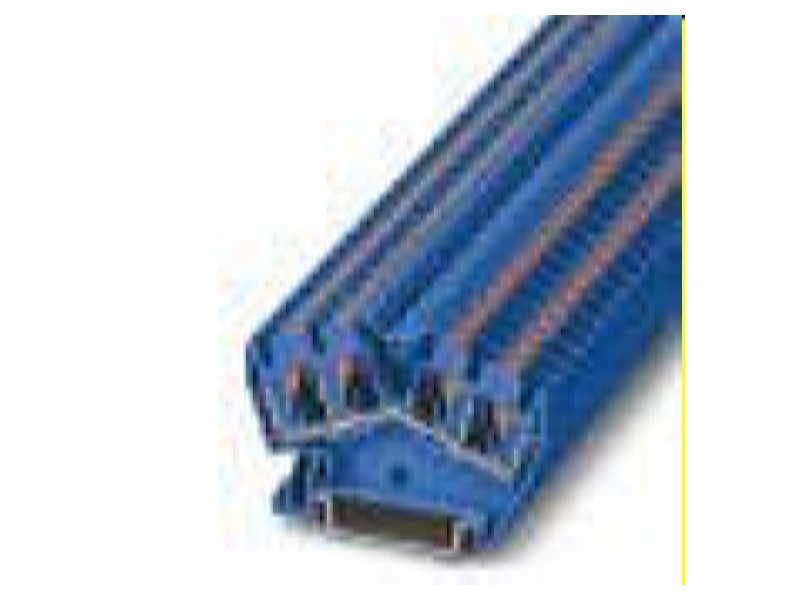

Feed-through terminal block 6,2mm 32A PTS 4-QUATTRO BU

EAN/GTIN: 4055626084893
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: PTS 4-QUATTRO BU
Manufact.-SKU: 3213608
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
77,26 SGD Price incl. VAT (0,00 SGD)
(for 50 pce)
plus shipping
Delivery time:
13-19 days [SG] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 6,2mm 32A Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 4mm², Connectable conductor cross section solid-core 0,2 ... 4mm², Connectable conductor cross section multi-wired 0,2 ... 4mm², Rated current In 32A, Rated voltage 800V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Number of clamp positions per level 4, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,2mm, Height at lowest possible mounting height 43mm, Length 62,4mm, Closing plate required, Colour Blue

More product images:

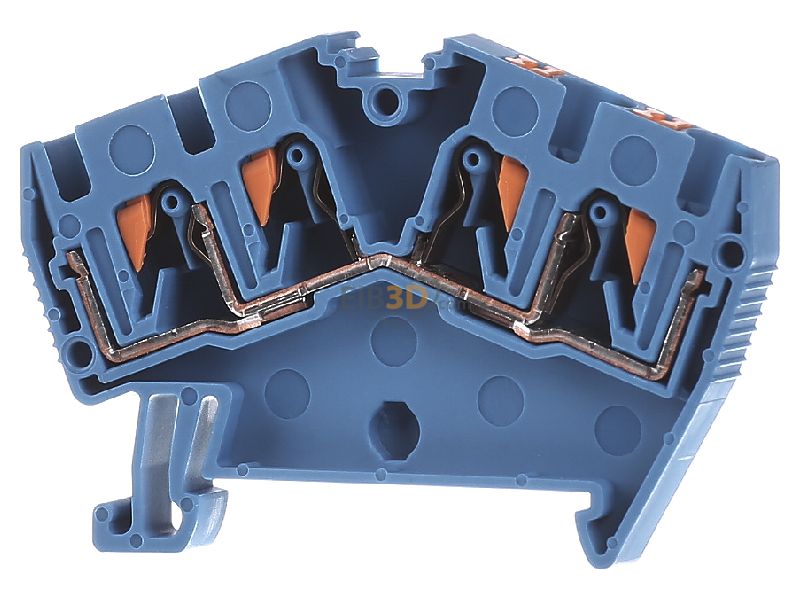

Front view Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
Front view

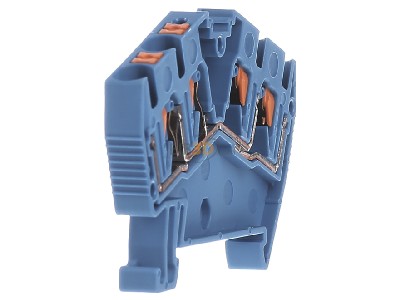

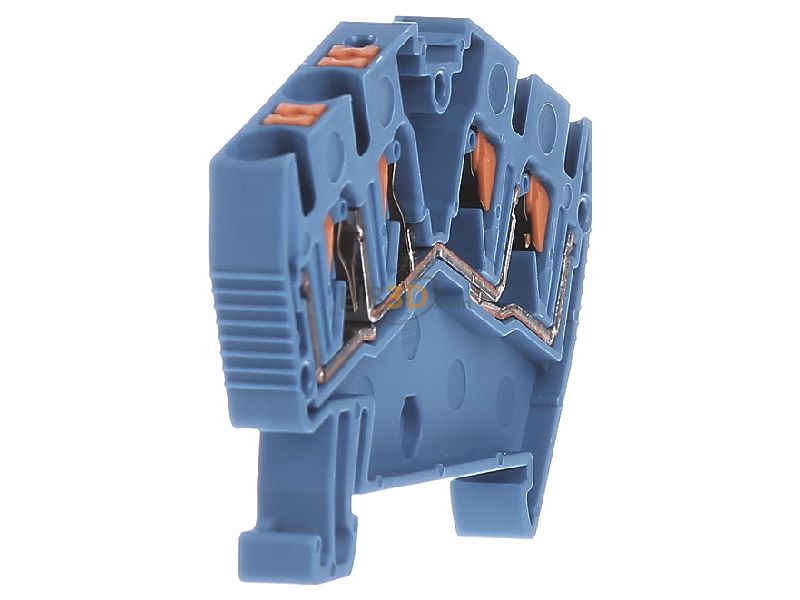

View on the left Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
View on the left

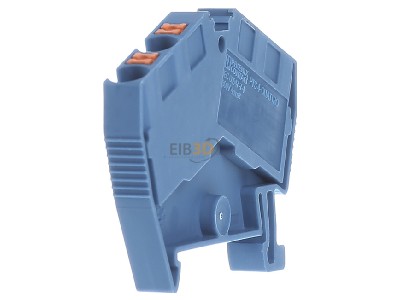

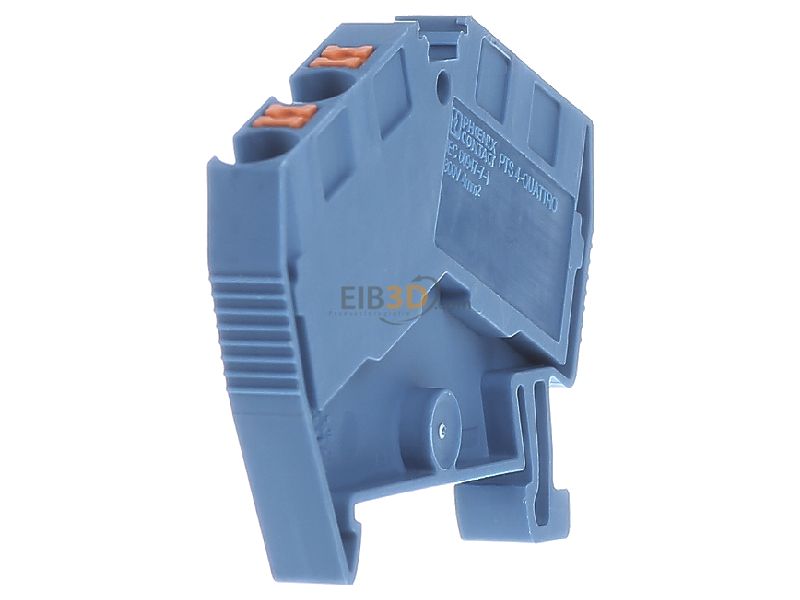

View on the right Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
View on the right

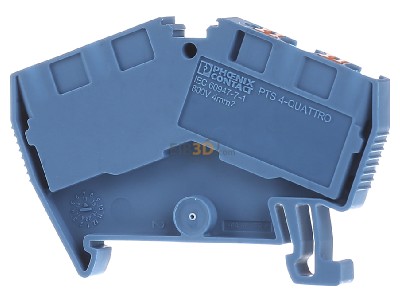

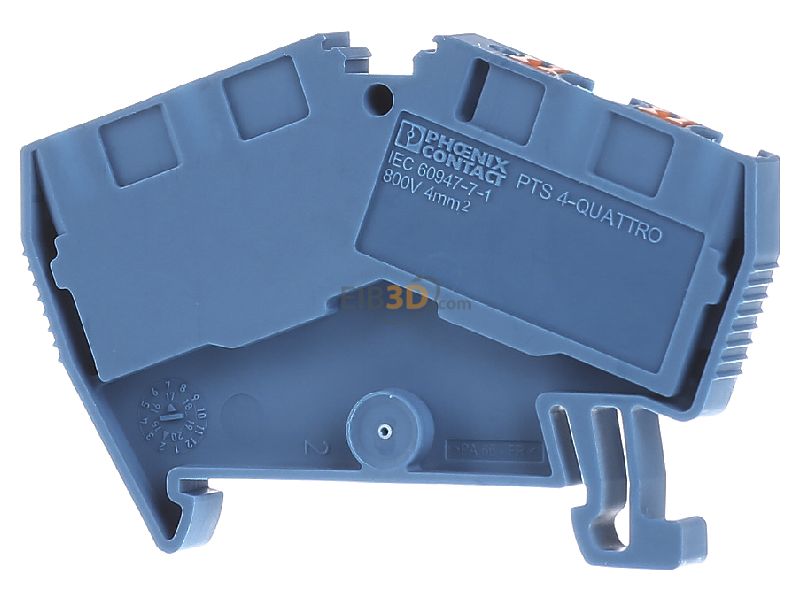

Back view Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
Back view

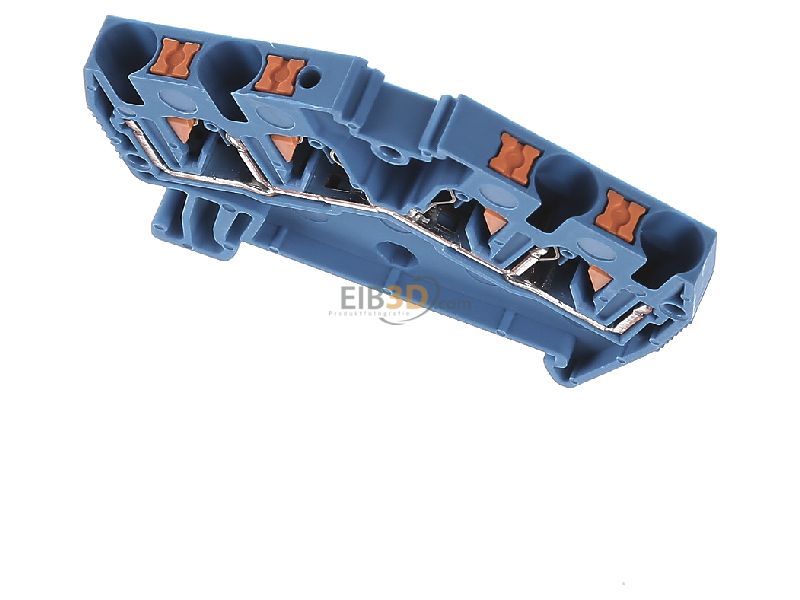

View up front Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
View up front

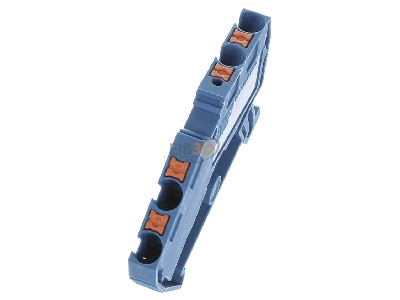

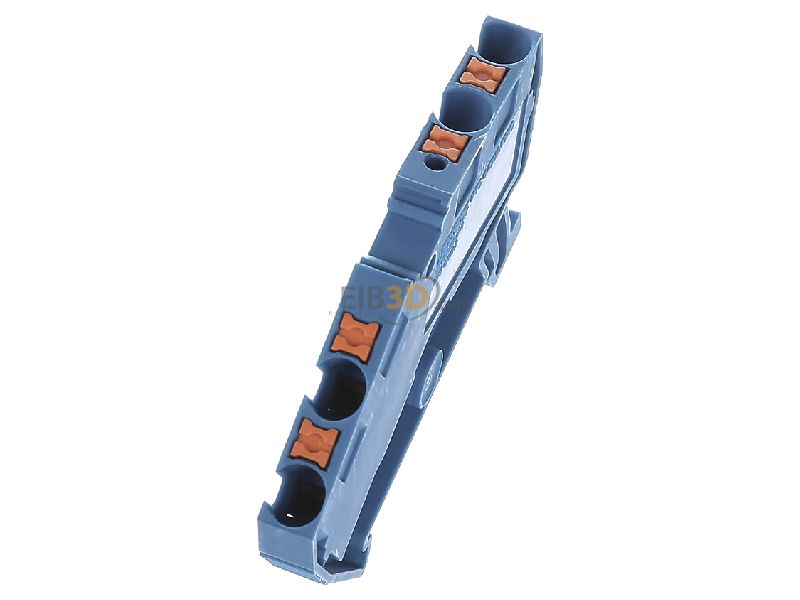

View top left Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
View top left

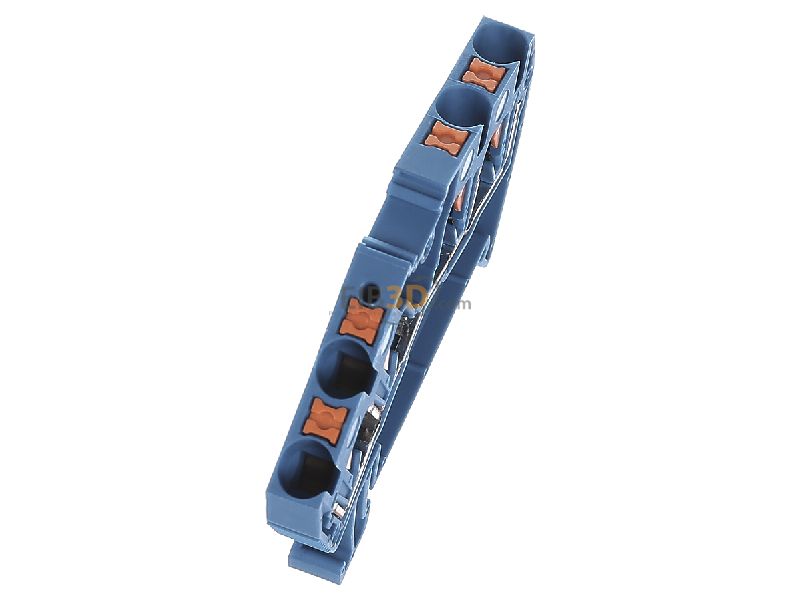

View top right Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
View top right

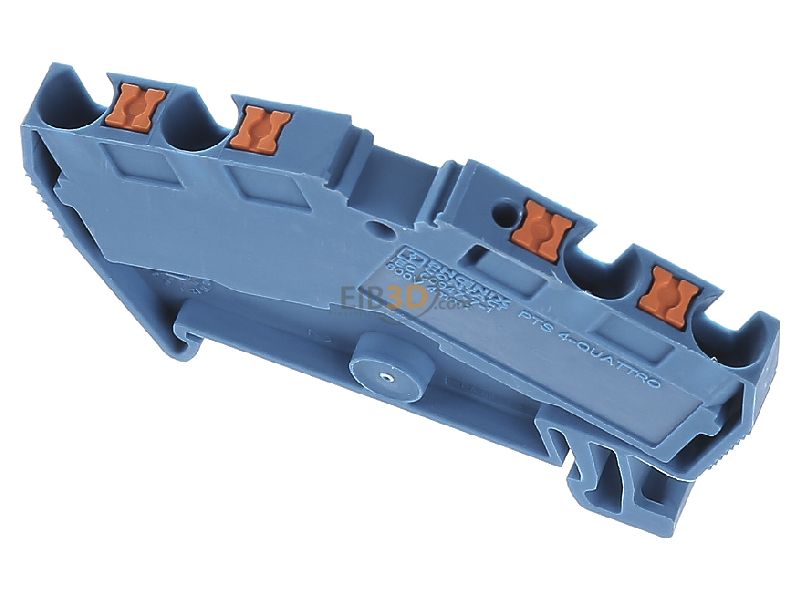

Top rear view Phoenix PTS 4-QUATTRO BU Feed-through terminal block 6,2mm 32A
Top rear view
Product image 1 Phoenix PTS 4 QUATTRO BU Feed through terminal block 6 2mm 32A
Product image 1
Product image 2 Phoenix PTS 4 QUATTRO BU Feed through terminal block 6 2mm 32A
Product image 2
