LED round light 4000K, ONDA2 P AV 42186321
Source photo:
Zumtobel
(fig. might be different or similar)

LED round light 4000K, ONDA2 P AV 42186321

EAN/GTIN: 5037319428251
WEEE: DE 77677044
Manufacturer: Zumtobel
Manufacturer no.: ONDA2 P AV #42186321
Manufact.-SKU: 42186321
Customs tariff no.: 94051190
Illuminants: included
Similar top items: Show now & compare
2.143,98 NZD Price incl. VAT (0,00 NZD)
plus shipping
Delivery time:
14-21 days [NZ] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Energy efficiency class of the light source according to EU regulation 2019/2015 = C, Suitable for workplace according to EN 12464-1 = yes, Lamp type = LED not exchangeable, With light source = yes, Suitable for number of light sources = 1, Lamp holder = None, Housing material = Aluminium, Housing colour = Silver, Type of grid = None, Voltage type = AC, Nominal voltage = 220..240 V, Type of control gear = LED operating device current-controlled, With control gear = yes, Exchangeable control gear = yes, Dimming 0-10 V = no, Dimming 1-10 V = no, Dimming DALI = yes, Dimming DMX = no, Dimming programmable = no, Dimming DSI = yes, Dimming RF = no, Dimming potentiometer (integrated) = no, Dimming LineSwitch = no, Dimming manufacturer´s proprietary system = no, Dimming mains voltage modulation = no, Dimming phase cut-off = no, Dimming phase cut-on = no, Dimming Sine Wave Reduction = no, Dimming Touch and Dim = no, Dimming Zigbee = no, Dimming with push-button = yes, No dim function = no, Reflector = None, Light sharing = Symmetric, Colour consistency (McAdam ellipse) = SDCM3, Light outlet = Direct, Rated life time L70/B50 at 25 °C = 100000 h, Max. number of luminaires per miniature circuit breaker B16 (MCB) = 21, Max. number of luminaires per miniature circuit breaker C16 (MCB) = 35, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) = 90 %, Degree of protection (IP) = IP20, Impact strength = IK03, Protection class = I, Luminaire with limited surface temperature, sign ´´D¿ according to EN 60598-2-24 = no, Suitable for emergency lighting = no, Filament test according to IEC 60695-2-11 = 650 °C - 30 s, Max. system power = 43,6 W, Rated luminous flux according to IEC 62722-2-1 = 2470 lm, Colour of light = White, Luminaire efficacy = 57 lm/W, Colour temperature = 4000 K, Colour rendering index CRI = 80-89, Unified Glare Ratio (UGR) = 19, Power factor = 0,98, Flickering value Pst LM = 1, Constant light output (CLO) = no, Colour of light adjustable = No, Luminous flux adjustable = Continuously variable, Beam angle adjustable = No, Height/depth = 105 mm, Diameter = 590 mm, Type of wiring = Ending, Conductor cross section = 2,5 mm², Connection type = Push-in clamp, Compatible with Apple HomeKit = no, Compatible with Google Assistant = no, Compatible with Amazon Alexa = no, IFTTT support available = no, Operation by Bluetooth = no

More product images:

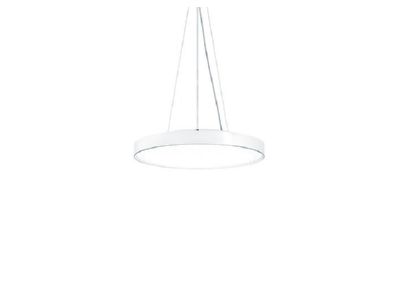

Product image Zumtobel ONDA2 P AV  42186321 LED round light 4000K  ONDA2 P AV 42186321
Product image

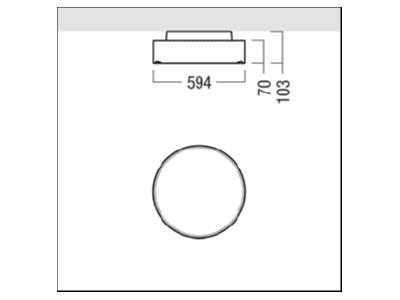

Dimensional drawing Zumtobel ONDA2 P AV  42186321 LED round light 4000K  ONDA2 P AV 42186321
Dimensional drawing
