Empty cabinet 847x347mm 8GK1081-3KK10
Source photo:
SIEMENS
(fig. might be different or similar)

Empty cabinet 847x347mm 8GK1081-3KK10

EAN/GTIN: 4047624144907
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 8GK1081-3KK10
Manufact.-SKU: 8GK10813KK10
Customs tariff no.: 94032080
Similar top items: Show now & compare
737,39 NZD Price incl. VAT (0,00 NZD)
plus shipping
Delivery time:
14-21 days [NZ] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of covering=Optional, Cover model=None, Type of door=Double, Transparent cover/door=yes, With lock=no, Nominal current (In)=160 A, Height=847 mm, Width=347 mm, Depth=120 mm, Built-in depth=120 mm, RAL-number=9016, Number of rows=5, Width in number of modular spacings=60, Number of openings for flange plates=2, Extension possible=yes, Housing material=Steel, Surface protection=Powder coating, With mounting plate=no, Suitable for outdoor use=no, Degree of protection (IP)=IP31, Degree of protection (NEMA)=Other, Impact strength=IK08, Circuit integrity=None

More product images:

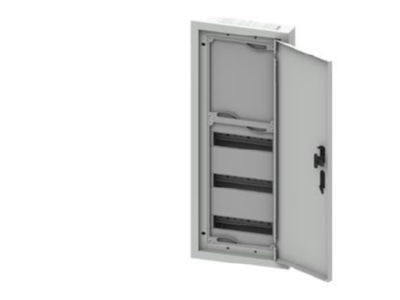

Product image 1 Siemens Dig Industr  8GK1081 3KK10 Empty cabinet 847x347mm
Product image 1

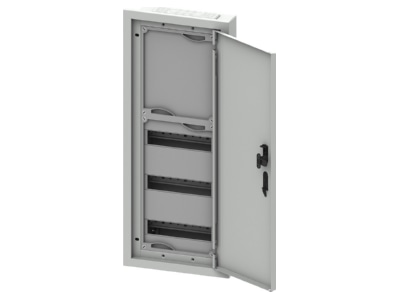

Product image 2 Siemens Dig Industr  8GK1081 3KK10 Empty cabinet 847x347mm
Product image 2
