Circuit-breaker 40A NZMB2-AF40-BT-NA
Source photo:
Eaton
(fig. might be different or similar)

Circuit-breaker 40A NZMB2-AF40-BT-NA

EAN/GTIN: 4015081072828
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: NZMB2-AF40-BT-NA
Manufact.-SKU: 107616
Customs tariff no.: 85362010
Similar top items: Show now & compare
39.468,05 INR Price incl. VAT (0,00 INR)
plus shipping
Delivery time:
15-18 days [IN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated permanent current Iu=40 A, Rated voltage=690 V, Rated short-circuit breaking capacity lcu at 400 V, 50 Hz=25 kA, Overload release current setting=40 A, Adjustment range short-term delayed short-circuit release=0 A, Adjustment range undelayed short-circuit release=320..400 A, Power loss=13,4 W, Device construction=Built-in device fixed built-in technique, Integrated earth fault protection=no, Type of electrical connection of main circuit=Frame clamp, Suitable for DIN rail (top hat rail) mounting=no, DIN rail (top hat rail) mounting optional=yes, With switched-off indicator=no, With integrated under voltage release=no, Number of poles=3, Position of connection for main current circuit=Front side, Type of control element=Rocker lever, Complete device with protection unit=yes, Motor drive integrated=no, Motor drive optional=yes, Degree of protection (IP)=IP20

More product images:

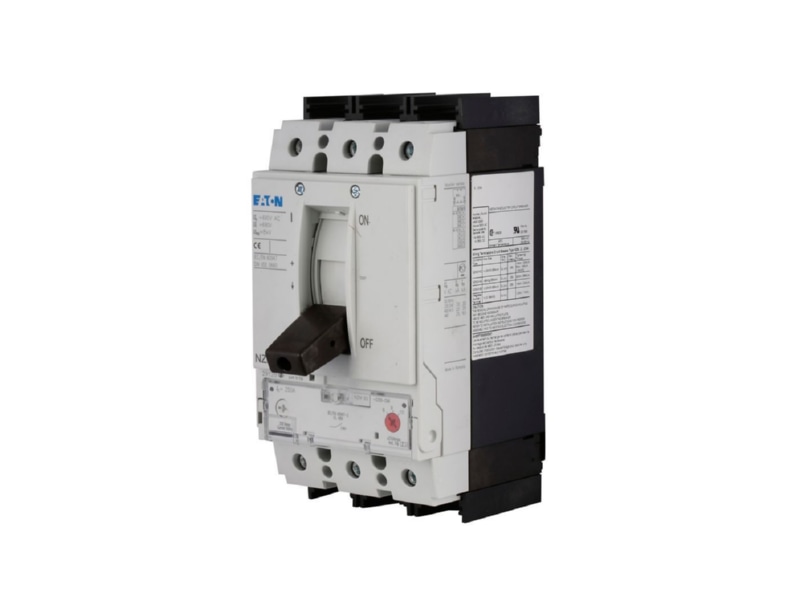

Product image 1 Eaton NZMB2 AF40 BT NA Circuit breaker 40A
Product image 1

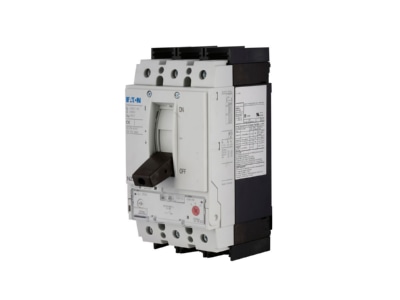

Product image 2 Eaton NZMB2 AF40 BT NA Circuit breaker 40A
Product image 2

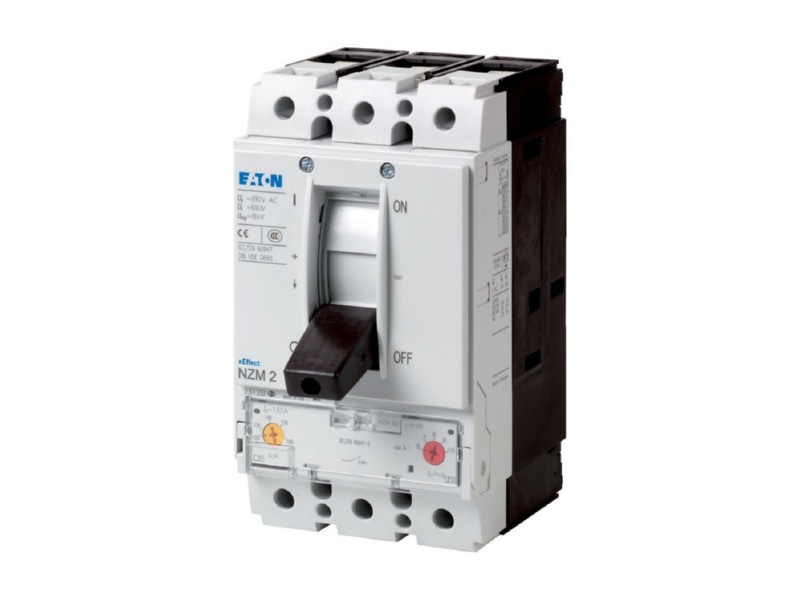

Product image 3 Eaton NZMB2 AF40 BT NA Circuit breaker 40A
Product image 3
