Feed-through terminal block 5,2mm 24A 2002-2203
Source photo:
WAGO
(fig. might be different or similar)

Feed-through terminal block 5,2mm 24A 2002-2203

EAN/GTIN: 4044918691079
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2002-2203
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
86,45 €
Select local currency
Price incl. tax. 23,00%
(for 50 pce)
plus shipping
Delivery time:
14-16 days [IE] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated current In 24 A, Rated voltage 500V, Port location above, Number of floors 2, Number of clamping points per level 2, Mounting DIN rail TH35, Material of the insulating body Thermoplastic, Operating temperature 105 °C, Width/grid 5.2 mm, Height for low mounting type 52 mm, Length 70 mm, Explosion-tested version Ex e no, End plate required yes, Color gray, Levels internally bridged no

More product images:

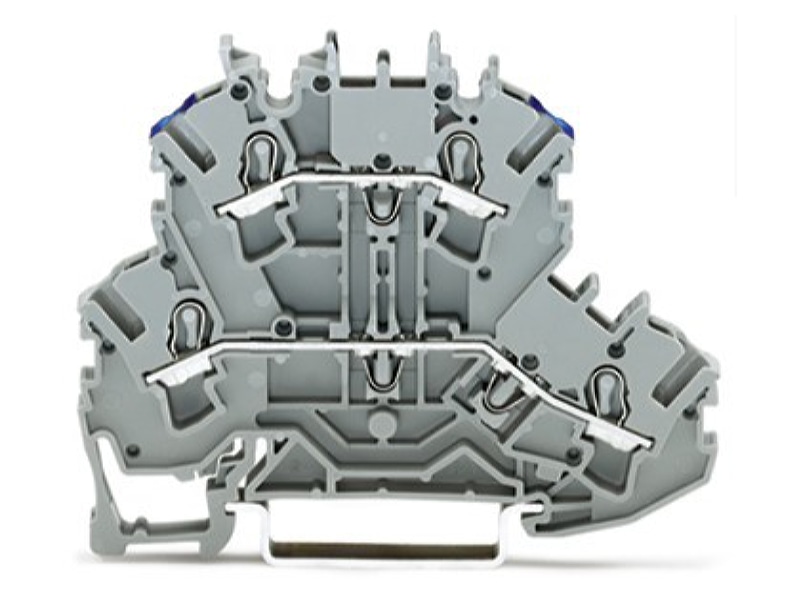

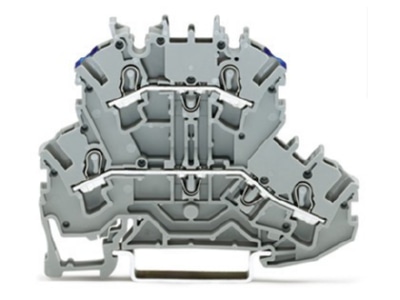

Product image WAGO 2002 2203 Feed through terminal block 5 2mm 24A
Product image

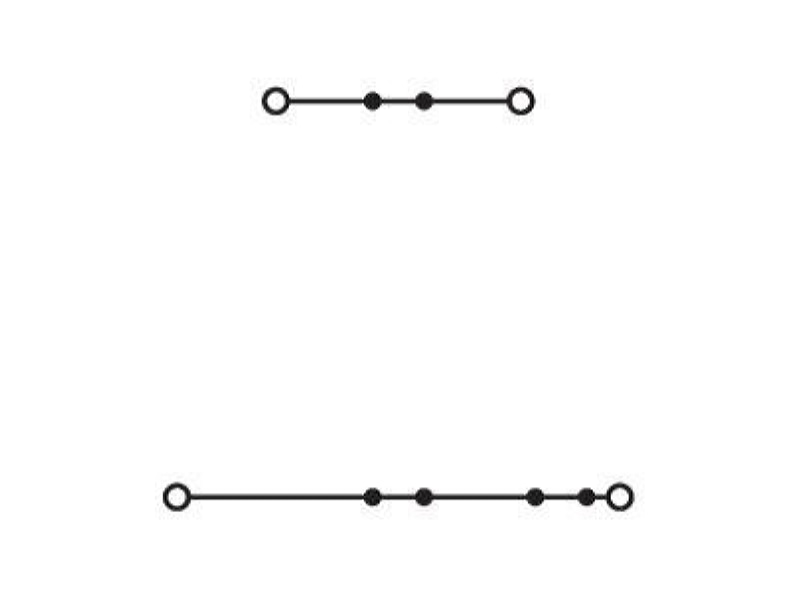

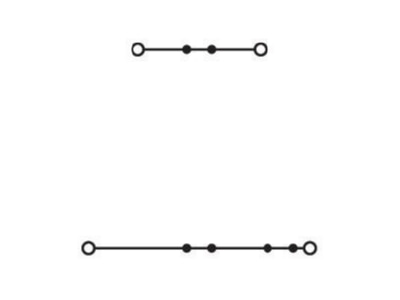

Circuit diagram WAGO 2002 2203 Feed through terminal block 5 2mm 24A
Circuit diagram
