Cable gland / core connector M63 GHG9601955R0008
Source photo:
Jacob
(fig. might be different or similar)

Cable gland / core connector M63 GHG9601955R0008

EAN/GTIN: 4024092194030
WEEE: DE 34612602
Manufacturer: Jacob
Manufacturer no.: GHG9601955R0008
Customs tariff no.: 39174000
Order level:
(minimum)
5 pce
Similar top items: Show now & compare
139,22 €
Select local currency
Price incl. tax. 23,00%
(for 5 pce)
plus shipping
Delivery time:
14-16 days [IE] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 5 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Thread type Metric, Nominal thread size metric/PG 63, Pitch thread 1,5mm, Thread length 12mm, Wrench width 68mm, Suitable for cable diameter 29 ... 48mm, Material Plastic, Material quality Polyamide (PA), Surface protection Untreated, Halogen free, Degree of protection (IP) IP66, Colour Black, RAL-number 9005, Model Straight, Multi seal area, With strain relief, Type of sealing Sealing ring, Working temperature -55 ... 70°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

Product image Jacob GHG9601955R0008 Cable gland   core connector M63
Product image

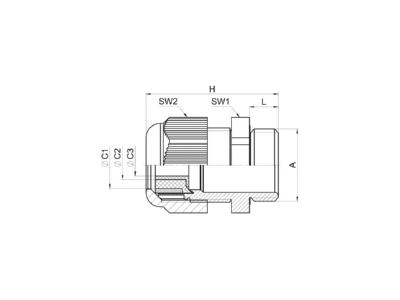

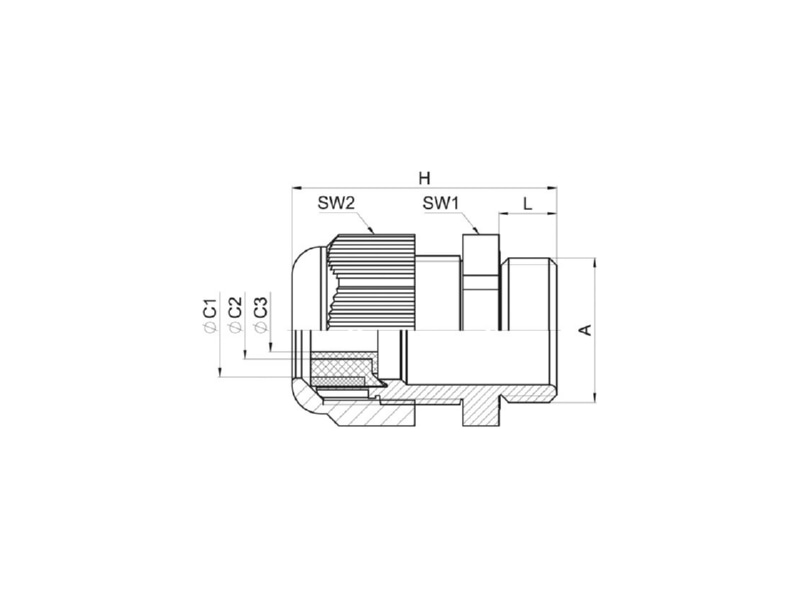

Dimensional drawing Jacob GHG9601955R0008 Cable gland   core connector M63
Dimensional drawing
