Emergency luminaire 3W IP54 8h SLAELLED8h14mIRSCSM
Source photo:
ESYLUX
(fig. might be different or similar)

Emergency luminaire 3W IP54 8h SLAELLED8h14mIRSCSM

EAN/GTIN: 4015120032660
WEEE: DE 36503340
Manufacturer: ESYLUX
Manufacturer no.: SLAELLED8h14mIRSCSM
Manufact.-SKU: EN10032660
Customs tariff no.: 94056180
Similar top items: Show now & compare
114,56 €
Select local currency
Price incl. tax. 23,00%
plus shipping
Delivery time:
14-16 days [IE] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Mounting method=Ceiling surface mounting, Function=Escape route signage, Suitable for labelling type=Sticker, Type of indicator=Single-sided, With pictogram=yes, Monitoring equipment=Test button, Wiring system=Continuous circuit/emergency circuit, With remote switch connection=no, With remote control=no, Power supply system=Peripheral (individual battery), Battery quality=Lithium-ions, Lamp type=LED not exchangeable, With light source=yes, Suitable for number of lamps=1, Lamp holder=Other, Number of lighting heads=1, Material housing=Plastic, Colour housing=White, Material cover=Plastic, opal, Voltage type=AC, Nominal voltage=230 V, Type of control gear=LED operating device current-controlled, Light distributor=Other, Rated life time L80/B10 at 25 °C=50000 h, Constant light output (CLO)=no, Degree of protection (IP)=IP54, Impact strength=IK03, Protection class=II, Luminaire with limited surface temperature, sign ´´D¿=no, Rated ambient temperature according to IEC62722-2-1=5..45 °C, Max. system power=3 W, Recognition distance=14 m, Nominal operation time=8 h, Width=90 mm, Height/depth=115 mm, Length=355 mm, Type of wiring=Suitable for through wiring, Number of poles=3, Conductor cross section=2,5 mm², Connection type=Plug-in connection

More product images:

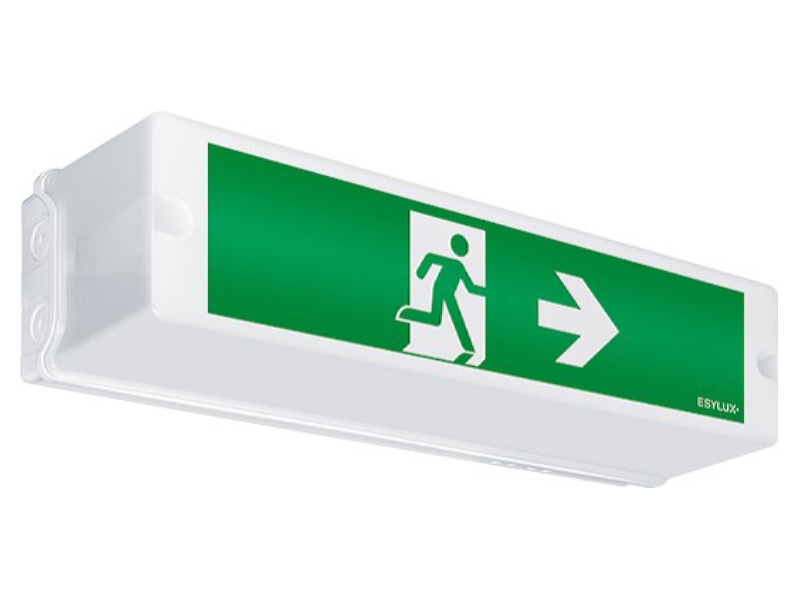

Product image ESYLUX SLAELLED8h14mIRSCSM Emergency luminaire 3W IP54 8h
Product image

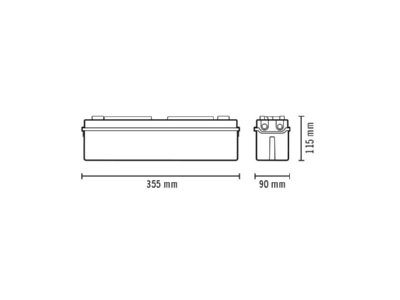

Dimensional drawing ESYLUX SLAELLED8h14mIRSCSM Emergency luminaire 3W IP54 8h
Dimensional drawing
