Movement sensor 12m IS 240 duo ws

EAN/GTIN: 4007841602819
WEEE: DE 39896667
Manufacturer: Steinel
Manufacturer no.: IS 240 duo ws
Manufact.-SKU: 602819
Customs tariff no.: 85365080
Similar top items: Show now & compare
55,41 GBP Price incl. VAT (0,00 GBP)
plus shipping
Delivery time:
3-5 days [GB] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.
Minimum order value (UK): 150 EUR (Sub total)

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 12m Model Movement sensor, Sensor type Passive infrared, Forced switch off, Creep-under protection, Networkable, Optimum mounting height 2m, Staircase monitoring, Bridging switch, Max. transmission range sideways 12m, Max. transmission range frontally 12m, Diameter detection range on floor 24m, Response value luminosity adjustable, With signal unit, Suitable for wall mounting, Mounting method Surface mounted (plaster), Connection type Other, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Other, Surface finishing Matt, Colour White, RAL-number (akin) 9010, Degree of protection (IP) IP54, Voltage type AC, Frequency 50 ... 50Hz, Nominal voltage 240V, Min. switch-on time 10s, Max. duty cycle 15min, Switch-off delay 600s, Detection angle horizontal 240 ... 240°, Pivoting range sensor, horizontal 160 ... 160°, Response value luminosity 2 ... 2000lx, Max. switching power 1000W, Suitable for C-load, Temperature -20 ... 50°C, Number of switching zones 276, Max. starting current 200A, Substation input, Width 60mm, Height 100mm

More product images:

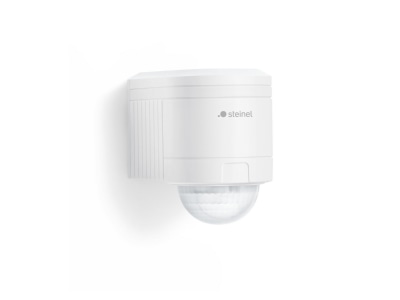

Front view Steinel IS 240 duo ws System motion sensor 180...240° white
Front view
View on the left Steinel IS 240 duo ws System motion sensor 180...240° white
View on the left
View on the right Steinel IS 240 duo ws System motion sensor 180...240° white
View on the right
Back view Steinel IS 240 duo ws System motion sensor 180...240° white
Back view
View up front Steinel IS 240 duo ws System motion sensor 180...240° white
View up front
View top left Steinel IS 240 duo ws System motion sensor 180...240° white
View top left
View top right Steinel IS 240 duo ws System motion sensor 180...240° white
View top right
Top rear view Steinel IS 240 duo ws System motion sensor 180...240° white
Top rear view
