Ceiling-/wall luminaire ONDA2 D400 42186630
Source photo:
Zumtobel
(fig. might be different or similar)

Ceiling-/wall luminaire ONDA2 D400 42186630

EAN/GTIN: 9010299039286
WEEE: DE 77677044
Manufacturer: Zumtobel
Manufacturer no.: ONDA2 D400 #42186630
Manufact.-SKU: 42186630
Customs tariff no.: 94051190
Similar top items: Show now & compare
502,05 CHF Price incl. VAT (0,00 CHF)
plus shipping
Delivery time:
13-15 days [CH] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Ceiling-/wall luminaire Energy efficiency class of the light source not relevant, Suitable for ceiling mounting, Suitable for surface mounting, Suitable for number of lamps 1, Lamp holder Other, Material housing Aluminium, Colour housing White, Material cover Plastic, transparent, Type of grid None, Voltage type AC, Nominal voltage 220 ... 240V, Type of control gear LED operating device current-controlled, With control gear, Dimming manufacturer´s proprietary system, Dimming RF, Light sharing Symmetric, Light outlet Direct, Rated life time L70/B50 at 25 °C 100000h, Degree of protection (IP) IP20, Protection class I, Max. system power 20,5W, Rated luminous flux according to IEC 62722-2-1 2510lm, Colour of light White, Colour temperature 3000 ... 3000K, Colour rendering index CRI 80-89, Power factor 0,96, Height/depth 85mm, Outer diameter 400mm, Lamp type LED not exchangeable, With light source

More product images:

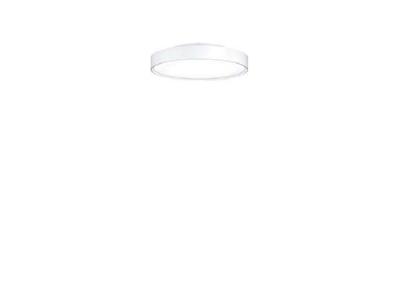

Product image Zumtobel ONDA2 D400  42186630 Ceiling  wall luminaire ONDA2 D400 42186630
Product image

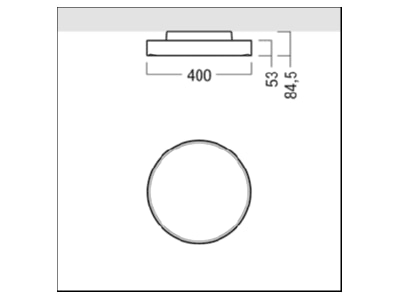

Dimensional drawing Zumtobel ONDA2 D400  42186630 Ceiling  wall luminaire ONDA2 D400 42186630
Dimensional drawing
