LED recessed light 4000K, OMEGAC LED 96631491
Source photo:
Thorn
(fig. might be different or similar)

LED recessed light 4000K, OMEGAC LED 96631491

EAN/GTIN: 9010299016614
WEEE: DE 77677044
Manufacturer: Thorn
Manufacturer no.: OMEGAC LED #96631491
Manufact.-SKU: 96631491
Customs tariff no.: 94051190
Illuminants: included
Similar top items: Show now & compare
227,66 CHF Price incl. VAT (0,00 CHF)
plus shipping
Delivery time:
13-15 days [CH] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Energy efficiency class of the light source according to EU regulation 2019/2015 = E, Suitable for suspended mounting = no, Suitable for ceiling mounting = yes, Suitable for built-in mounting = yes, Suitable for surface mounting = no, Suitable for workplace according to EN 12464-1 = no, Lamp type = LED not exchangeable, With light source = yes, Suitable for number of light sources = 1, Lamp holder = Other, Housing material = Aluminium, Housing colour = White, Material cover = Plastic, transparent, Type of grid = None, Voltage type = AC, Nominal voltage = 220..240 V, Type of control gear = LED operating device current-controlled, With control gear = yes, Exchangeable control gear = yes, Dimming 0-10 V = no, Dimming 1-10 V = no, Dimming DALI = yes, Dimming DMX = no, Dimming DSI = no, Dimming potentiometer (integrated) = no, Dimming LineSwitch = no, Dimming manufacturer´s proprietary system = no, Dimming mains voltage modulation = no, Dimming phase cut-off = no, Dimming phase cut-on = no, Dimming programmable = no, Dimming RF = no, Dimming Sine Wave Reduction = no, Dimming Touch and Dim = no, Dimming Zigbee = no, Dimming with push-button = no, No dim function = no, Light sharing = Asymmetric, Beam angle = Extreme wide beam >80°, Colour consistency (McAdam ellipse) = SDCM5, Light outlet = Direct, Rated life time L70/B50 at 25 °C = 50000 h, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) = 70 %, Max. number of luminaires per miniature circuit breaker B16 (MCB) = 32, Max. number of luminaires per miniature circuit breaker C16 (MCB) = 53, Degree of protection (IP) = IP20, Impact strength = IK02, Protection class = I, Luminaire with limited surface temperature, sign ´´D¿ according to EN 60598-2-24 = no, Rated ambient temperature according to IEC 62722-2-1 = 0..25 °C, Suitable for emergency lighting = no, With movement sensor = no, With light sensor = no, Covering of the luminaire with thermally insulating material possible = yes, Filament test according to IEC 60695-2-11 = 650 °C - 30 s, Max. system power = 19,5 W, Luminaire efficacy = 80 lm/W, Rated luminous flux according to IEC 62722-2-1 = 1551 lm, Colour of light = White, Colour temperature = 3000 K, Flickering value Pst LM = 1, Colour rendering index CRI = 80-89, Constant light output (CLO) = no, Height/depth = 55 mm, Outer diameter = 300 mm, Built-in height/depth = 52 mm, Type of wiring = Ending, Conductor cross section = 1,5 mm², Connection type = Screwed terminal, Unified Glare Ratio (UGR) = 22, Colour of light adjustable = No, Luminous flux adjustable = Continuously variable, Beam angle adjustable = No, Operation by Bluetooth = no, Compatible with Casambi = no, Compatible with Apple HomeKit = no, Compatible with Google Assistant = no, Compatible with Amazon Alexa = no, IFTTT support available = no

More product images:

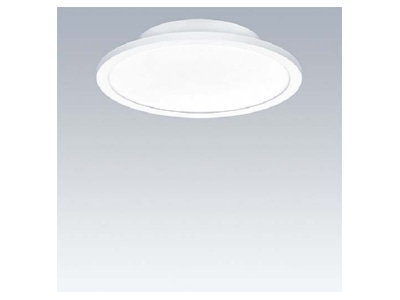

Product image Zumtobel OMEGAC LED  96631491 Ceiling  wall luminaire OMEGAC LED 96631491
Product image

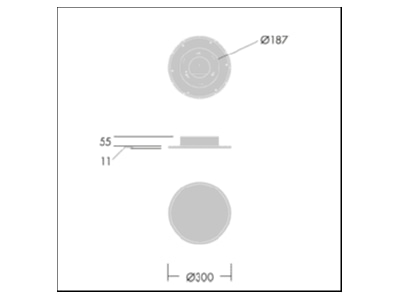

Dimensional drawing Zumtobel OMEGAC LED  96631491 Ceiling  wall luminaire OMEGAC LED 96631491
Dimensional drawing
