Switching relay AC 230V DC 230V 6A 857-368
Source photo:
WAGO
(fig. might be different or similar)

Switching relay AC 230V DC 230V 6A 857-368

EAN/GTIN: 4045454673482
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 857-368
Customs tariff no.: 85364900
Similar top items: Show now & compare
24,18 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of electric connection=Spring clamp connection, With detachable clamps=no, Nominal current=6 A, Rated control supply voltage Us at AC 50HZ=230 V, Rated control supply voltage Us at AC 60HZ=230 V, Rated control supply voltage Us at DC=230 V, Voltage type for actuating=AC/DC, Drive, polarization=Polarity free, Drive, switching attitude=Mono stable, Number of contacts as change-over contact=1, With forced-guided contacts=no, Type of switch contact=Single contact, Complete with socket=yes, With LED indication=yes, Degree of protection (IP)=IP20, Width=6 mm, Height=81 mm, Depth=94 mm

More product images:

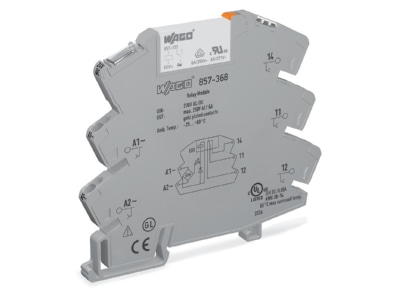

Product image WAGO 857 368 Switching relay AC 230V DC 230V 6A
Product image
Circuit diagram WAGO 857 368 Switching relay AC 230V DC 230V 6A
Circuit diagram

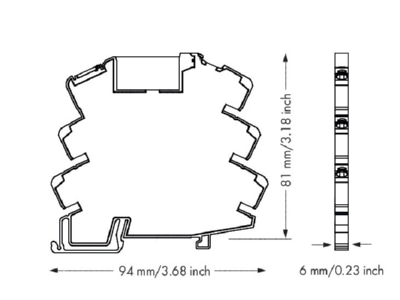

Dimensional drawing WAGO 857 368 Switching relay AC 230V DC 230V 6A
Dimensional drawing
