DC-power supply 85...264V/22...26V 787-1702

EAN/GTIN: 4055143372459
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 787-1702
Customs tariff no.: 85044083
Similar top items: Show now & compare
32,23 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Voltage type of supply voltage=AC/DC, 1st secondary output voltage=22..26 V, Max. output current 1=1,25 A, Secondary voltage adjustable=yes, Nominal value output voltage 1=24 V, Nominal value output current 1=1,25 A, Short-circuit-proof=yes, Rated supply voltage at AC 50 Hz=85..264 V, Rated supply voltage at AC 60 Hz=85..264 V, Rated supply voltage at DC=130..373 V, Output voltage stabilized=yes, Stabilized=yes, Type of electric connection=Spring clamp connection, Rail mounting possible=yes, Wall mounting possible=no, Modular version=no, Width in number of modular spacings=6, Direct mounting possible=no, Width=99 mm, Height=90 mm, Depth=30 mm, Suitable for safety functions=no, Degree of protection (IP)=IP20

More product images:

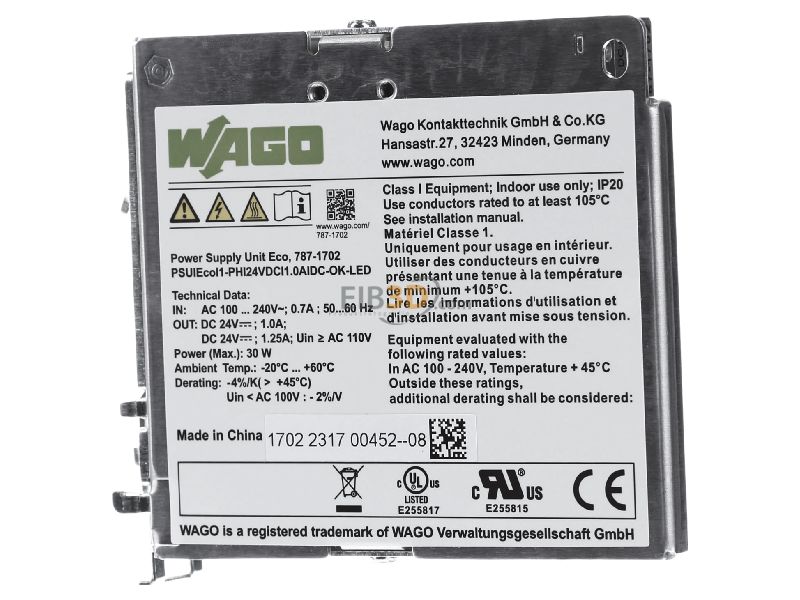

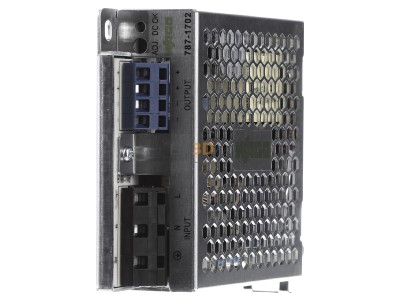

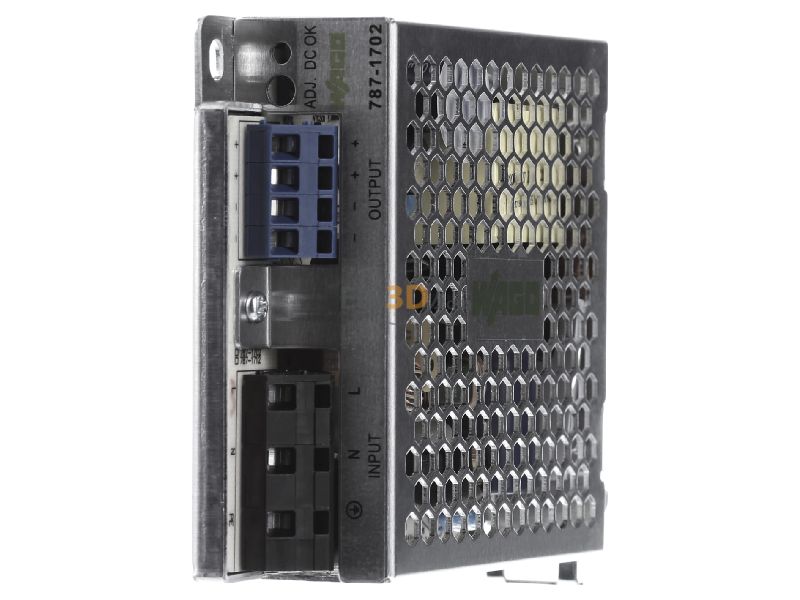

Front view WAGO 787-1702 DC-power supply 85...264V/22...26V
Front view

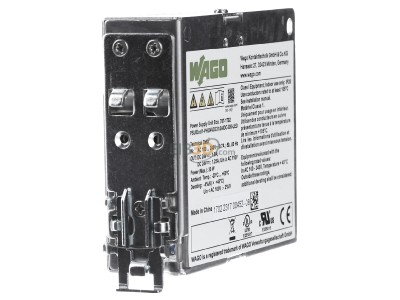

View on the left WAGO 787-1702 DC-power supply 85...264V/22...26V
View on the left
View on the right WAGO 787-1702 DC-power supply 85...264V/22...26V
View on the right

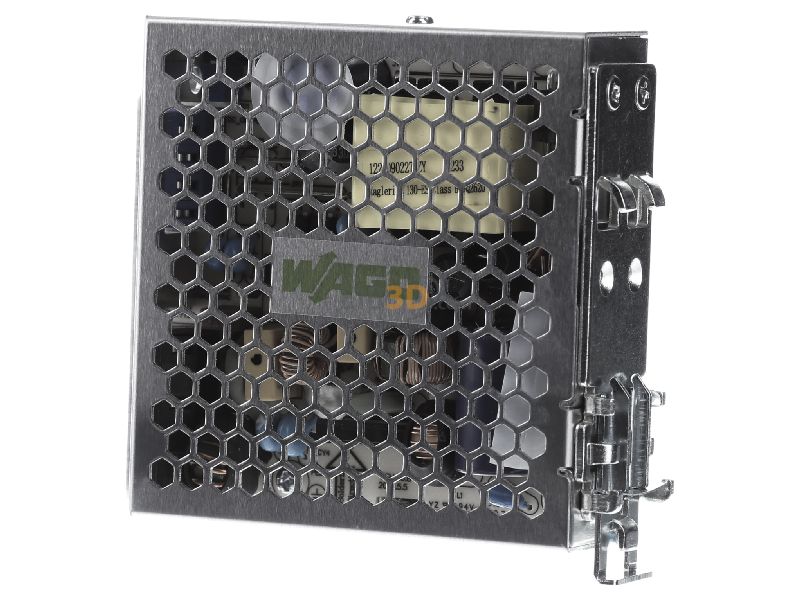

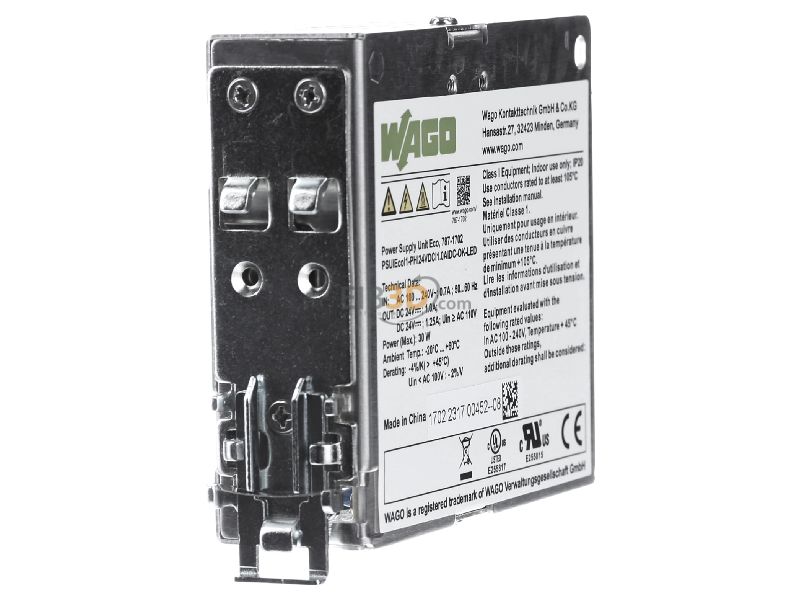

Back view WAGO 787-1702 DC-power supply 85...264V/22...26V
Back view

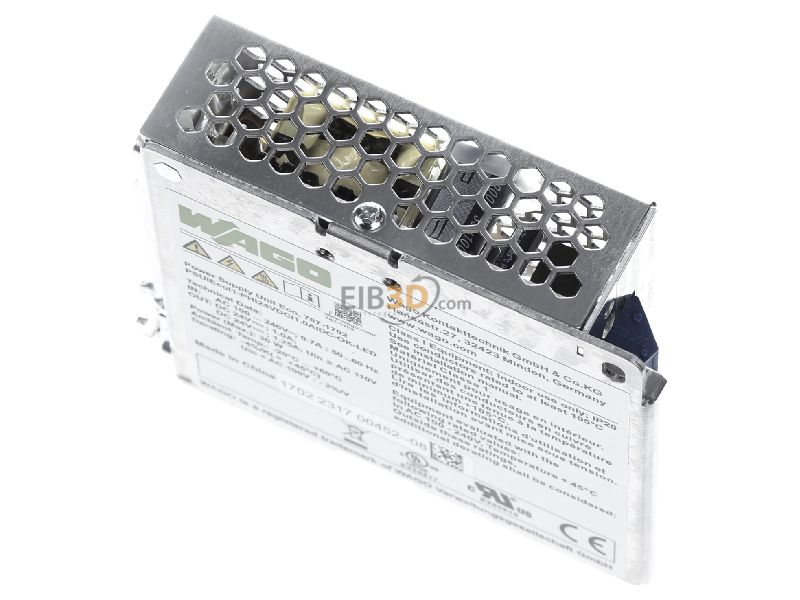

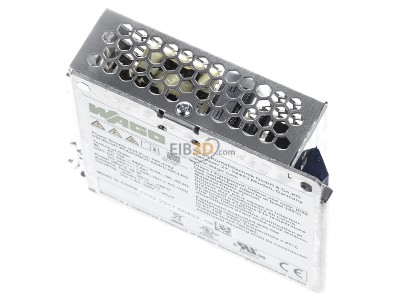

View up front WAGO 787-1702 DC-power supply 85...264V/22...26V
View up front

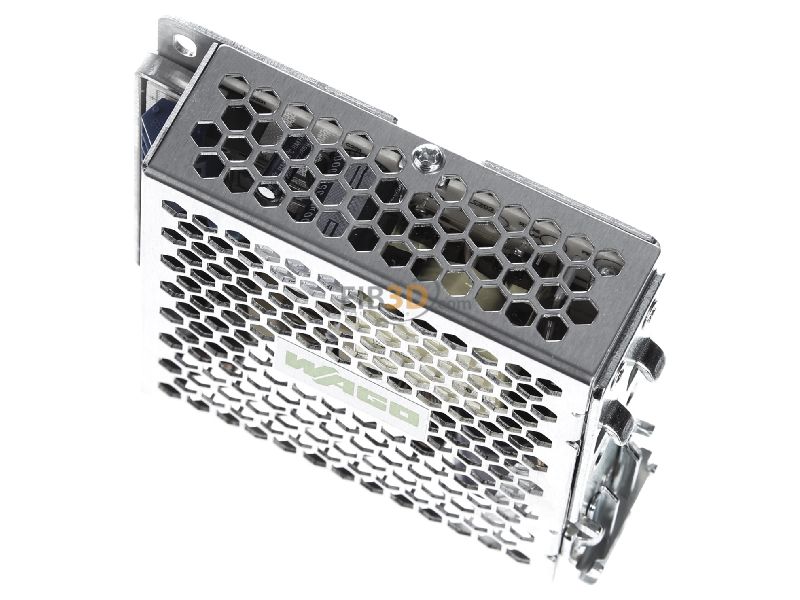

View top left WAGO 787-1702 DC-power supply 85...264V/22...26V
View top left

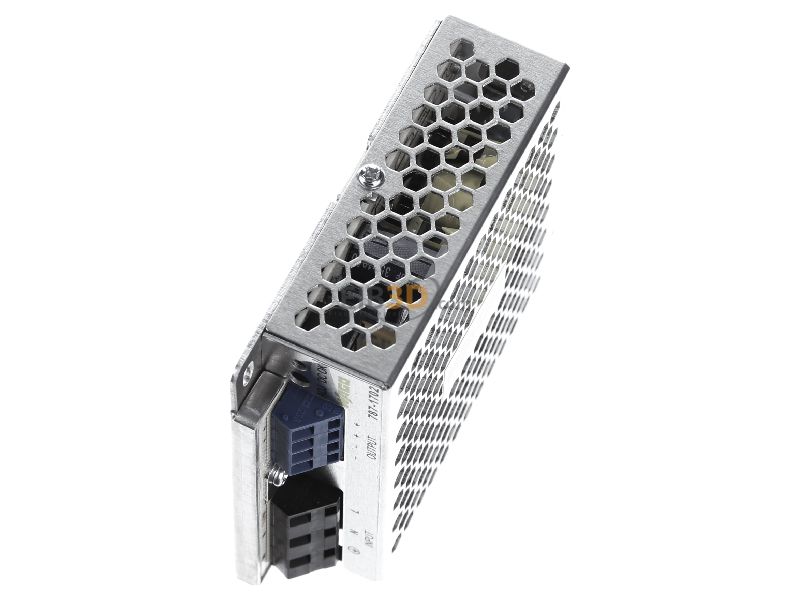

View top right WAGO 787-1702 DC-power supply 85...264V/22...26V
View top right

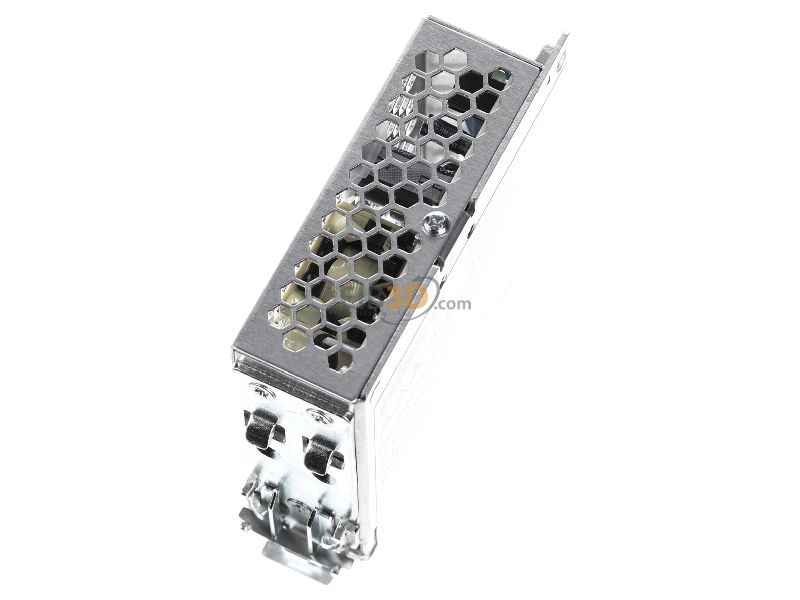

Top rear view WAGO 787-1702 DC-power supply 85...264V/22...26V
Top rear view

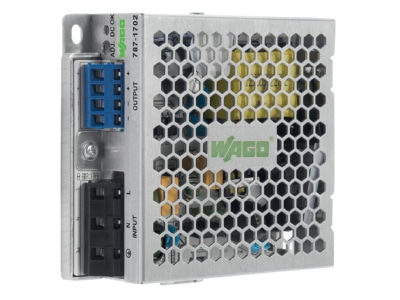

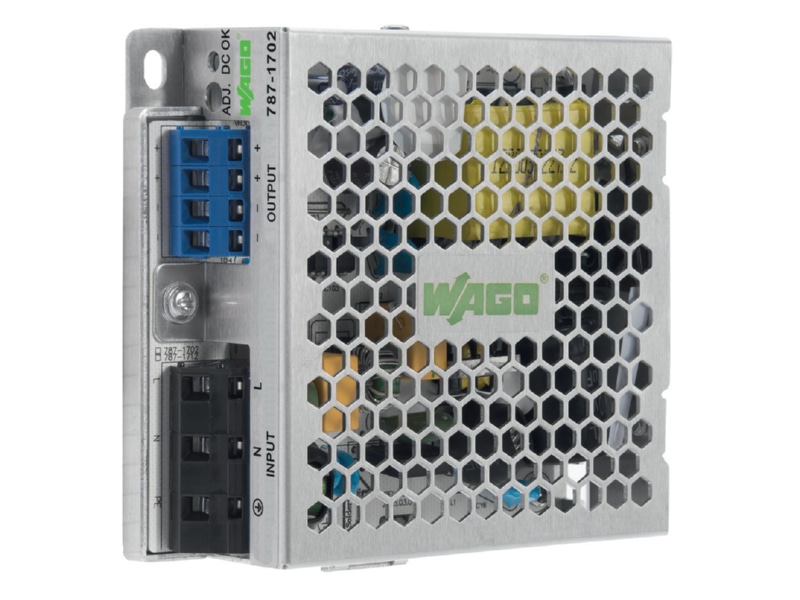

Product image WAGO 787 1702 DC power supply 85   264V 22   26V
Product image

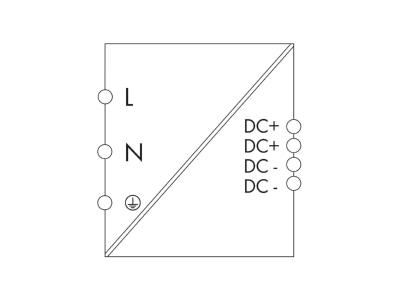

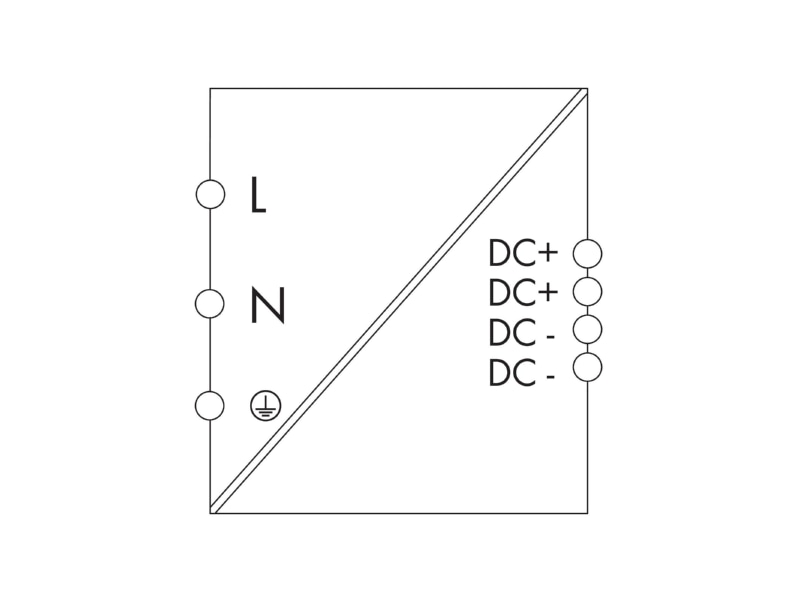

Circuit diagram WAGO 787 1702 DC power supply 85   264V 22   26V
Circuit diagram
