DC-power supply 340...550V/39...53V 787-845
Source photo:
WAGO
(fig. might be different or similar)

DC-power supply 340...550V/39...53V 787-845

EAN/GTIN: 4050821226437
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 787-845
Customs tariff no.: 85044083
Similar top items: Show now & compare
519,36 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Voltage type of supply voltage=AC/DC, 1st secondary output voltage=39..53 V, Max. output current 1=10 A, Secondary voltage adjustable=yes, Nominal value output voltage 1=48 V, Nominal value output current 1=10 A, Short-circuit-proof=yes, Rated supply voltage at AC 50 Hz=340..550 V, Rated supply voltage at AC 60 Hz=340..550 V, Rated supply voltage at DC=480..780 V, Output voltage stabilized=yes, Stabilized=yes, Type of electric connection=Spring clamp connection, Rail mounting possible=yes, Wall mounting possible=no, Modular version=no, Width in number of modular spacings=5, Direct mounting possible=no, Width=77 mm, Height=171 mm, Depth=179 mm, Suitable for safety functions=no, Degree of protection (IP)=IP20

More product images:

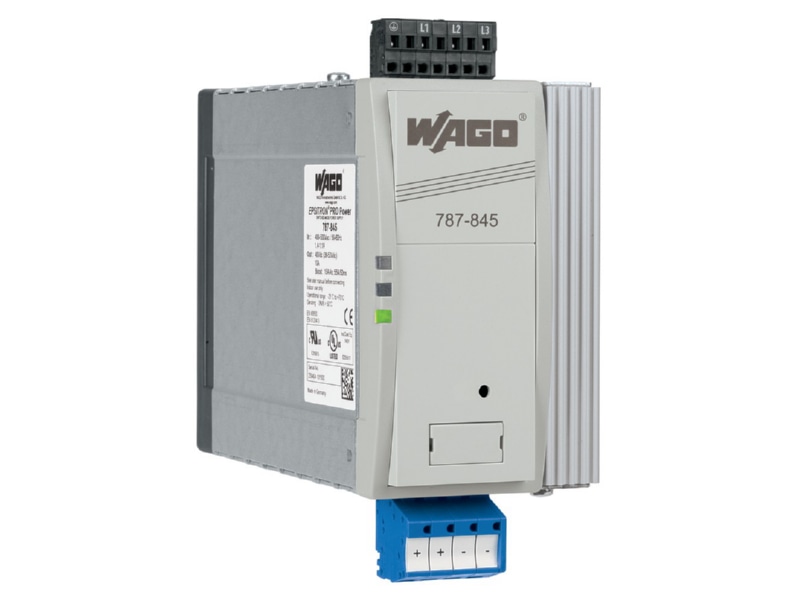

Product image WAGO 787 845 DC power supply 340   550V 39   53V
Product image

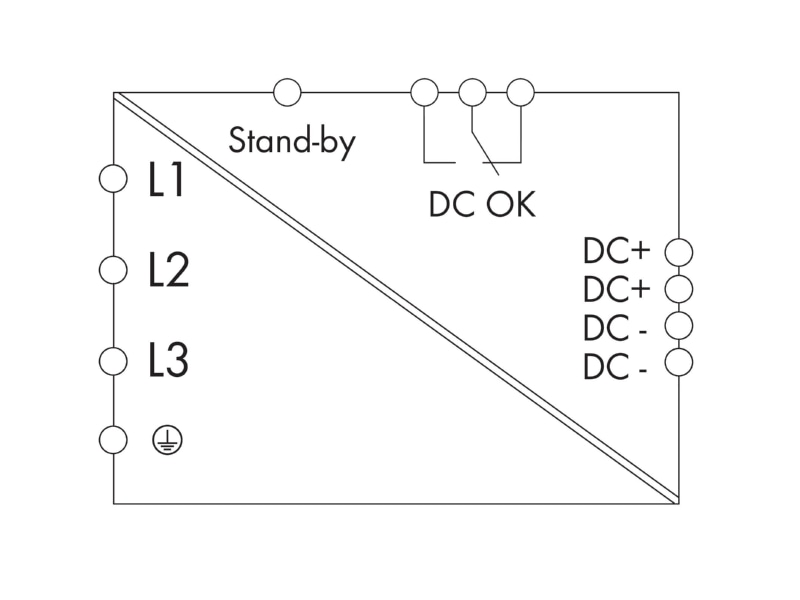

Circuit diagram WAGO 787 845 DC power supply 340   550V 39   53V
Circuit diagram
