Magnet safety proximity switch BIMUNRAP6X0,3PSG3M
Source photo:
Turck
(fig. might be different or similar)

Magnet safety proximity switch BIMUNRAP6X0,3PSG3M

EAN/GTIN: 4047101195934
WEEE: DE 71889523
Manufacturer: Turck
Manufacturer no.: BIMUNRAP6X0,3PSG3M
Manufact.-SKU: 4685832
Customs tariff no.: 85365019
Similar top items: Show now & compare
90,87 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Magnet safety proximity switch Type of actuation Magnet, Type of electric connection Cable with connector, Type of switching output PNP, Width sensor 2,9mm, Height of sensor 4,6mm, Length of sensor 18mm, Construction type housing Cuboid, Material housing Plastic, Coating housing Uncoated, Max. output current at protected output 100mA, Ambient temperature -25 ... 70°C, Rated supply voltage at DC 11 ... 30V, Voltage type DC, Cross-/short circuit identification possible, Degree of protection (IP) IP67

More product images:

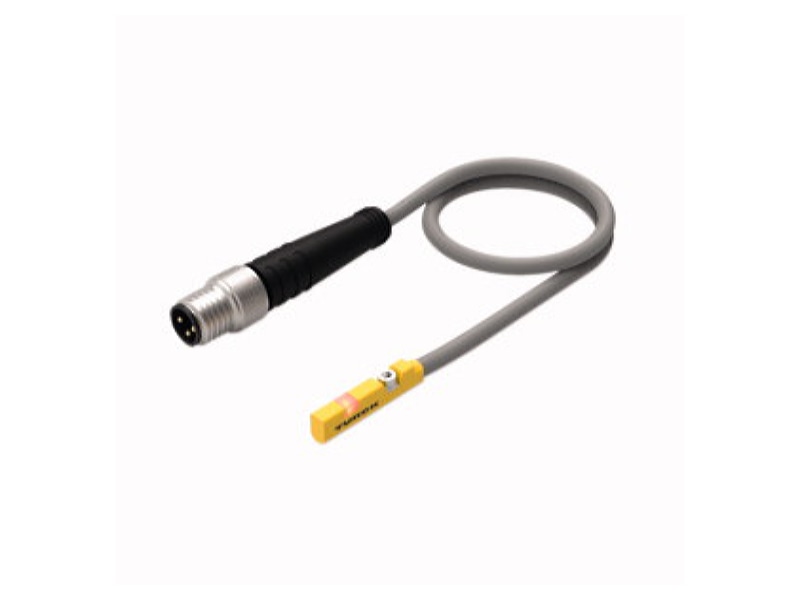

Product image Turck BIMUNRAP6X0 3PSG3M Magnet safety proximity switch
Product image

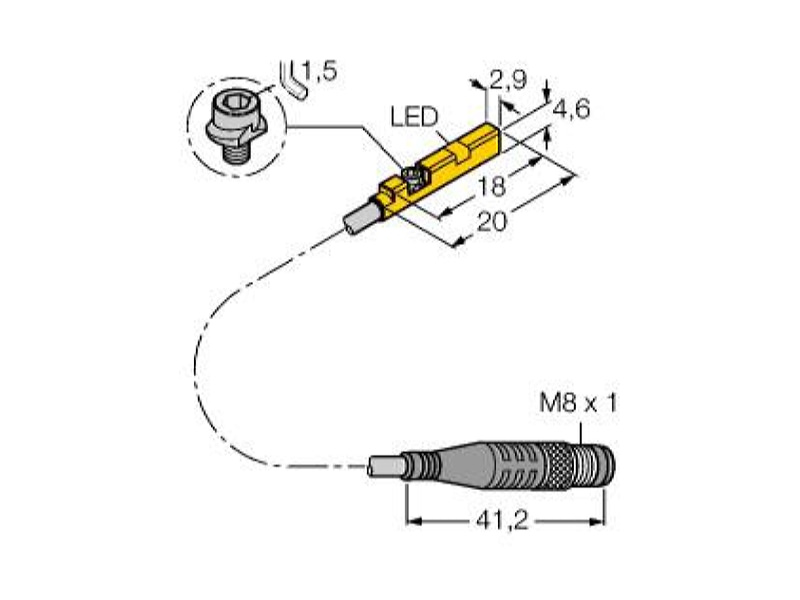

Dimensional drawing Turck BIMUNRAP6X0 3PSG3M Magnet safety proximity switch
Dimensional drawing
