Light curtain 7m SLPP25-1250P88
Source photo:
Turck
(fig. might be different or similar)

Light curtain 7m SLPP25-1250P88

EAN/GTIN: 0662488837433
WEEE: DE 71889523
Manufacturer: Turck
Manufacturer no.: SLPP25-1250P88
Manufact.-SKU: 3083743
Customs tariff no.: 85365019
Similar top items: Show now & compare
5.715,53 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Light curtain 7m Number of protected semiconductor outputs 2, Fade-out possible, Type of switching output of the OSSD PNP, Type of electric connection Connector M12, Width sensor 28mm, Height of sensor 1248mm, Length of sensor 26mm, Scope of delivery of the one-way system Transmitter and receiver, Max. output current at protected output 0,5mA, Ambient temperature 0 ... 55°C, Response time 31,5ms, Resolution of the light curtain 25mm, Transmission range of the safety field 7m, Safety field height 1250mm, Wavelength of the sensor 850nm, With restart blockage, Suitable for safety functions

More product images:

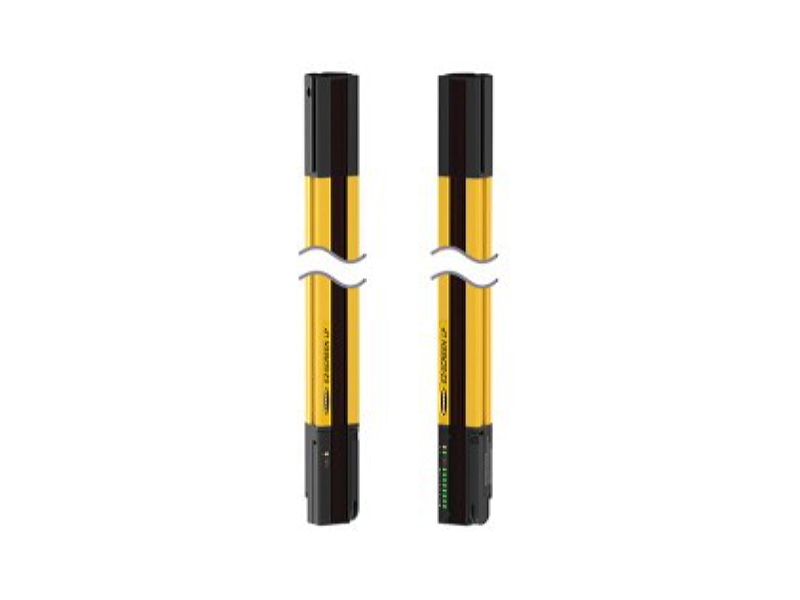

Product image Turck SLPP25 1250P88 Light curtain 7m
Product image

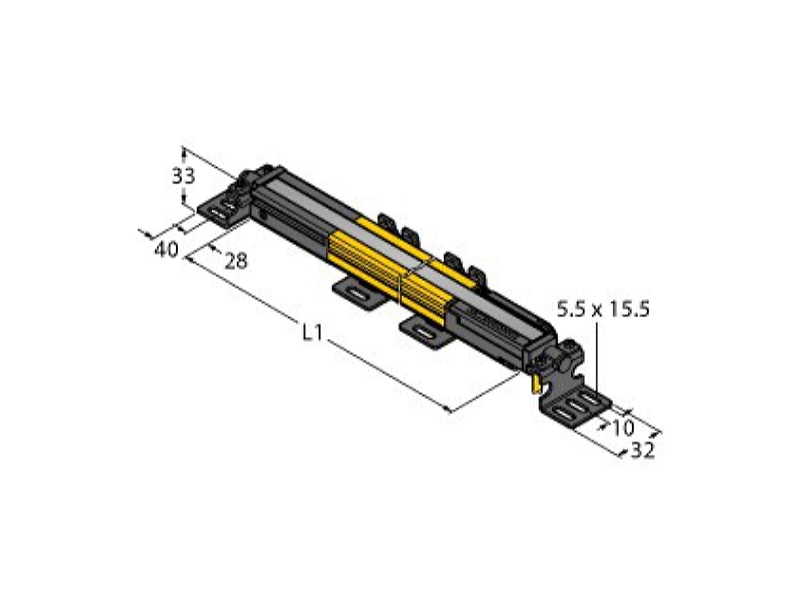

Dimensional drawing Turck SLPP25 1250P88 Light curtain 7m
Dimensional drawing
