Modular connector 100039918

EAN/GTIN: 4018359653644
WEEE: DE 76541091
Manufacturer: Telegärtner
Manufacturer no.: 100039918
Customs tariff no.: 85366990
Order level:
(minimum)
10 pce
Similar top items: Show now & compare
141,00 EUR Price incl. tax. 19,00%
(for 10 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 10 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connector RJ45 MFP8-SL T568B C6A 100039918 Shielded, special tools required, Suitable for round cables, Suitable for stranded conductors, Suitable for solid conductors, Performance features: pre-assembled protective cap, robust die-cast zinc housing, 360° shielding, fully automatic shielding between the wire pairs, 3-stage cable support (cable diameter 5 .0 to 9.0 mm), can be assembled in 60 seconds and without special tools, optimized for field use, even under difficult conditions, reliable transmission even in the event of external interference, 4-chamber wire manager (available with color coding T568A or T568B and PROFINET) , suitable for cabling in office buildings, data centers, industrial plants and home networks, highest reliability, ideal for repairing and expanding networks, penetration contacts suitable for solid conductors and stranded conductors Notes: AWG26/1-AWG24/1, AWG27/7-AWG24/7 with Pre-assembled protective cap Fire protection class: Not relevant Burning dripping: Not relevant Smoke development: Not relevant Acid development: Not relevant Short name: MFP8-SL T568 B Cat.6A (ISO/IEC)

More product images:

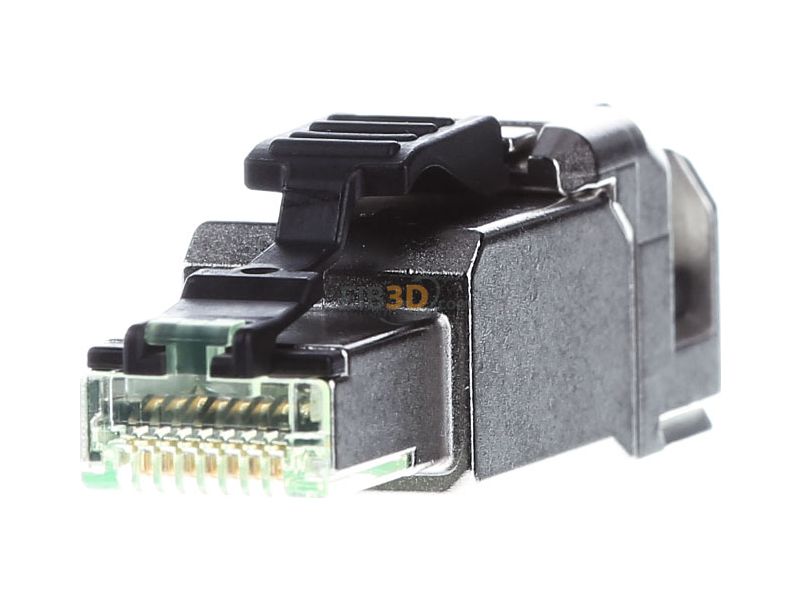

Front view Telegärtner 100039918 Modular connector
Front view

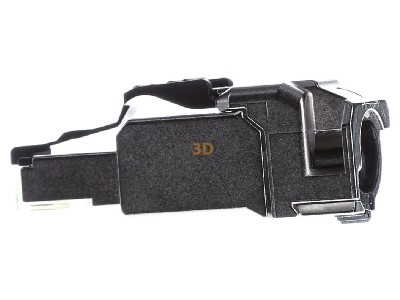

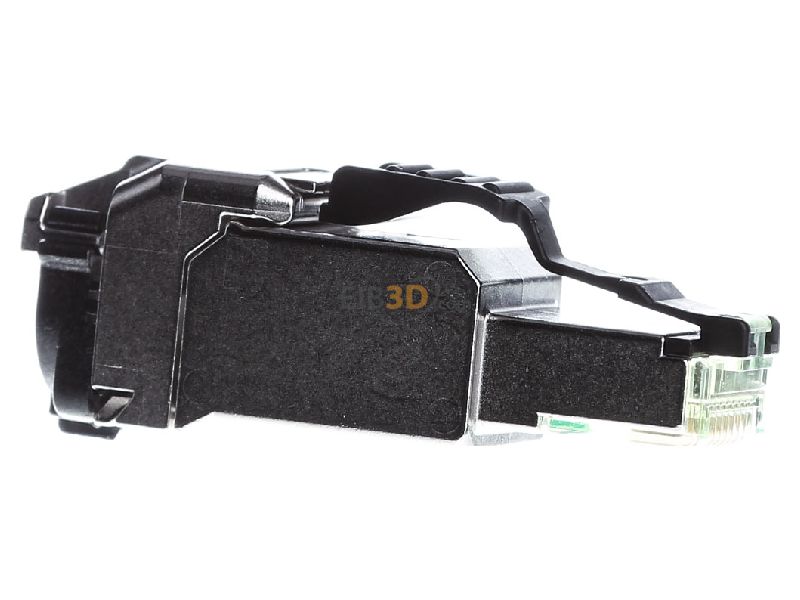

View on the left Telegärtner 100039918 Modular connector
View on the left

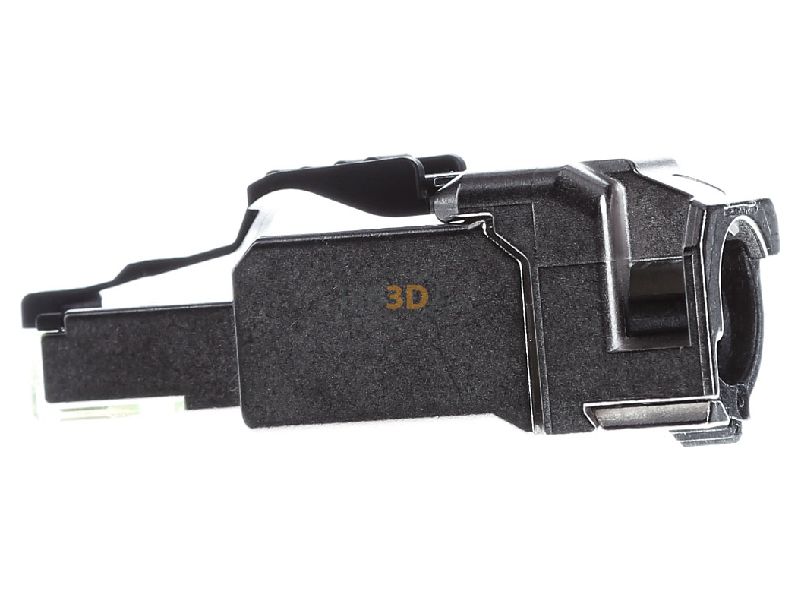

View on the right Telegärtner 100039918 Modular connector
View on the right

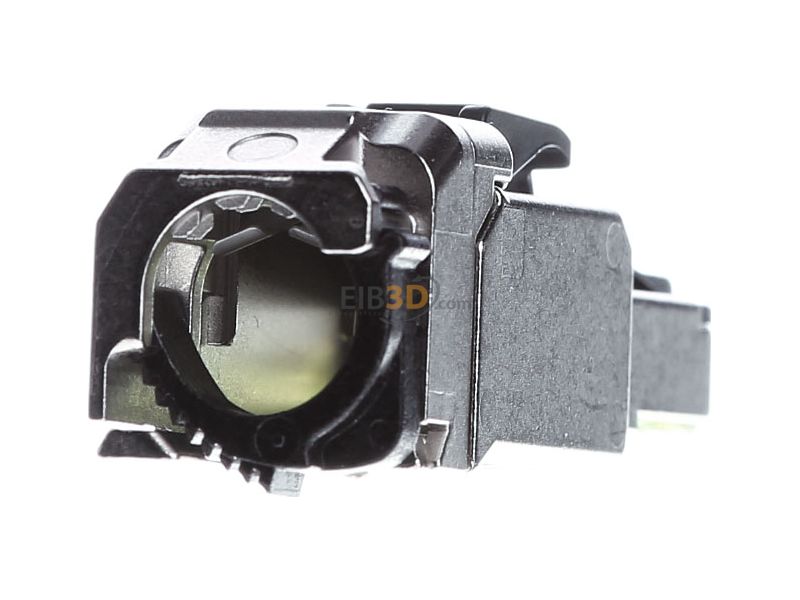

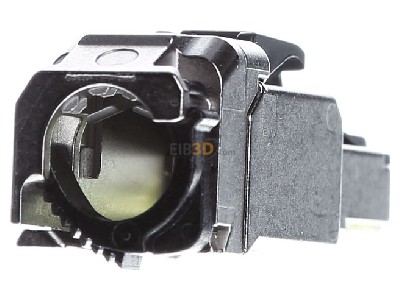

Back view Telegärtner 100039918 Modular connector
Back view

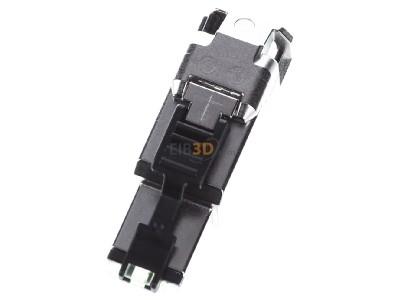

View up front Telegärtner 100039918 Modular connector
View up front

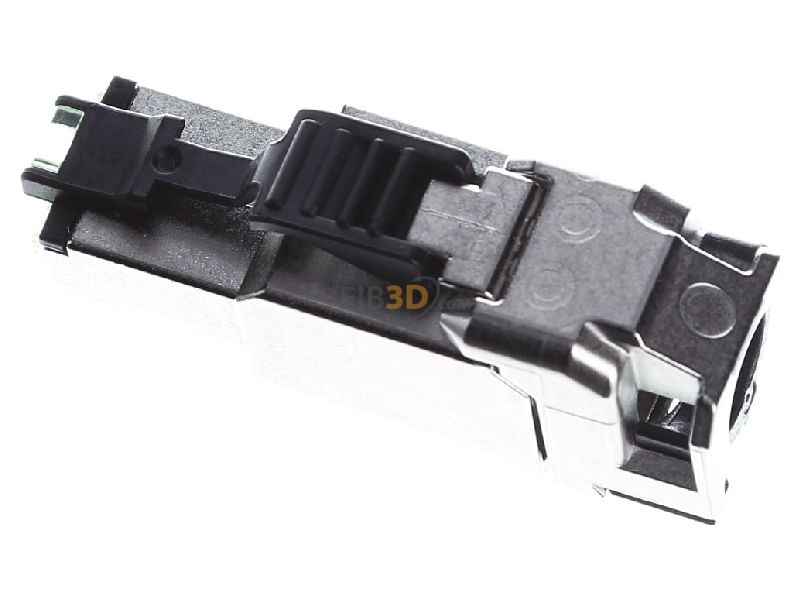

View top left Telegärtner 100039918 Modular connector
View top left

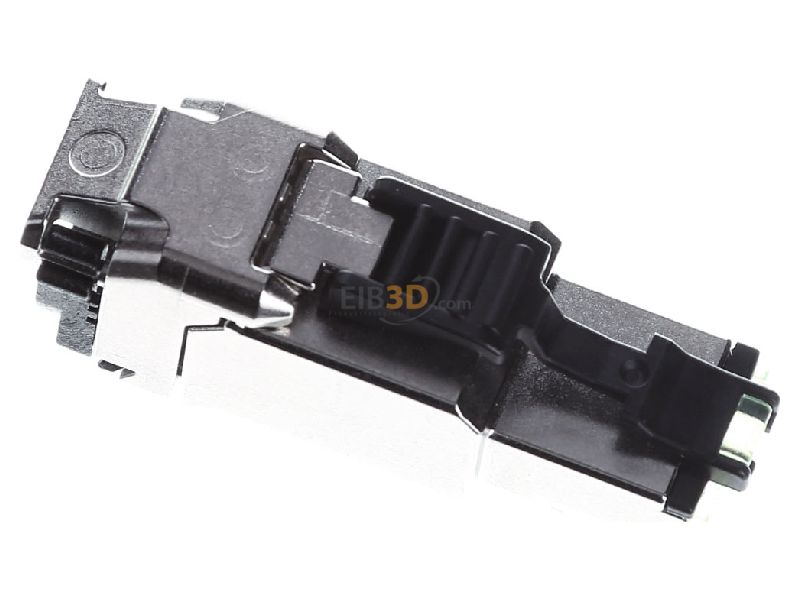

View top right Telegärtner 100039918 Modular connector
View top right

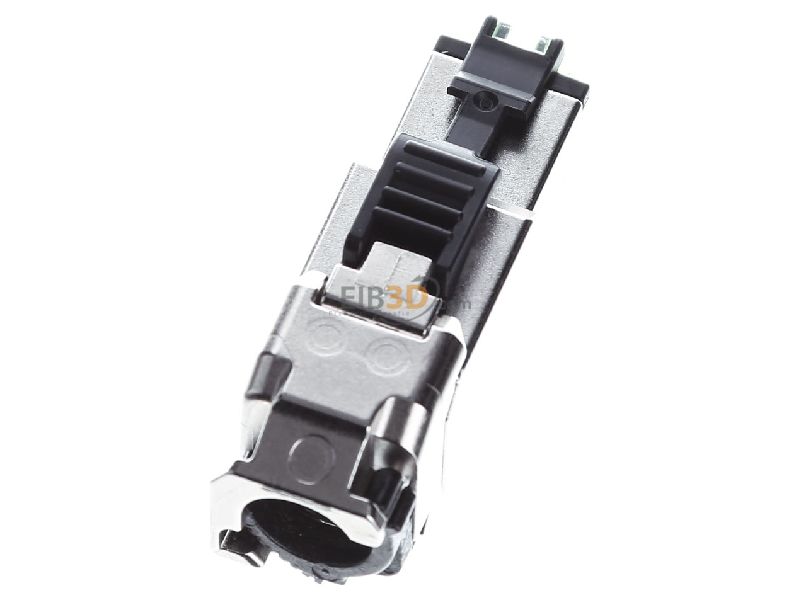

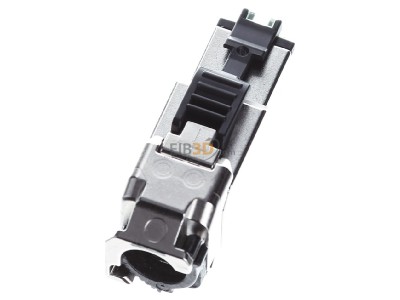

Top rear view Telegärtner 100039918 Modular connector
Top rear view
Product image Telegaertner 100039918 Modular connector
Product image
Dimensional drawing 1 Telegaertner 100039918 Modular connector
Dimensional drawing 1
Dimensional drawing 2 Telegaertner 100039918 Modular connector
Dimensional drawing 2
Dimensional drawing 3 Telegaertner 100039918 Modular connector
Dimensional drawing 3
