Downlight/spot/floodlight theLeda B20L WH
Source photo:
THEBEN
(fig. might be different or similar)

Downlight/spot/floodlight theLeda B20L WH

EAN/GTIN: 4003468101414
WEEE: DE 48221059
Manufacturer: THEBEN
Manufacturer no.: theLeda B20L WH
Manufact.-SKU: 1020683
Customs tariff no.: 94054210
Similar top items: Show now & compare
62,45 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Downlight/spot/floodlight Energy efficiency class of the built-in lamp A++, A+, A (LED), Energy efficiency class spectrum A++ to E, Suitable for surface mounting, Suitable for wall mounting, Adjustability Rotating and swivelling, Lamp type LED not exchangeable, With light source, Lamp holder None, Material housing Plastic, Surface protection Varnished / enamel painted, Colour housing White, Material cover Plastic, transparent, Voltage type AC, Nominal voltage 230 ... 230V, LED nominal current at constant current 0 ... 10mA, Type of control gear Not required, Control gear included, No dim function, Reflector High-gloss, Light distributor Reflector, Light sharing Symmetric, Beam angle Wide beam 41-80°, Light outlet Direct, Power supply energy efficiency index (EEI) Other, Total harmonic distortion 27, Rated life time L80/B50 at 25 °C 60000h, Degree of protection (IP) IP65, Degree of protection (NEMA) 4, Impact strength IK04, Protection class I, Rated ambient temperature acc. IEC62722-2-1 -20 ... 40°C, Max. system power 20W, Colour of light White, Colour temperature 5000 ... 5000K, Colour rendering index CRI 80-89, Luminous flux 1500 ... 1500lm, Rated luminous flux acc. IEC 62722-2-1 1500lm, Luminous efficacy 69lm/W, Power factor 0,95, Width 200mm, Height/depth 48mm, Length 137mm, Type of wiring Ending, Number of poles 4, Conductor cross section 2,5mm², Connectable conductor cross section 0 ... 2,5mm², Connection type Screwed terminal, Luminaire efficacy 69lm/W, Filament test according to IEC 60695-2-11 650 °C - 30 s, Photobiological safety according to EN 62471 RG0, Colour consistency (McAdam ellipse) SDCM6

More product images:

Product image Theben theLeda B20L WH Downlight spot floodlight
Product image

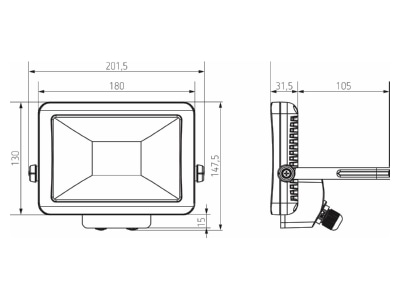

Dimensional drawing Theben theLeda B20L WH Downlight spot floodlight
Dimensional drawing
