Movement sensor 5m IS 3360-R PF AP WS
Source photo:
Steinel
(fig. might be different or similar)

Movement sensor 5m IS 3360-R PF AP WS

EAN/GTIN: 4007841033477
WEEE: DE 39896667
Manufacturer: Steinel
Manufacturer no.: IS 3360-R PF AP WS
Manufact.-SKU: 033477
Customs tariff no.: 85365080
Similar top items: Show now & compare
132,44 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor 5m Model Movement sensor, Sensor type Passive infrared, HVAC-control, Forced switch on, Forced switch off, Creep-under protection, Networkable, Optimum mounting height 2,8m, Max. transmission range sideways 5m, Max. presence range 3m², Max. transmission range frontally 5m, Diameter detection range on floor 40m, Remote operation, Response value luminosity adjustable, With signal unit, Teach-function for response value luminosity, Suitable for ceiling mounting, Mounting method Surface mounted (plaster), Connection type Other, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Other, Surface finishing Matt, Colour White, RAL-number (akin) 9003, Degree of protection (IP) IP54, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 240V, Min. switch-on time 5s, Max. duty cycle 15min, Switch-off delay 300s, Detection angle horizontal 360 ... 360°, Response value luminosity 2 ... 1000lx, Max. switching power 2000W, Suitable for C-load, Temperature -20 ... 50°C, Number of switching zones 1416, Max. starting current 110A, Min. starting current 0,1A, Height 65mm

More product images:

Product image Steinel IS 3360 R PF AP WS Movement sensor 5m
Product image

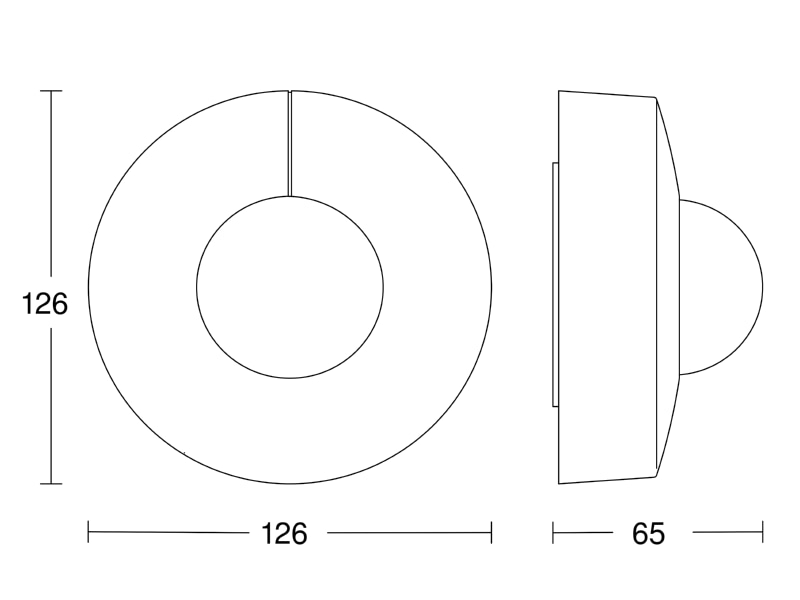

Dimensional drawing Steinel IS 3360 R PF AP WS Movement sensor 5m
Dimensional drawing
