Surface mounted terminal box 3x4mm² 136603
Source photo:
Stahl
(fig. might be different or similar)

Surface mounted terminal box 3x4mm² 136603

EAN/GTIN: 4046827081071
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 136603
Customs tariff no.: 85369095
Similar top items: Show now & compare
122,76 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Surface mounted terminal box 3x4mm² Number of connection clamps 3, Max. conductor cross section 2,5mm², Length 112,5mm, Width 112,5mm, Depth 91mm, Mounting method Surface mounted (plaster), Number of inlets 0, Type of inlet Gland nut, Material Plastic, Halogen free, Surface protection Untreated, Colour Grey, Degree of protection (IP) IP66, Degree of protection (NEMA) 4X, With cover lid, Cover attachment Screwed, Rated insulation voltage Ui 690V, Circuit integrity None, Operating temperature -60 ... 40°C, Impact strength IK10, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

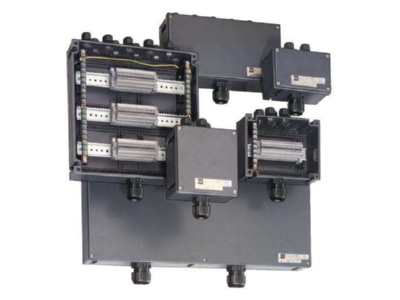

Product image Stahl 136603 Surface mounted terminal box 3x4mm
Product image
Dimensional drawing Stahl 136603 Surface mounted terminal box 3x4mm
Dimensional drawing
