Roller cam switch IP66/IP67 258220
Source photo:
Stahl
(fig. might be different or similar)

Roller cam switch IP66/IP67 258220

EAN/GTIN: 4046827071386
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 258220
Customs tariff no.: 85365080
Similar top items: Show now & compare
480,40 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Roller cam switch IP66/IP67 Width sensor 42mm, Diameter sensor 0mm, Height of sensor 45,5mm, Length of sensor 160mm, Rated operation current Ie at AC-15, 24 V 2A, Rated operation current Ie at AC-15, 125 V 2A, Rated operation current Ie at AC-15, 230 V 2A, Rated operation current Ie at DC-13, 24 V 2A, Rated operation current Ie at DC-13, 125 V 2A, Rated operation current Ie at DC-13, 230 V 2A, Switching function Slow-action switch, Forced opening, Number of safety auxiliary contacts 0, Number of contacts as normally closed contact 1, Number of contacts as normally open contact 1, Number of contacts as change-over contact 0, Type of interface None, Type of interface for safety communication None, Construction type housing Other, Material housing Plastic, Coating housing Other, Type of control element Roller cam, Alignment of the control element Other, Type of electric connection Cable entry metrical, Explosion safety category for gas ATEX gas-ex-protection, Cat. 2G, Explosion safety category for dust ATEX dust-ex-protection, Cat. 2D, Ambient temperature during operating -60 ... 60°C, Degree of protection (IP) IP66/IP67, Degree of protection (NEMA) 4X

More product images:

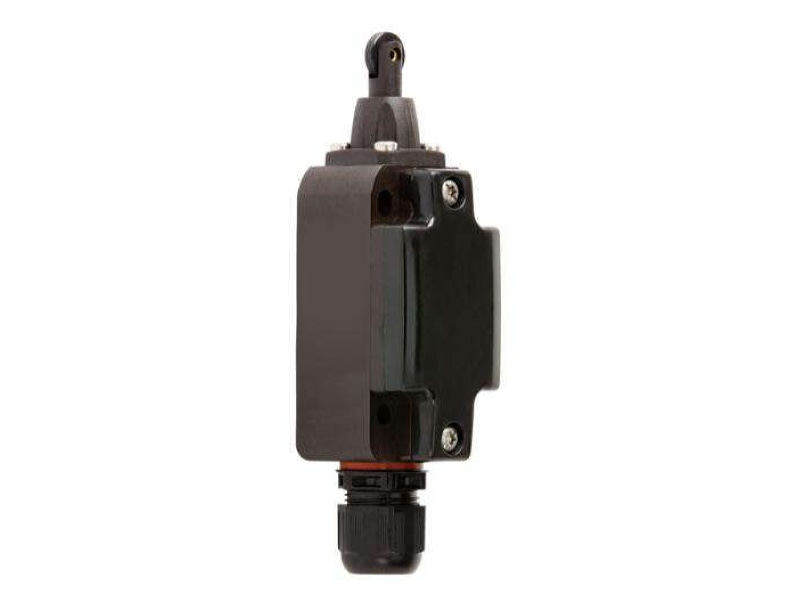

Product image Stahl 258220 Roller cam switch IP66 IP67
Product image

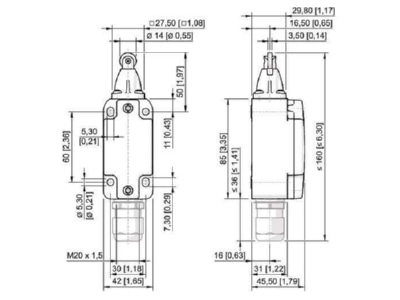

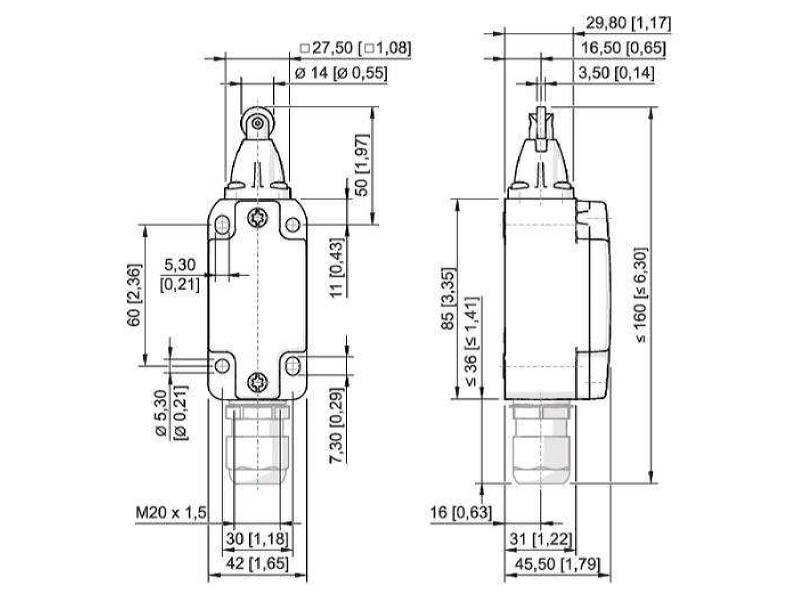

Dimensional drawing Stahl 258220 Roller cam switch IP66 IP67
Dimensional drawing
