Safety switch 3-p 0kW 81465V37-304-50-0010
Source photo:
Stahl
(fig. might be different or similar)

Safety switch 3-p 0kW 81465V37-304-50-0010

EAN/GTIN: 4046827063831
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 81465V37-304-50-0010
Manufact.-SKU: 201422
Customs tariff no.: 85371098
Similar top items: Show now & compare
590,80 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Safety switch 3-p 0kW Version as main switch, Version as maintenance-/service switch, Version as safety switch, Number of switches 1, Max. rated operation voltage Ue AC 690V, Rated operating voltage 0 ... 690V, Rated permanent current Iu 25A, Rated permanent current at AC-23, 400 V 25A, Rated permanent current at AC-21, 400 V 25A, Rated operation power at AC-3, 400 V 0kW, Rated short-time withstand current lcw 0kA, Rated operation power at AC-23, 400 V 0kW, Switching power at 400 V 0kW, Conditioned rated short-circuit current Iq 0kA, Number of poles 3, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Device construction Complete device in housing, Colour control element Grey, Type of control element Long turning handle, Interlockable, Type of electrical connection of main circuit Cable clamp, Degree of protection (IP), front side IP66, Degree of protection (NEMA) 4X

More product images:

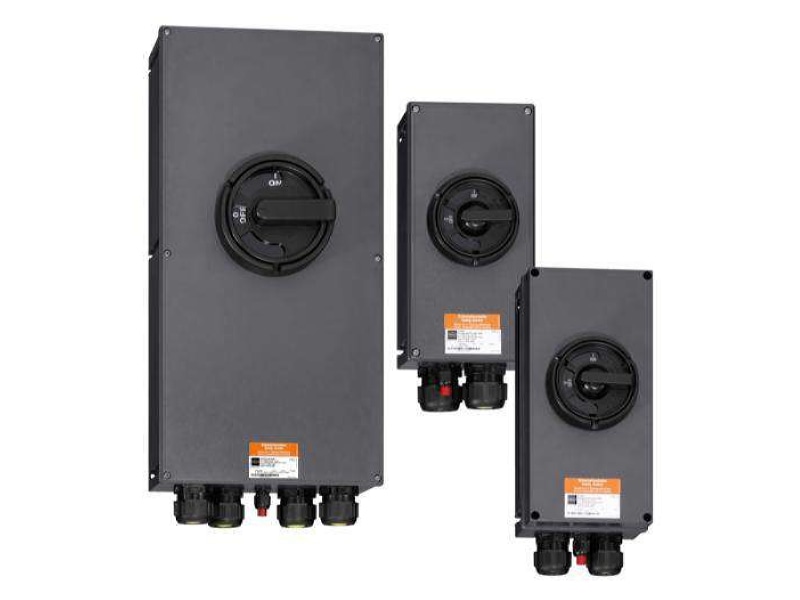

Product image Stahl 81465V37 304 50 0010 Safety switch 3 p 0kW
Product image

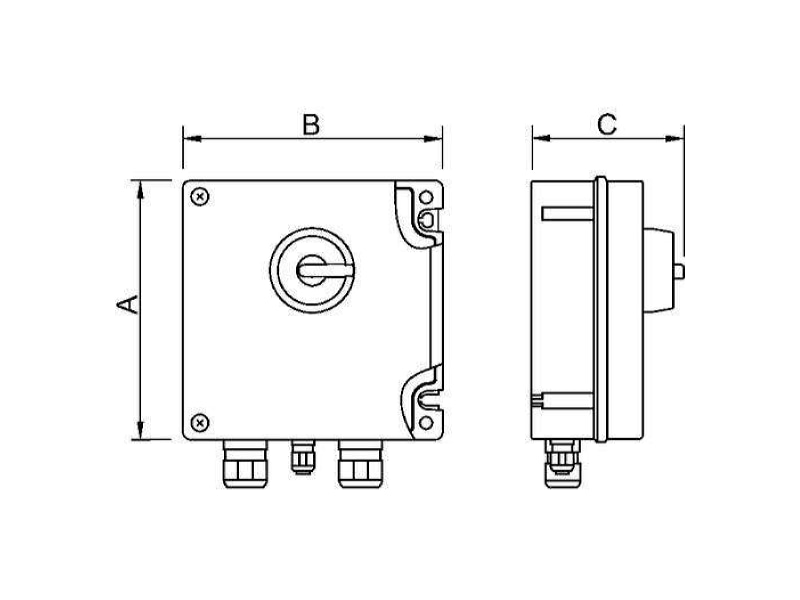

Dimensional drawing Stahl 81465V37 304 50 0010 Safety switch 3 p 0kW
Dimensional drawing
