Off-load switch 3-p 80A 205688
Source photo:
Stahl
(fig. might be different or similar)

Off-load switch 3-p 80A 205688

EAN/GTIN: 4046827078835
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 205688
Customs tariff no.: 85371098
Similar top items: Show now & compare
1.450,47 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Off-load switch 3-p 80A Model On/Off switch, Number of poles 3, With zero (off) position, Rated permanent current Iu 80A, Rated operation current Ie at AC-3, 400 V 80A, Rated operation power at AC-3, 400 V 45kW, Degree of protection (IP), front side IP66, Degree of protection (NEMA), front side 4X, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Suitable for floor mounting, Complete device in housing, Material housing Plastic, Type of control element Long turning handle, Type of electrical connection of main circuit Clamp bracket

More product images:

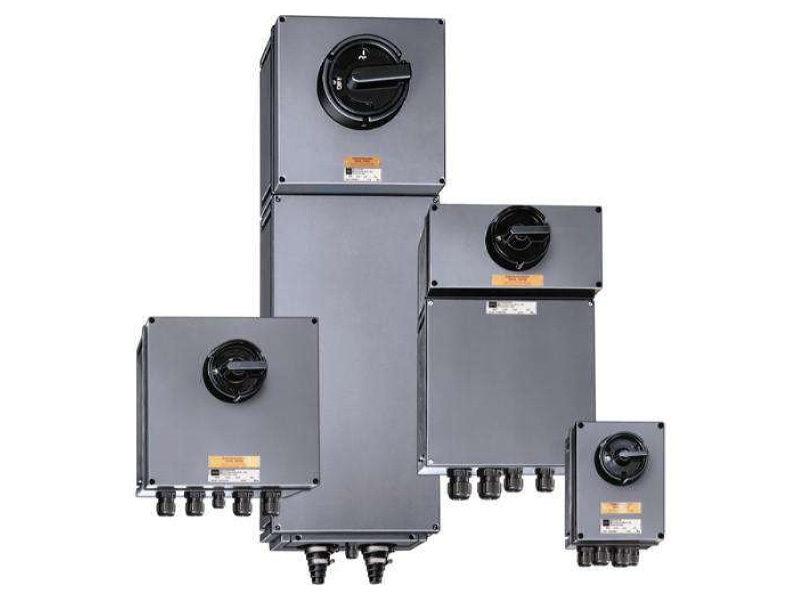

Product image Stahl 205688 Off load switch 3 p 80A
Product image

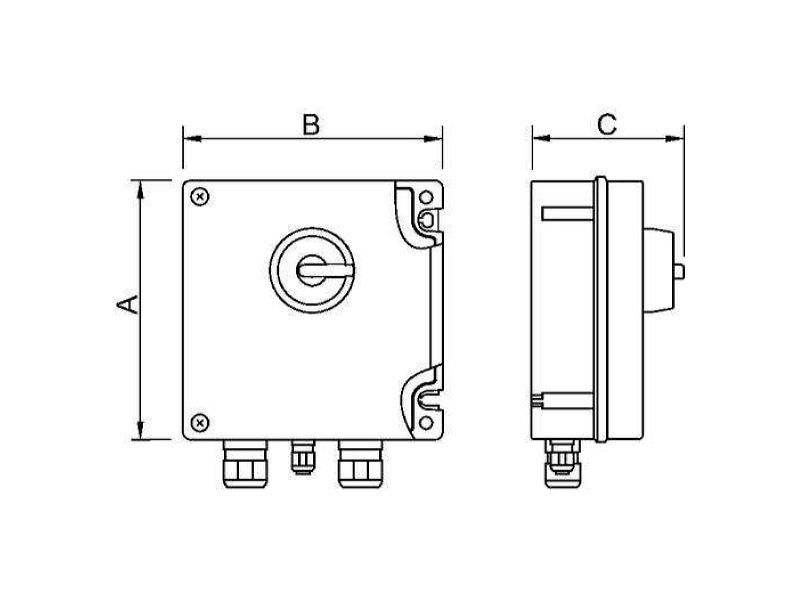

Dimensional drawing Stahl 205688 Off load switch 3 p 80A
Dimensional drawing
