Motor protection circuit-breaker 249169
Source photo:
Stahl
(fig. might be different or similar)

Motor protection circuit-breaker 249169

EAN/GTIN: 4046827073809
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 249169
Customs tariff no.: 85371098
Similar top items: Show now & compare
1.150,65 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Motor protection circuit-breaker Overload release current setting 1,6 ... 2,5A, Phase failure sensitive, Switch off technique Thermomagnetic, Rated operating voltage 0 ... 690V, Rated permanent current Iu 2,5A, Rated operation power at AC-3, 400 V 7kW, Type of electrical connection of main circuit Screw connection, Type of control element Turn button, Device construction Complete device in housing, With integrated under voltage release, Number of poles 3, Degree of protection (IP) IP66, Height 227mm, Width 112,5mm, Depth 131mm

More product images:

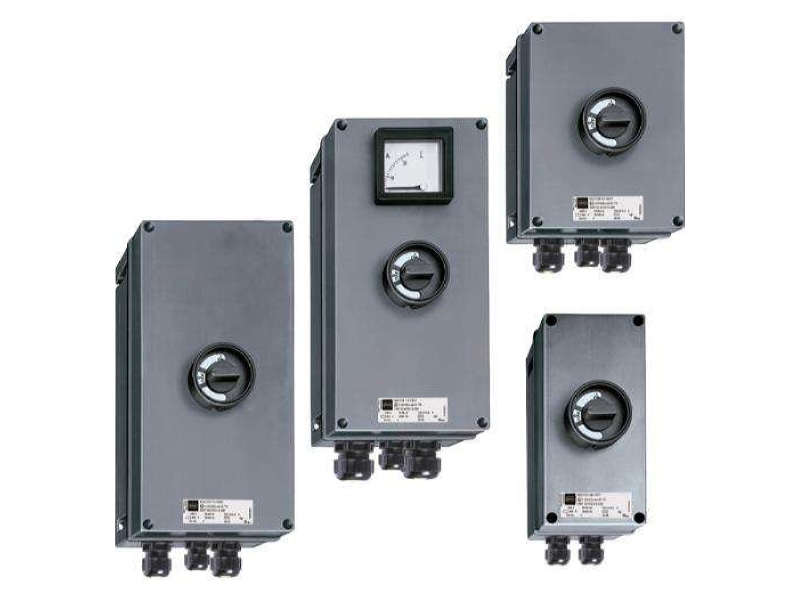

Product image Stahl 249169 Motor protection circuit breaker
Product image

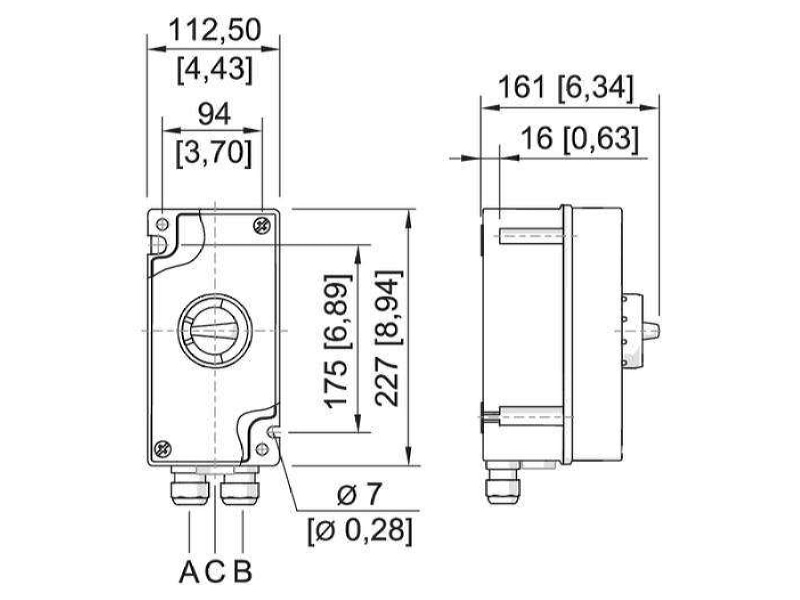

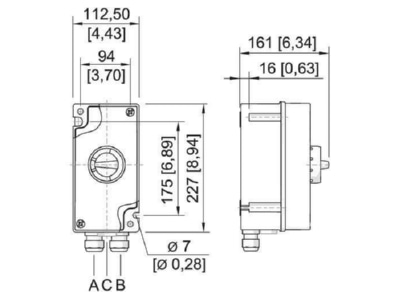

Dimensional drawing Stahl 249169 Motor protection circuit breaker
Dimensional drawing
