Flush mounted terminal box 136902
Source photo:
Stahl
(fig. might be different or similar)

Flush mounted terminal box 136902

EAN/GTIN: 4046827080777
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 136902
Customs tariff no.: 85369095
Similar top items: Show now & compare
695,56 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Flush mounted terminal box Number of connection clamps 1, Max. conductor cross section 2,5mm², Length 340,5mm, Width 681,5mm, Depth 150mm, Mounting method Surface mounted (plaster), Number of inlets 0, Type of inlet Gland nut, Material Plastic, Surface protection Untreated, Colour Grey, Degree of protection (IP) IP66, Degree of protection (NEMA) 4X, With cover lid, Cover attachment Screwed, Rated insulation voltage Ui 60V, Circuit integrity None, Operating temperature -60 ... 75°C, Impact strength IK10, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

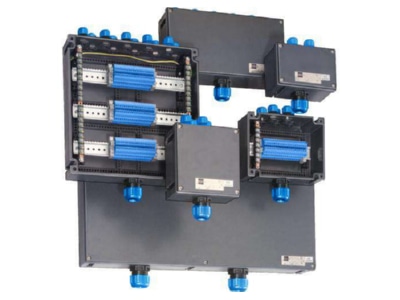

Product image Stahl 136902 Flush mounted terminal box
Product image
Dimensional drawing Stahl 136902 Flush mounted terminal box
Dimensional drawing
