Cable gland M40 8161/7-M40-2817
Source photo:
Stahl
(fig. might be different or similar)

Cable gland M40 8161/7-M40-2817

EAN/GTIN: 4046827066054
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 8161/7-M40-2817
Manufact.-SKU: 239175
Customs tariff no.: 39269097
Order level:
(minimum)
10 pce
Similar top items: Show now & compare
155,20 EUR Price incl. tax. 19,00%
(for 10 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 10 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable gland M40 Thread type Metric, Nominal thread size metric/PG 40, Pitch thread 1,5mm, Thread length 12mm, Wrench width 46mm, Hexagon angular dimension 51mm, Suitable for cable diameter 17 ... 28mm, Material Plastic, Material quality Polyamide (PA), Surface protection Untreated, Halogen free, Glass-fibre reinforced, Degree of protection (IP) IP66, Shock resistant, Colour Black, RAL-number 9004, Model Straight, Type of sealing Sealing ring, Separable screw gland, Operating temperature -40 ... 75°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

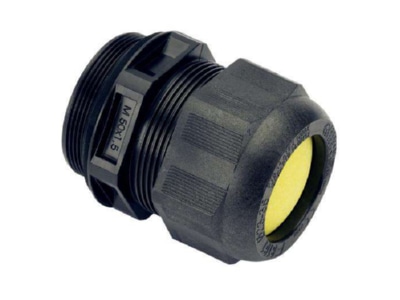

Product image Stahl 8161 7 M40 2817 Cable gland M40
Product image
Dimensional drawing Stahl 8161 7 M40 2817 Cable gland M40
Dimensional drawing
