Cable gland M25 8161/7-M25-1710
Source photo:
Stahl
(fig. might be different or similar)

Cable gland M25 8161/7-M25-1710

EAN/GTIN: 4046827066078
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 8161/7-M25-1710
Manufact.-SKU: 239173
Customs tariff no.: 39269097
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
309,50 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable gland M25 Thread type Metric, Nominal thread size metric/PG 25, Pitch thread 1,5mm, Thread length 10mm, Wrench width 29mm, Hexagon angular dimension 32mm, Suitable for cable diameter 10 ... 17mm, Material Plastic, Material quality Polyamide (PA), Surface protection Untreated, Halogen free, Glass-fibre reinforced, Degree of protection (IP) IP66, Shock resistant, Colour Black, RAL-number 9004, Model Straight, Type of sealing Sealing ring, Separable screw gland, Operating temperature -40 ... 75°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

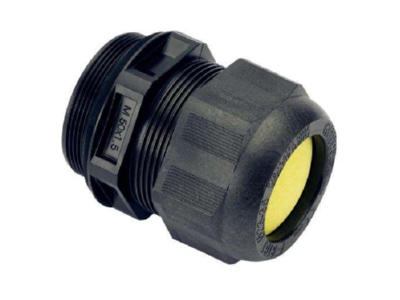

Product image Stahl 8161 7 M25 1710 Cable gland M25
Product image
Dimensional drawing Stahl 8161 7 M25 1710 Cable gland M25
Dimensional drawing
