Cable gland M20 8161/8-M20-1304
Source photo:
Stahl
(fig. might be different or similar)

Cable gland M20 8161/8-M20-1304

EAN/GTIN: 4046827064449
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 8161/8-M20-1304
Manufact.-SKU: 239164
Customs tariff no.: 39269097
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
363,00 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable gland M20 Thread type Metric, Nominal thread size metric/PG 20, Nominal thread size inch/gas pipe thread Other, Pitch thread 1,5mm, Thread length 10mm, Wrench width 24mm, Hexagon angular dimension 27mm, Suitable for cable diameter 4 ... 13mm, Material Plastic, Material quality Polyamide (PA), Surface protection Untreated, Halogen free, Glass-fibre reinforced, Degree of protection (IP) IP66, Shock resistant, Colour Blue, RAL-number 5015, Model Straight, Multi seal area, Type of sealing Sealing ring, Separable screw gland, Operating temperature -40 ... 75°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

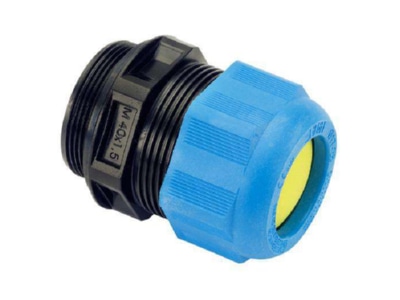

Product image Stahl 8161 8 M20 1304 Cable gland M20
Product image
Dimensional drawing Stahl 8161 8 M20 1304 Cable gland M20
Dimensional drawing
