Cable gland 8161/7-M63-4828
Source photo:
Stahl
(fig. might be different or similar)

Cable gland 8161/7-M63-4828

EAN/GTIN: 4046827064654
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 8161/7-M63-4828
Manufact.-SKU: 239161
Customs tariff no.: 39269097
Similar top items: Show now & compare
56,86 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable gland Thread type Metric, Nominal thread size metric/PG 63, Pitch thread 1,5mm, Thread length 15mm, Wrench width 68mm, Hexagon angular dimension 75mm, Suitable for cable diameter 28 ... 48mm, Material Plastic, Material quality Polyamide (PA), Surface protection Untreated, Halogen free, Glass-fibre reinforced, Degree of protection (IP) IP66, Shock resistant, Colour Black, RAL-number 9004, Model Straight, Multi seal area, Type of sealing Sealing ring, Separable screw gland, Operating temperature -40 ... 75°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

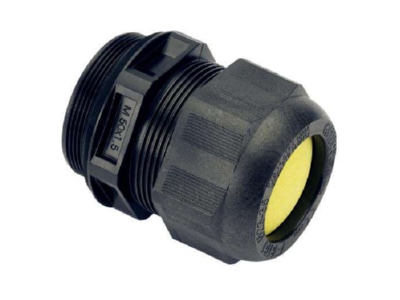

Product image Stahl 8161 7 M63 4828 Cable gland
Product image
Dimensional drawing Stahl 8161 7 M63 4828 Cable gland
Dimensional drawing
