Cable gland 265083
Source photo:
Stahl
(fig. might be different or similar)

Cable gland 265083

EAN/GTIN: 4046827082948
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 265083
Customs tariff no.: 39269097
Similar top items: Show now & compare
11,06 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Cable gland Thread type Metric, Nominal thread size metric/PG 25, Nominal thread size inch/gas pipe thread Other, Pitch thread 1,5mm, Thread length 10mm, Wrench width 29mm, Hexagon angular dimension 32mm, Suitable for cable diameter 3,2 ... 3,5mm, Material Plastic, Material quality Polyamide (PA), Surface protection Untreated, Halogen free, Glass-fibre reinforced, Degree of protection (IP) IP66, Shock resistant, Colour Black, RAL-number 9004, Model Straight, Type of sealing Sealing ring, Separable screw gland, Operating temperature -40 ... 75°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 21, 22

More product images:

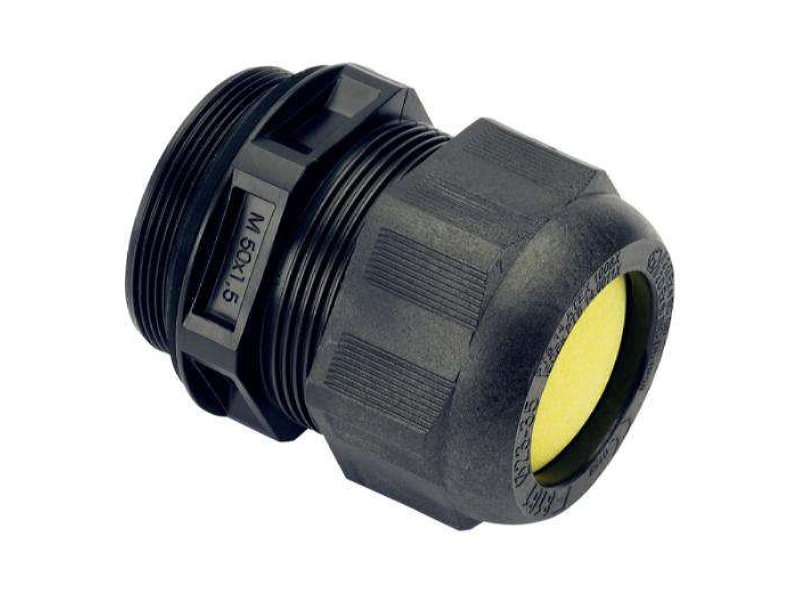

Product image Stahl 265083 Cable gland
Product image

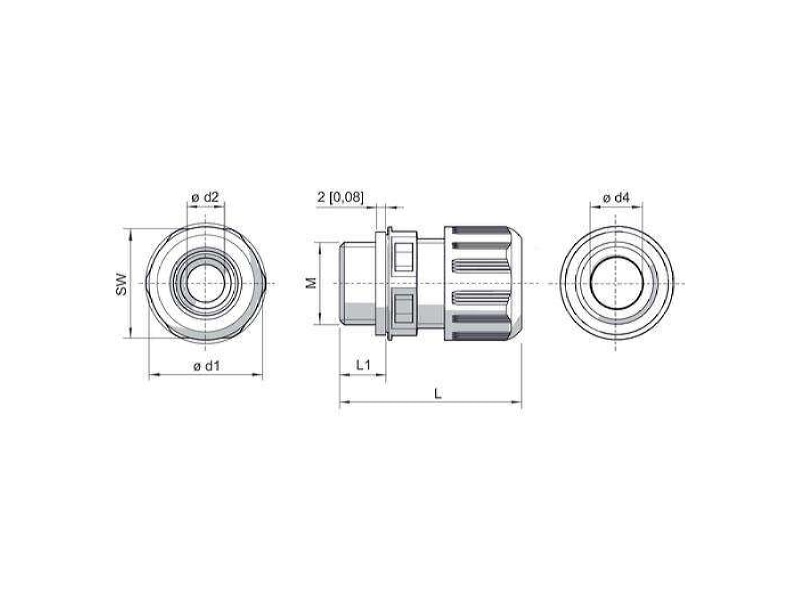

Dimensional drawing Stahl 265083 Cable gland
Dimensional drawing
