Cable gland 246395
Source photo:
Stahl
(fig. might be different or similar)

Cable gland 246395

EAN/GTIN: 4046827074516
WEEE: DE 52376448
Manufacturer: Stahl
Manufacturer no.: 246395
Customs tariff no.: 85369010
Similar top items: Show now & compare
33,51 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable gland Thread type NPT, Nominal thread size inch/gas pipe thread 1/2 inch, Thread length 19,9mm, Wrench width 24mm, Hexagon angular dimension 26,4mm, Suitable for cable diameter 6,1 ... 13,1mm, Material Metal, Material quality Brass, Surface protection Nickel-plated, Halogen free, Degree of protection (IP) IP66, Shock resistant, Colour Other, RAL-number 9006, Model Straight, Type of sealing Sealing ring, Separable screw gland, Operating temperature -60 ... 130°C, Explosion-tested version, For Ex-zone gas 1, 2, For Ex-Zone dust 20, 21, 22, EMC-version, Screened

More product images:

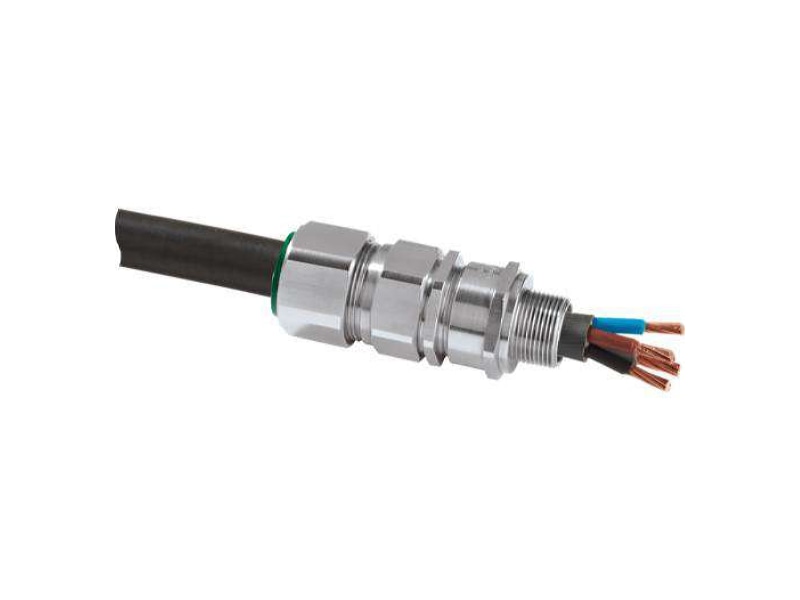

Product image Stahl 246395 Cable gland
Product image

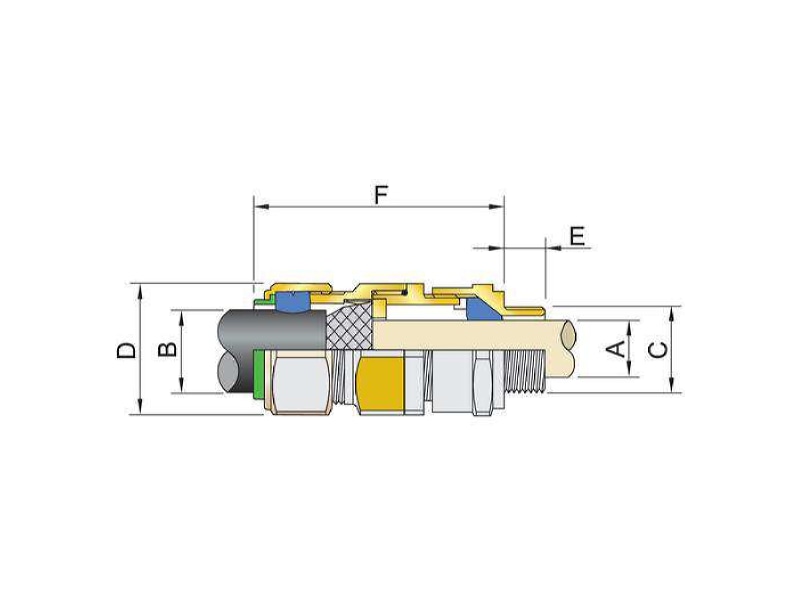

Dimensional drawing Stahl 246395 Cable gland
Dimensional drawing
